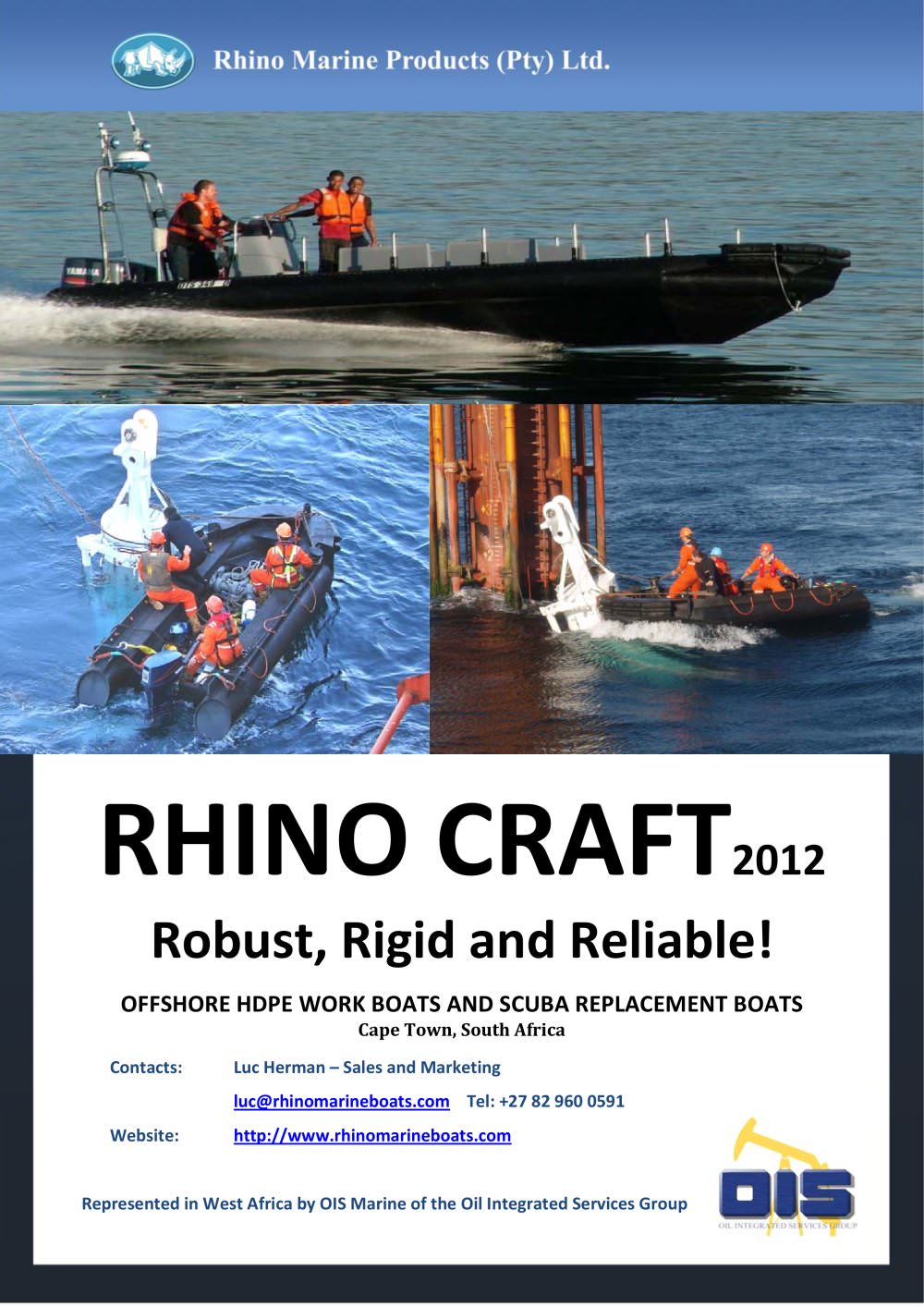

RHINO CRAFT Robust, Rigid and Reliable! OFFSHORE HDPE WORK BOATS AND SCUBA REPLACEMENT BOATS Cape Town, South Africa Contacts: Luc Herman - Sales and Marketing Website: http://www.rhinomarineboats.com Represented in West Africa by OIS Marine of the Oil Integrated Services Group

Rhino Marine Products (Pty) Ltd. RHINO CRAFT Robust, Rigid and Reliable!

Rhino Marine Products (Pty) Ltd. Rhino Craft hulls are fabricated from High Density Polyethylene (HDPE) and are designed, developed and tested to create robust and virtually indestructible workboats for use with outboard motors as well as inboard diesels with stern drives or jet drives. Over the last 8 years the hulls have been proven in harsh offshore conditions impacting with solid and floating steel structures and have a customised forepeak structure for engaging in offshore bow-catcher boat landings. The craft generally employ 15mm thick HDPE pipe sponsons which act as heavy duty...

Rhino Marine Products (Pty) Ltd. The Rhino 590 EHD is a heavy duty workboat designed for offshore bow-catcher structures. The forepeak structure is a separate structure developed for extreme abuse without compromising the hull. The craft can be loaded into a standard 6-meter container, and can be fitted with either single or twin outboard motors. Craft can be supplied bare, to receive a tiller operated motor, or fitted with a console and skippers seat arrangement. An inboard diesel motor can be fitted if required, but our longer versions are recommended for these applications. General...

Rhino Marine Products (Pty) Ltd. The Rhino 590 GP is a recently developed general purpose work-boat which does not have sponsons, and lacks the same degree of robustness as the EHD, but is still well suited for standard marine operations and as a personnel transfer boat. As with the EHD, it can be loaded into a standard 6-meter container and also has lifting points for use with a 3-legged webbing sling. The standard craft is designed for use with a single outboard motor, but on request we can supply a modified transom version that is suited for twin outboards. We can supply the boat either...

Rhino Marine Products (Pty) Ltd. The Rhino 690 has primarily been developed as a high-speed diesel workboat for use on offshore oil and gas installations where petrol engines are not permitted. It can also be used as a small Dive SRP boat or as a personnel transfer boat, and is suitable for certain military/navy applications. The craft's beam is selected such that it can be transported in a standard 12m container with side fenders removed. The standard drive is an inboard diesel engine (recommended power range is 150 to 350 HP) matched with an UltraJet water-jet drive. As an alternative it...

Rhino Marine Products (Pty) Ltd. The Rhino 800 is an optimised extension of the 690 (narrow beam) which has been developed in conjunction with our partners Oilfield Integrated Services (OIS) who are operators in West Africa. It is a powerful high speed craft designed for heavy offshore use that can be transported in a standard 12m container. It has an easily accessible and removable fuel tank for facilitating cleaning especially for use in areas where the quality of diesel is inferior. The diesel tank capacity is 230 litres. The standard drive is a Yanmar 315 HP inboard diesel engine...

Rhino Marine Products (Pty) Ltd. The Rhino 850 is a broad-beam workboat that is well suited for use with either a single inboard diesel or with twin petrol outboards. Outboard models can be fitted into a standard 12m container whereas inboard models are normally transported on a 12m flat-rack. The 850 is suitable as a diving SRP boat, a personnel transfer boat or even as a high speed military patrol boat. The recommended power range is Standard accessories: 3-legged webbing sling arrangement; Sponson seating with up-stand gunnel; Forward chain locker; and Rubber D fenders on bow. Dimensions...

Rhino Marine Products (Pty) Ltd. The Rhino 950 is a large workboat that is ideally suited for use as a Dive SRP boat as well as a personnel transfer boat. It can be transported in a 12m flat-rack. It can be powered by twin outboard motors with console arrangement or it can be supplied with inboard diesel motor matched with water jet drive or stern drive system. We can supply the craft with a console and GRP canopy or with stainless steel portal and canvas canopy arrangement. Minimum recommended drive power 280 hp. Standard Accessories: 4-legged webbing sling arrangement for easy launch and...

Rhino Marine Products (Pty) Ltd. The Rhino 1050 is an extension of the 950 hull concept which has been initially developed for use as a Scuba Replacement (SRP) Diving boat in order to give extra deck space for SRP equipment. It is also a suitable hull for use with twin diesels and jets and as an offshore crew boat that is compatible with bow catcher boat landings. It can be transported on a 12m flat-rack. Dimensions and weights: Length 10.5 m, Beam 2.75 m. Other criteria are dependent on the configuration and powering system.

Rhino Marine Products (Pty) Ltd. SCUBA REPLACEMENT (SRP) BOATS Though the 8.5 and even the 6.9 m Rhino Craft are suitable for use as SRP boats our main SRP design is based around the 9.5 metre hull with a jet drive - as shown in the picture above. The boat is powered by a 295 HP Steyr diesel with an Ultra 305HT jet. Specs for the craft are as follows: GENERAL ACCESSORIES HDPE console with portal canopy and canvas cover. Stern deck for spare outboard and generator. 316 stainless steel accessories: forepeak step up handrail, stern railing, telescopic emergency stern ladder and removable and...

Rhino Marine Products (Pty) Ltd. CONTACT DETAILS Physical Address Montreal Drive, Airport Industria, 7490 South Africa Postal Address South Africa Company Registration Anton Wale Sales, Marketing and Business Development Brazilian Agent (Rio de Janeiro) Jaime Martinez (¡aime@walemarine.com) GENERAL SALES TERMS Our craft are generally quoted ex works Cape Town. Standard payment is 50% on order and 50% on completion. Our Rhino 590 range is usually available ex-stock. For larger craft the delivery time is about 8 weeks for boats with outboard motors and about 16 weeks for craft with inboard...
