2300 CC

Product catalog summary

Overview: The document provides detailed specifications and options for the Pro-Line 2300 CC boat, including available engine brands, standard and optional equipment, and contact information for Pro-Line Boats.

Specifications: The 2300 CC has a length of 23 feet, a beam of 8 feet 6 inches, and a draft of 17 inches. It holds 125 gallons of fuel and weighs 3,540 lbs. The cockpit area is 86 sq ft with a depth of 25 inches. The bridge clearance is 6 feet 8 inches, extending to 9 feet 8 inches with the top. The maximum horsepower is 250.

Standard Equipment: Includes an accessory buss bar, battery tray, bilge pump, stainless steel cleats, console with storage, deck hardware, integrated drink holders, premium gel coat, lockable glove box, half dive platform, electric horn, commercial-grade hull and deck laminates, rope locker, heavy-duty rub rail, aft jump seats, leaning post, hydraulic steering, ample storage, and a military-style switch panel.

Optional Equipment: Options include various battery upgrades, dimmer switch, dual battery system, hour and trim meters, hull lettering and graphics, cockpit courtesy lights, commissioning kit, fire extinguisher, flood lights, light bar, strobe lights, raw water washdown, siren, spotlight, shipping cradle, shrinkwrap, trailer options, bow rail, dive door, fuel/water separator, hull fender system, keel guard, trim tabs, porta-pottie, tilt steering, compass, Garmin electronics, VHF radio, and various covers and enclosures.

Pre-Rig/Engine Equipment: Pre-rig options are available for Evinrude, Honda, Mercury, and Suzuki engines, with various gauge and steering configurations.

Contact Information: For more information, contact Lanie Martin at Pro-Line Boats, PO Box 1348, Crystal River, FL 34423. Phone: 352-795-4111, Fax: 352-795-0853, Email: [email protected].

Catalog excerpts

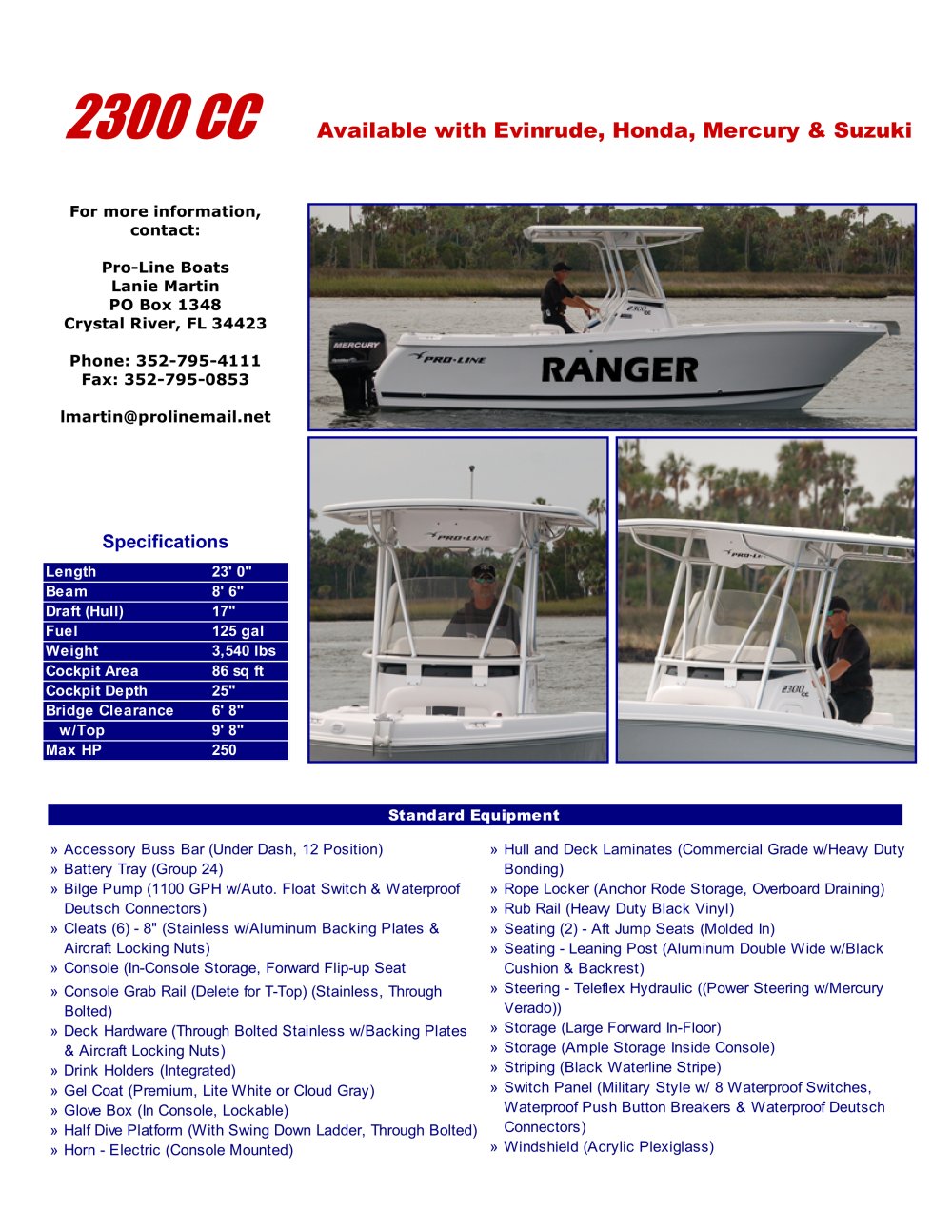

2300 CC Available with Evinrude, Honda, Mercury & Suzuki For more information, contact: Pro-Line Boats Lanie Martin PO Box 1348 Crystal River, FL 34423 Phone: 352-795-4111 Fax: 352-795-0853 [email protected] Specifications Length Beam Draft (Hull) Fuel Weight Cockpit Area Cockpit Depth Bridge Clearance w/Top Max HP 23' 0" 8' 6" 17" 125 gal 3,540 lbs 86 sq ft 25" 6' 8" 9' 8" 250 Standard Equipment » Accessory Buss Bar (Under Dash, 12 Position) » Battery Tray (Group 24) » Bilge Pump (1100 GPH w/Auto. Float Switch & Waterproof Deutsch Connectors) » Cleats (6) - 8" (Stainless w/Aluminum Backing Plates & Aircraft Locking Nuts) » Console (In-Console Storage, Forward Flip-up Seat » » » » » » » » Hull and Deck Laminates (Commercial Grade w/Heavy Duty Bonding) » Rope Locker (Anchor Rode Storage, Overboard Draining) » Rub Rail (Heavy Duty Black Vinyl) » Seating (2) - Aft Jump Seats (Molded In) » Seating - Leaning Post (Aluminum Double Wide w/Black Cushion & Backrest) » Steering - Teleflex Hydraulic ((Power Steering w/Mercury Console Grab Rail (Delete for T-Top) (Stainless, Through Verado)) Bolted) » Storage (Large Forward In-Floor) Deck Hardware (Through Bolted Stainless w/Backing Plates » Storage (Ample Storage Inside Console) & Aircraft Locking Nuts) » Striping (Black Waterline Stripe) Drink Holders (Integrated) » Switch Panel (Military Style w/ 8 Waterproof Switches, Gel Coat (Premium, Lite White or Cloud Gray) Waterproof Push Button Breakers & Waterproof Deutsch Glove Box (In Console, Lockable) Connectors) Half Dive Platform (With Swing Down Ladder, Through Bolted) » Windshield (Acrylic Plexiglass) Horn - Electric (Console Mounted)

Open the catalog to page 1

2300 CC Optional Equipment Commercial Features Pre-Rig/Engine Equip » Bow Rail - Low Split Open (Aluminum w/Black Powder Coating) » Dive Door - Poly Pull Out w/Poly Cap » Fuel/Water Separator Upgrade (Racor) » Hull Fender System - (4) Angled, Heavy Duty D-Shaped Rub Strakes (4 Per Side) » Keel Guard - Aluminum » Trim Tabs » » » » Honda Single Engine Pre-Rig (Honda Gauges) Mercury Single Engine Opti Pre-Rig (Analog Gauges) Mercury Single Engine Opti Pre-Rig (SmartCraft Gauges) Mercury Single Engine Verado Pre-Rig (SmartCraft Gauges w/Power Steering) » Suzuki Single Engine Pre-Rig (Analog Gauges)...

Open the catalog to page 2
