23 DC

1 / 3 PagesView full catalog

23 DC

Product catalog summary

Standard Equipment:

Baitwell with raw water washdown and light
Bilge pump
Stainless steel bow handrail (low profile)
Six cleats
Compass
Dual console with head and storage
Integrated dive platform with ladder
Stainless steel drink holders
Analog gauges for fuel, MPH, RPM, trim, volt (Digital for Suzuki 300)
Lockable glove box
Rigid vinyl gunnel trim with stainless steel insert
Electric horn
Porta-Potti inside port console
One pair of rod holders
Six horizontal cockpit rod racks
Rope locker storage
Bow seating
Captain's chairs
Hydraulic steering
Floor storage
Black or blue striping
Switch and breaker panel
Transom door
Tempered glass windshield with pass-thru and curtain

Specifications:

Length: 23' 0"
Beam: 8' 6"
Draft (Hull): 17"
Deadrise: 20 degrees
Fuel Capacity: 125 gallons
Hull Weight: 3,920 lbs
Trailer Weight: 5,975 lbs
Cockpit Area: 65 sq ft
Cockpit Depth: 25"
Bridge Clearance with Arch: 5' 11"
Max HP: 300
Baitwell: 18 gallons
Fishbox (2): 60 gallons
Head Headroom: 4' 0"

Optional Equipment:

Convenience Package: Anchor roller with cleat, battery switch for dual batteries, bow cushions with bolsters, cockpit shower (cold, 10 gallons), curtain package (Bimini top)
Digital gauges for BRP and Suzuki
Graphics options for hull sides and whole hull in various colors
Seating options: back-to-back, folding rear bench, lounge
Shrink wrap
Ski pylon
Tilt steering upgrade
Stereo options: AM/FM/CD with 4 speakers, XM upgrade
Top options: Arch, Bimini top
Trim tabs and indicators
12-volt receptacle
Cockpit bolsters and lights
Additional rod holders
Electronics Packages: Garmin GPSMap 440s, VHF Radio - Icom, Garmin 400C Fishfinder, Garmin GPSMap 4208, optional XM Weather, optional 1kw In-Hull Transducer

Engine Options:

All 25” shafts
200 E-Tec (200 ci)
225 E-Tec (46 - 49 MPH)
250 E-Tec
300 E-Tec
Twin 115 E-Tec
Twin 150 E-Tec
200 4-Stroke (40 - 43 MPH)
225 4-Stroke (43 - 46 MPH)
250 4-Stroke (45 - 48 MPH)
300 4-Stroke (48 - 51 MPH)
Twin 115 4-Stroke
Twin 140 4-Stroke
Twin 150 4-Stroke

Catalog excerpts

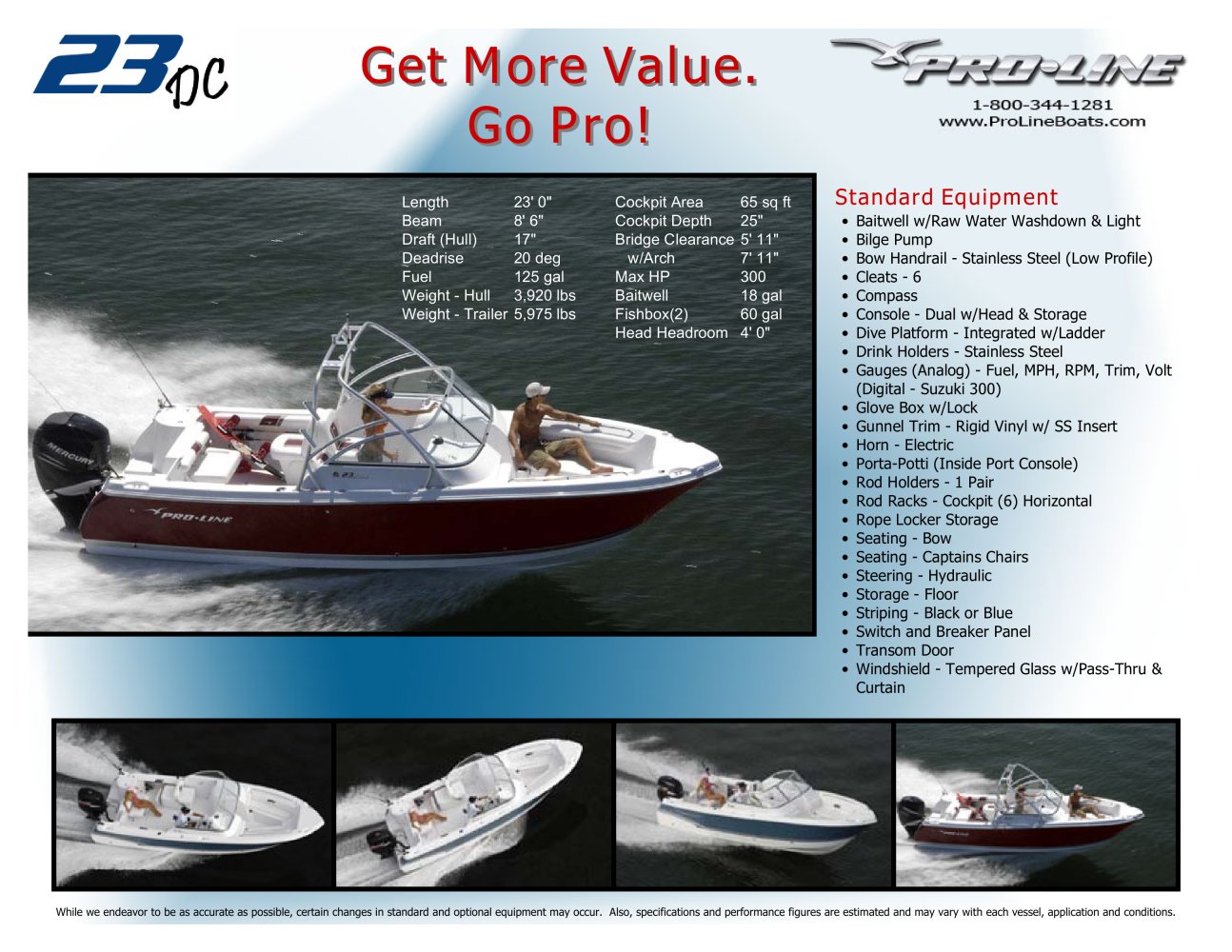

Get More Value. Go Pro! 23 DC Length Beam Draft (Hull) Deadrise Fuel Weight - Hull Weight - Trailer 23' 0" 8' 6" 17" 20 deg 125 gal 3,920 lbs 5,975 lbs Cockpit Area Cockpit Depth Bridge Clearance w/Arch Max HP Baitwell Fishbox(2) Head Headroom 65 sq ft 25" 5' 11" 7' 11" 300 18 gal 60 gal 4' 0" Standard Equipment • • • • • • • • • • • • • • • • • • • • • • • • Baitwell w/Raw Water Washdown & Light Bilge Pump Bow Handrail - Stainless Steel (Low Profile) Cleats - 6 Compass Console - Dual w/Head & Storage Dive Platform - Integrated w/Ladder Drink Holders - Stainless Steel Gauges (Analog) - Fuel, MPH, RPM, Trim, Volt (Digital - Suzuki 300) Glove Box w/Lock Gunnel Trim - Rigid Vinyl w/ SS Insert Horn - Electric Porta-Potti (Inside Port Console) Rod Holders - 1 Pair Rod Racks - Cockpit (6) Horizontal Rope Locker Storage Seating - Bow Seating - Captains Chairs Steering - Hydraulic Storage - Floor Striping - Black or Blue Switch and Breaker Panel Transom Door Windshield - Tempered Glass w/Pass-Thru & Curtain While we endeavor to be as accurate as possible, certain changes in standard and optional equipment may occur. Also, specifications and performance figures are estimated and may vary with each vessel, application and conditions.

Open the catalog to page 1

Have it All. Go Pro! Optional Equipment • • • • • • • • • • • • • • • • • • • • • Anchor Roller w/Cleat Battery Switch for Dual Batteries Bow Cushions w/Bolsters Cockpit Shower - Cold (10 gal) Curtain Package (Bimini Top) Gauges - Digital BRP Gauges - Digital Suzuki Graphics - Hull Sides - Onyx Black, Deep Blue, Shiraz, Glory Blue (w/Std or Waterline Stripe) Graphics - Whole Hull - Onyx Black, Deep Blue, Shiraz, Glory Blue (w/Waterline Stripe) Seating - Back to Back (Port and/or Starboard) Seating - Folding Rear Bench Seating - Lounge (Port and/or Starboard) Shrink Wrap Ski Pylon Steering - Tilt...

Open the catalog to page 2

Have it All. Go Pro! Engine Selections All 25” Shafts Engine Options 200 E-Tec (200 ci) 225 E-Tec 250 E-Tec 300 E-Tec Twin 115 E-Tec Twin 150 E-Tec 200 4-Stroke 225 4-Stroke 250 4-Stroke 300 4-Stroke Twin 115 4-Stroke Twin 140 4-Stroke Twin 150 4-Stroke Graphic Selections MPH Standard Flare Stripe Approx 46 - 49 Black 40 - 43 43 - 46 45 - 48 48 - 51 Blue Standard Waterline Stripe Black Blue Optional Flare Stripe with Hull Side Color Optional Waterline Stripe with Hull Side Color Optional Waterline Stripe with Whole Hull Color While we endeavor to be as accurate as possible, certain changes in...

Open the catalog to page 3
