23 BAY

Product catalog summary

Specifications:

Length: 23' 0"
Beam: 8' 6"
Draft (Hull): 11"
Deadrise: 15 degrees
Fuel Capacity: 80 gallons
Weight - Hull: 3,450 lbs
Weight - Trailer: 4,705 lbs
Cockpit Area: 85 sq ft
Cockpit Depth: 20"
Bridge Clearance w/Top: 5' 0"
Max HP: 300
Baitwell - Port Aft: 38 gallons
Fishbox: 98 gallons

Standard Equipment:

12-Volt Receptacle
Baitwell with Raw Water Washdown & Light (Port Aft)
Bilge Pump
Boarding Ladder
Center Console with Storage
Cleats - 5
Cockpit Lights
Compass
Drink Holders - Stainless Steel
Gauges (Analog) - Fuel, MPH, RPM, Trim, Volt (Digital - Suzuki 300)
Grab Rail (Stainless Steel) - Windshield
Gunnel Trim - Rigid Vinyl with SS Insert
Horn - Electric
Pull Wire for Trolling Motor
Rod Holders (6) - Vertical
Rod Holders - 1 Pair
Rod Storage (Lockable) - Port
Rope Locker Storage
Seating - Forward Console with Cushion & Storage
Seating - Leaning Post with Backrest & Cooler
Steering - Hydraulic
Striping - Black or Blue
Switch and Breaker Panel
Windshield

Optional Equipment:

Baitwell (10 gal) - Console (Plumbed from Port Aft)
Baitwell (38 gal) & Light - Starboard Aft
Battery Charger - 2 Bank
Battery Charger - 3 Bank
Battery Switch - On/Off
Battery Switch for Dual Batteries
Casting Platform
Gauges - Digital BRP
Gauges - Digital Suzuki
Graphics - Hull Sides - Onyx Black, Deep Blue, Shiraz, Glory Blue (with Waterline Stripe)
Graphics - Whole Hull - Onyx Black, Deep Blue, Shiraz, Glory Blue (with Waterline Stripe)
Jack Plate - Hydraulic
Lights - Spreader (Requires T-Top)
Power Pole (Requires Jack Plate)
Recirculating Baitwell Timer
Rod Holders - 1 Pair
Rod Storage (Lockable) - Starboard
Seating - Aluminum Leaning Post with Rod Holders, Storage & Cooler
Seating - Rear Transom
Seating - Removable Casting Deck - Forward or Aft
Shrink Wrap
Steering - Power Assist
Steering - Tilt Upgrade
Stereo - AM/FM/CD with 4 Speakers
Stereo - XM Upgrade
Top - Bimini Top
Top - T-Top (Canvas)
Garmin GPSMap 440s
VHF Radio - Icom

Electronics Packages:

Package 1: Garmin 400C Fishfinder, Garmin GPSMap 440, VHF Radio - Icom
Package 2: Garmin GPSMap 4208, VHF Radio - Icom, Optional XM Weather
Package 3: Includes features from Package 1 with additional options

Tournament Package:

Baitwell (10 gal) - Console (Plumbed from Port Aft)
Baitwell (38 gal) & Light - Starboard Aft
Battery Switch for Dual Batteries
Rod Holders - 1 Pair
Seating - Aluminum Leaning Post with Rod Holders, Storage & Cooler
Trim Tabs with Indicators
Trolling Motor - Great White SW109 Hand/Bow Digital 60" 36 Volt with 3 Bank Charger
Trolling Motor - Great White SW82 Hand/Bow Digital 60" 24 Volt with 2 Bank Charger
Trolling Motor Wiring with Breaker & Plug (24V or 36V)

Graphic Selections:

Standard Waterline Stripe
Optional Waterline Stripe with Whole Hull Color
Optional Waterline Stripe with Hull Side Color
Standard Flare Stripe

Engine Selections:

Engine Options: 200 E-Tec (200 ci), 225 E-Tec, 250 E-Tec, 300 E-Tec, 200 4-Stroke, 225 4-Stroke, 250 4-Stroke, 300 4-Stroke
MPH Approx: 48 - 57 depending on engine

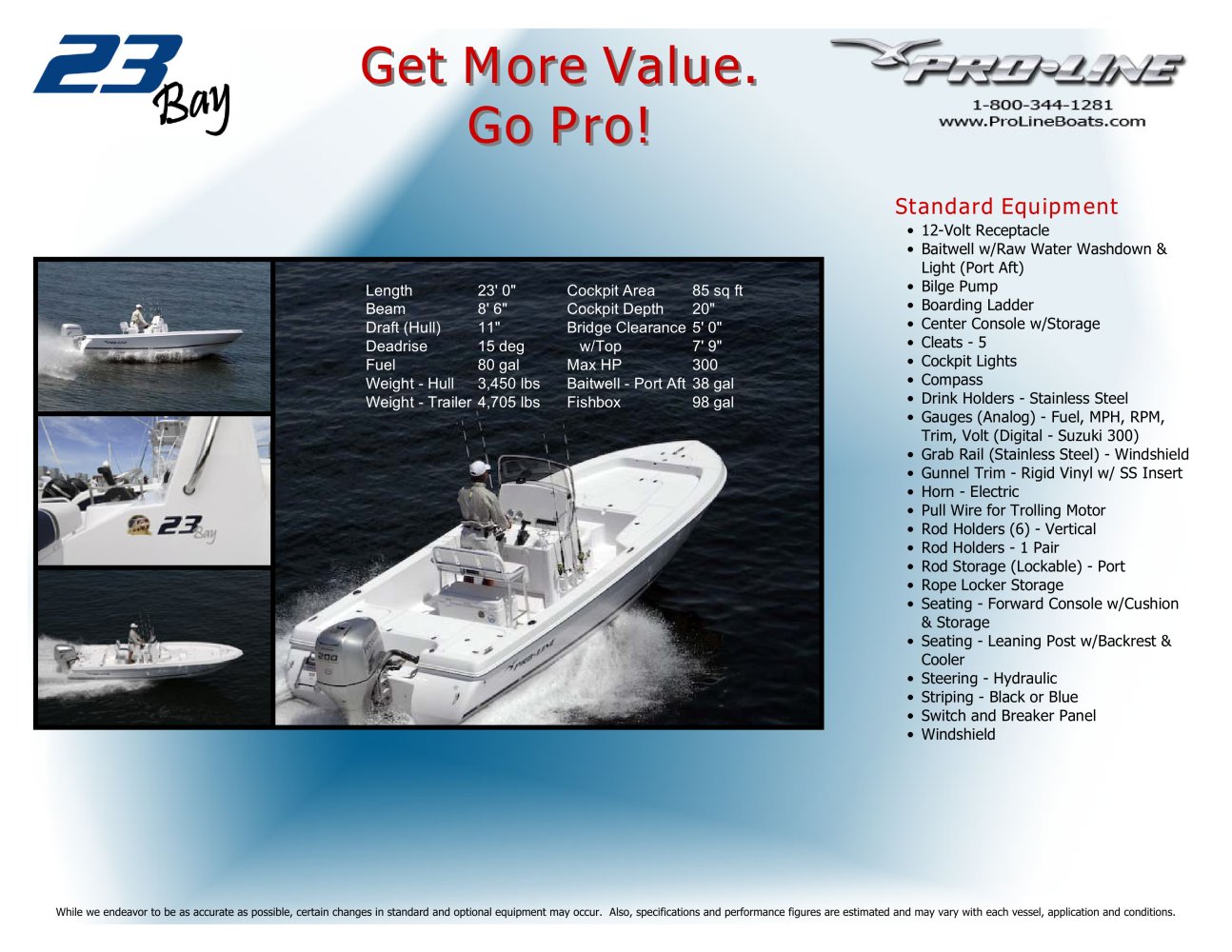

Catalog excerpts

Get More Value. Go Pro! Standard Equipment 23 Bay Length Beam Draft (Hull) Deadrise Fuel Weight - Hull Weight - Trailer 23' 0" 8' 6" 11" 15 deg 80 gal 3,450 lbs 4,705 lbs Cockpit Area Cockpit Depth Bridge Clearance w/Top Max HP Baitwell - Port Aft Fishbox 85 sq ft 20" 5' 0" 7' 9" 300 38 gal 98 gal • 12-Volt Receptacle • Baitwell w/Raw Water Washdown & Light (Port Aft) • Bilge Pump • Boarding Ladder • Center Console w/Storage • Cleats - 5 • Cockpit Lights • Compass • Drink Holders - Stainless Steel • Gauges (Analog) - Fuel, MPH, RPM, Trim, Volt (Digital - Suzuki 300) • Grab Rail (Stainless Steel) - Windshield • Gunnel Trim - Rigid Vinyl w/ SS Insert • Horn - Electric • Pull Wire for Trolling Motor • Rod Holders (6) - Vertical • Rod Holders - 1 Pair • Rod Storage (Lockable) - Port • Rope Locker Storage • Seating - Forward Console w/Cushion & Storage • Seating - Leaning Post w/Backrest & Cooler • Steering - Hydraulic • Striping - Black or Blue • Switch and Breaker Panel • Windshield While we endeavor to be as accurate as possible, certain changes in standard and optional equipment may occur. Also, specifications and performance figures are estimated and may vary with each vessel, application and conditions.

Open the catalog to page 1

Have it All. Go Pro! Optional Equipment • Baitwell (10 gal) - Console (Plumbed from Port Aft) • Baitwell (38 gal) & Light - Starboard Aft • Battery Charger - 2 Bank • Battery Charger - 3 Bank • Battery Switch - On/Off • Battery Switch for Dual Batteries • Casting Platform • Gauges - Digital BRP • Gauges - Digital Suzuki • Graphics - Hull Sides - Onyx Black, Deep Blue, Shiraz, Glory Blue (w/ Waterline Stripe) • Graphics - Whole Hull - Onyx Black, Deep Blue, Shiraz, Glory Blue (w/Waterline Stripe) • Jack Plate - Hydraulic • Lights - Spreader (Requires T-Top) • Power Pole (Requires Jack Plate) •...

Open the catalog to page 2

Get More. Go Pro! Graphic Selections Standard Flare Stripe Engine Selections All 25” Shafts Engine Options 200 E-Tec (200 ci) 225 E-Tec 250 E-Tec 300 E-Tec 200 4-Stroke 225 4-Stroke 250 4-Stroke 300 4-Stroke MPH Approx 48 - 51 48 - 51 52 - 55 54 - 57 Black Blue Standard Waterline Stripe Black Blue Optional Waterline Stripe with Hull Side Color Optional Waterline Stripe with Whole Hull Color While we endeavor to be as accurate as possible, certain changes in standard and optional equipment may occur. Also, specifications and performance figures are estimated and may vary with each vessel, application...

Open the catalog to page 3
