2000 CC

Product catalog summary

Overview: The document provides detailed specifications and options for the Pro-Line Boats 2000 CC model, including standard and optional equipment, commercial features, and pre-rig/engine equipment options.

Specifications: The 2000 CC model has a length of 20' 2", a beam of 8' 5", and a draft of 15". It has a fuel capacity of 70 gallons and a weight of 2,200 lbs. The cockpit area is 81 sq ft with a depth of 22". The bridge clearance is 5' 10" without a top and 8' 0" with a top. The maximum horsepower is 200.

Standard Equipment: Includes an accessory buss bar, battery tray, bilge pump, stainless steel cleats, console with storage, deck hardware, integrated drink holders, premium gel coat, lockable glove box, half dive platform, electric horn, commercial-grade hull and deck laminates, rope locker, heavy-duty rub rail, aft jump seats, leaning post, Teleflex hydraulic steering, ample storage, black waterline stripe, military-style switch panel, and acrylic plexiglass windshield.

Commercial Features: Covers electrical, electronics & navigation, engine installation, gauges, graphics, pre-rig/engine equipment, props, safety equipment, shipping preparation, trailer, trailer accessories, and weather protection.

Optional Equipment: Offers a variety of upgrades including 12-volt receptacle, various battery options, dimmer switch, dual battery system, hour meter, trim meter, water pressure gauge, hull lettering and graphics, stainless steel options, cockpit courtesy lights, commissioning kit, fire extinguisher, flood lights, light bar, strobe lights, raw water washdown, siren with PA system, spotlight options, shipping cradle, shrinkwrap, trailer options, bow rail, fuel/water separator upgrade, hull fender system, keel guard, trim tabs, porta-pottie, tilt steering, compass, Garmin electronics, VHF radio, bimini top, console cover, leaning post cover, T-top canvas weather enclosure, and T-top with radio box.

Pre-Rig/Engine Equipment: Options for pre-rigging with Evinrude, Honda, Mercury, and Suzuki engines, with various gauge and steering configurations.

Catalog excerpts

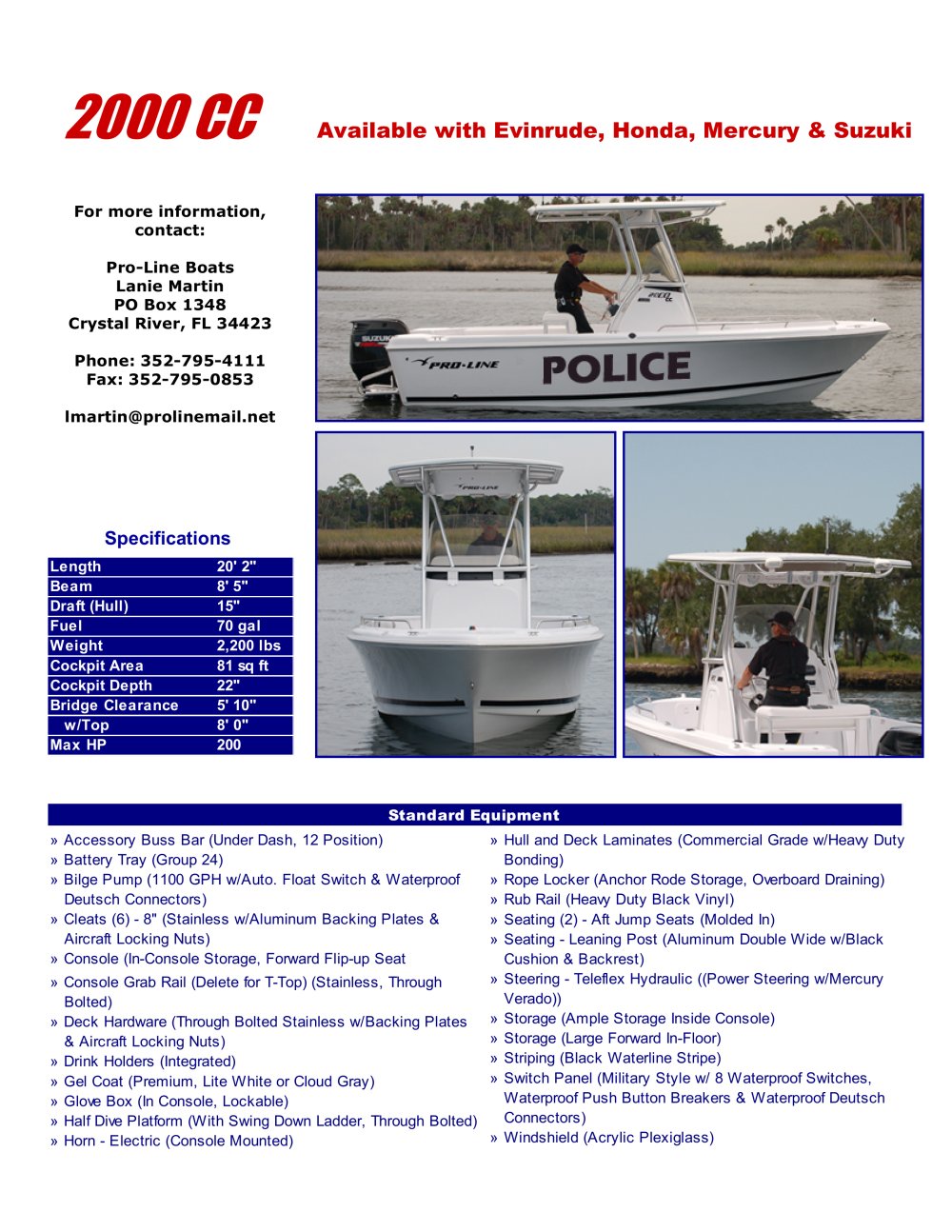

2000 CC Available with Evinrude, Honda, Mercury & Suzuki For more information, contact: Pro-Line Boats Lanie Martin PO Box 1348 Crystal River, FL 34423 Phone: 352-795-4111 Fax: 352-795-0853 [email protected] Specifications Length Beam Draft (Hull) Fuel Weight Cockpit Area Cockpit Depth Bridge Clearance w/Top Max HP 20' 2" 8' 5" 15" 70 gal 2,200 lbs 81 sq ft 22" 5' 10" 8' 0" 200 Standard Equipment » Accessory Buss Bar (Under Dash, 12 Position) » Battery Tray (Group 24) » Bilge Pump (1100 GPH w/Auto. Float Switch & Waterproof Deutsch Connectors) » Cleats (6) - 8" (Stainless w/Aluminum Backing Plates & Aircraft Locking Nuts) » Console (In-Console Storage, Forward Flip-up Seat » » » » » » » » Hull and Deck Laminates (Commercial Grade w/Heavy Duty Bonding) » Rope Locker (Anchor Rode Storage, Overboard Draining) » Rub Rail (Heavy Duty Black Vinyl) » Seating (2) - Aft Jump Seats (Molded In) » Seating - Leaning Post (Aluminum Double Wide w/Black Cushion & Backrest) » Steering - Teleflex Hydraulic ((Power Steering w/Mercury Console Grab Rail (Delete for T-Top) (Stainless, Through Verado)) Bolted) » Storage (Ample Storage Inside Console) Deck Hardware (Through Bolted Stainless w/Backing Plates » Storage (Large Forward In-Floor) & Aircraft Locking Nuts) » Striping (Black Waterline Stripe) Drink Holders (Integrated) » Switch Panel (Military Style w/ 8 Waterproof Switches, Gel Coat (Premium, Lite White or Cloud Gray) Waterproof Push Button Breakers & Waterproof Deutsch Glove Box (In Console, Lockable) Connectors) Half Dive Platform (With Swing Down Ladder, Through Bolted) » Windshield (Acrylic Plexiglass) Horn - Electric (Console Mounted)

Open the catalog to page 1

2000 CC Optional Equipment Commercial Features » Bow Rail - Low Split Open (Aluminum w/Black Powder Coating) » Fuel/Water Separator Upgrade (Racor) » Hull Fender System - (4) Angled, Heavy Duty D-Shaped Rub Strakes (4 Per Side) » Keel Guard - Aluminum » Trim Tabs Deck/Steering » Porta-Pottie - Finished Interior Console » Tilt Steering - Hydraulic » Tilt Steering - Verado Electrical » » » » » » 12 Volt Receptacle Battery - Group 24 (1,000 MCA) Each Battery - Group 27 (625 MCA) Each Battery - Group 31 (750 MCA) Each Dimmer Switch for Panel Lights & Compass Dual Battery System Upgrade (Includes...

Open the catalog to page 2
