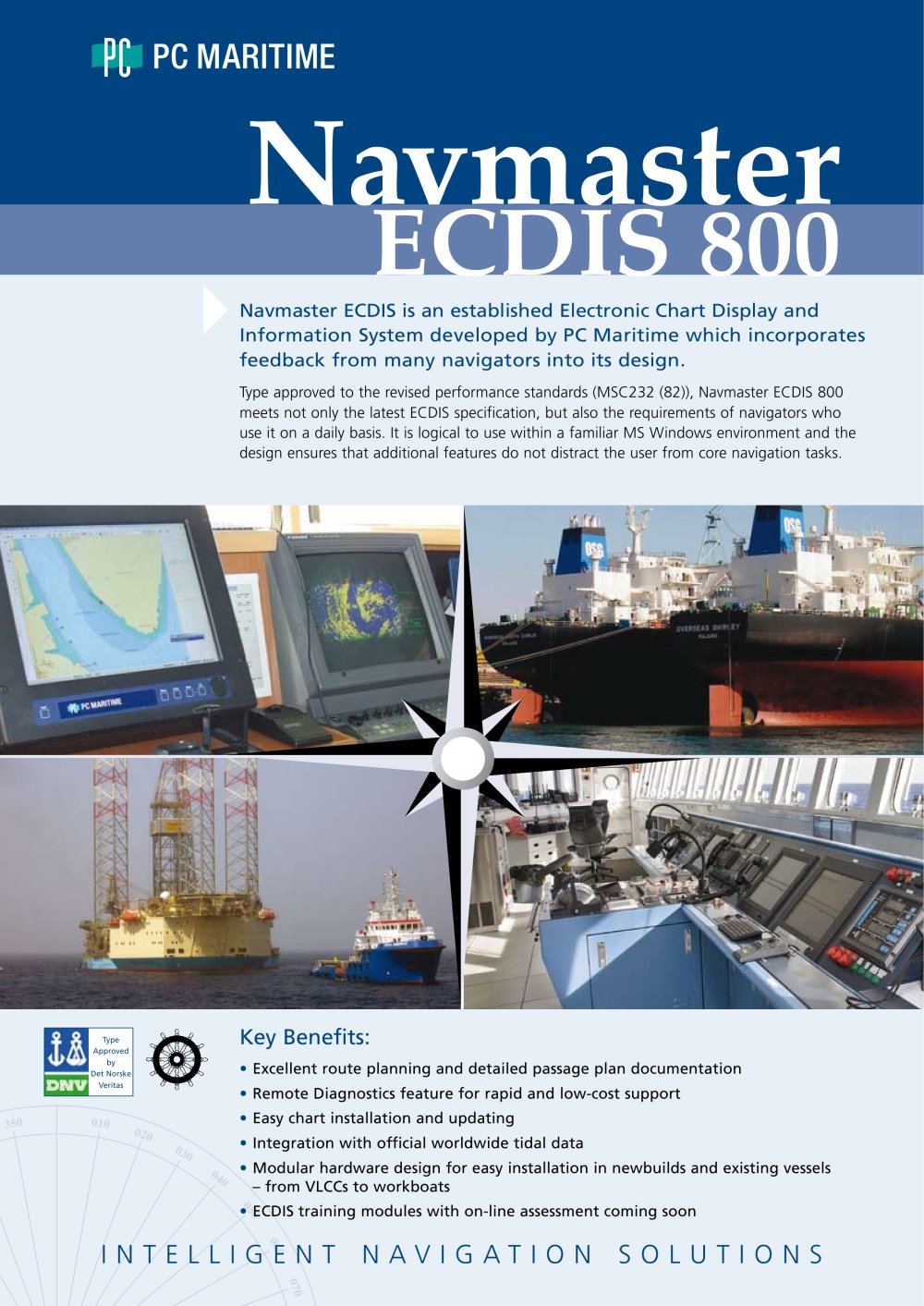

Navmaster ECDIS is an established Electronic Chart Display and Information System developed by PC Maritime which incorporates feedback from many navigators into its design. Type approved to the revised performance standards (MSC232 (82)), Navmaster ECDIS 800 meets not only the latest ECDIS specification, but also the requirements of navigators who use it on a daily basis. It is logical to use within a familiar MS Windows environment and the design ensures that additional features do not distract the user from core navigation tasks. • Excellent route planning and detailed passage plan documentation • Remote Diagnostics feature for rapid and low-cost support • Easy chart installation and updating • Integration with official worldwide tidal data • Modular hardware design for easy installation in newbuilds and existing vessels \- from VLCCs to workboats • ECDIS training modules with on-line assessment coming soon

Real-time route monitoring Navmaster ECDIS automatically displays primary and secondary ship position and provides the navigator with vital voyage information including: • ARPA & AIS target information • Information from interfaced sensors • Heading indicator • Scaled ship outline to aid berthing • Warnings and alarms such as safety contours, off-track, wheelover, critical point, chart status, interfaced sensor alarms, system integrity etc • Automatic logbook, with manual entry option • TotalTide integration for worldwide tidal data Vessel underway with heading marker set to show predicted position...

ARPA targets are continuously monitored by Navmaster ECDIS with additional data displayed in the side panel. • Unlimited ARPA targets tracked • Automatic storage of target data (with optional VDR module) • Frequently used commands quickly accessible from toolbar • Go-To-Target button for rapid view if target is not on the current chart • Option for radar video overlay Night view of own ship crossing southbound Channel traffic separation scheme, with other When combined with ARPA, AIS provides the navigator with a traffic situation. • Unlimited target display • Information filtered between Static,...

Modular hardware All components of the hardware have been type approved individually and as part of the Navmaster ECDIS. Modular components offer greater installation and maintenance flexibility and allow customers a degree of choice. The PC processor can be stored in under-counter housing with TFT display, keyboard and trackball at the conning position. Alternatively all components can be built into integrated bridge consoles. The display could be upgraded to a larger size for just the cost of the display or the PC components could be upgraded to accommodate future ECDIS developments. In the...
