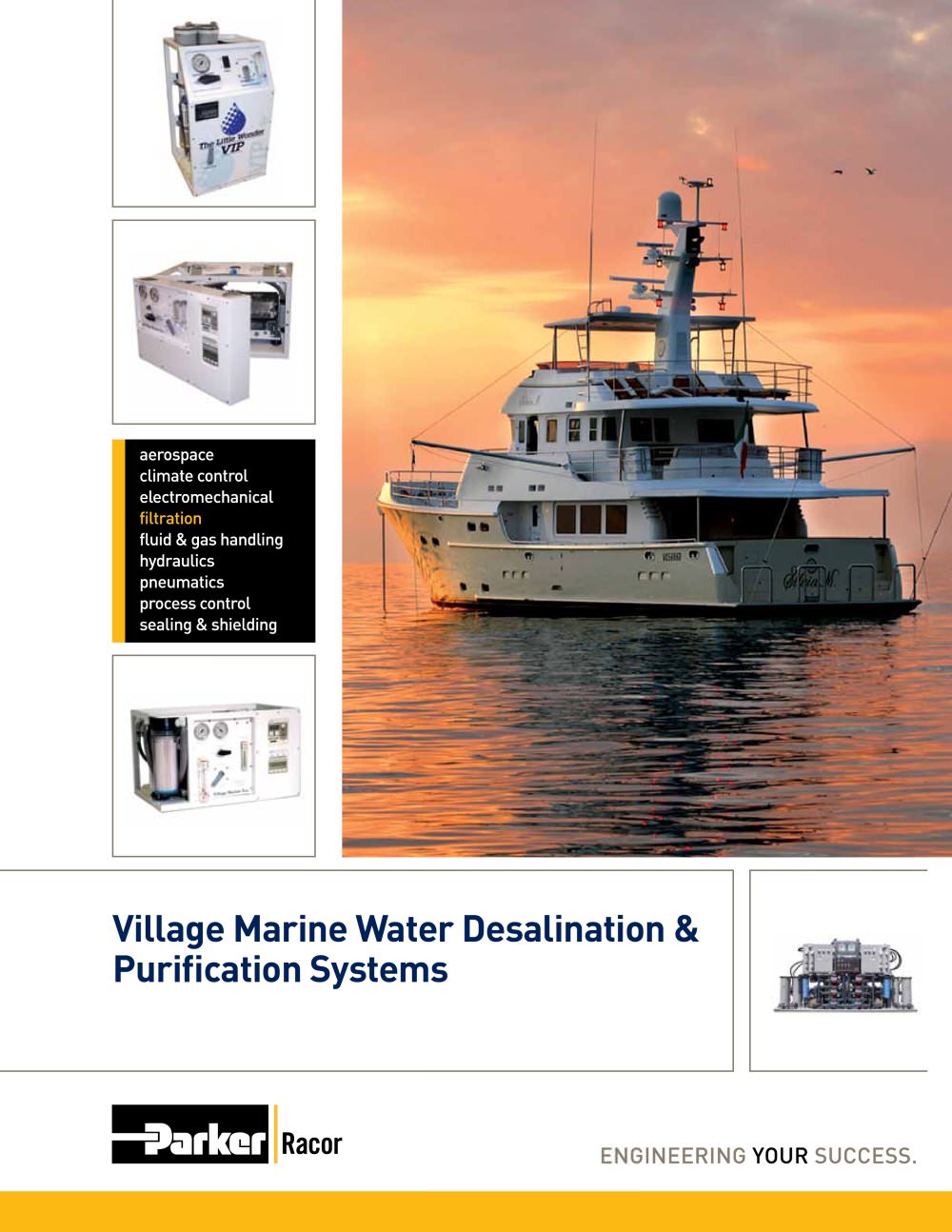

climate control process control sealing & shielding Village Marine Water Desalination & Purification Systems ENGINEERING YOUR SUCCESS.

Forward Thinking in Reverse Osmosis Engineering For over 30 years, Village Marine water desalination and purifica- tion plants for some of the most middle of the ocean, 800 feet below the sea, offshore oilrigs, deserts, and disaster areas. NASA and FEMA relied on VMT to develop a self-contained reverse osmosis plant for its disaster relief program. The Navy asked VMT for water so pure, it could be used with the nuclear reactors on its submarines. Catalina Island sought our help to ensure a steady water supply in drought condi- tions. When Hurricane Katrina hit New Orleans, the Army counted on...

Global Water Technology® Table of Contents Village Marine Overview Inside Front Cover The Inside Story 2-3 Aqua Pro® Pumps 4 Aqua Pro® Membranes and Filters 5 Pure Water Series 6-7 Pure Water Vertical Series 8-9 Aegean and Baltic Series 10-11 Caspian Series 11 Squirt and Stowaway Series 12 Aegean Sub-Compact Series 13 Little Wonder Series 14-15 Sea Quencher Series 16 No-Frills Series 17 Sea Water Series 18-19 Military Systems 20-21 Accessories & Options 22-23 Oily Water Separators 24 Parker’s Motion & Control Technologies 25 Fuel 26 Oil 27 Crankcase 28 Air Inside Back Cover Worldwide Manufacturing...

Aqua Pro, magnetic drive, Stainless Steel high pressure Aqua Pro, industrial grade, pleated pre-filtration Corrosion resistant, powder coated, aluminum frame mounting hardware Aqua Pro, Titan Series, Titanium head, corrosion resistant high pressure pumps. Reverse Osmosis System STRAtNER LIF-TPUWP PHE-FIUTE* PRESSURE MEMBRANE

Fresh water automatically High pressure bypass valves, Water Quality Monitor fresh water quality and adjustable set point, high salinity alarm, hour meter Inconel panel Master Control Panel pressure protection, high salinity warning, check resistant Inconel panel Plug and play, Self contained model. Glycerin filled, Integral, closed loop cleaning system brine flow meters Custom made seawater membranes Lifetime Guaranteed - Fiberglass pressure vessels Corrosion resistant, machined nylon Air/Oil separator- Maintenance FREE! Remote Control Panel - Push button operation, high salinity alarm and corrosion...

High Pressure Quiet and durable, Aqua Pro Titan Series Pumps are designed for reverse osmo- pump components are made of titanium which is imper- vious to sea water corrosion. pump design uses less energy than most pumps. Series High Pressure Pumps: • Titanium pump heads ensure reliable • Titanium fluid ends and titanium-backed nylon • Heavy-duty industrial tant plungers extend service life in high pressure applications. pressure regulation design reduces noise provide quiet, smooth Aqua Pro® Pumps Innovative engineering Solid material choices Titan Series High Pressure Titanium Pump Titan Series...

Aqua Pro® Membranes and Filters Unmatched design capabilities Proven manufacturing and quality processes Salts, minerals and organics are no match for Aqua Pro spiral wound membranes. They remove impurities from sea water, brackish water, fresh water and tap water. Selecting the highest grade of materials and thoroughly testing their performance and integrity, results in unmatched membrane quality and efficiency. Flexibility in design and manufacturing capabilities allows maximum quality control and quick response to unique, custom fabrication. Pleated filters are designed for reverse osmosis...

Pure Water Series 400-18,000 GPD (1,510-68,140 LPD) For Commercial Marine Applications The Pure Water (PW) Series is designed to provide installation flexibility, superior performance, and extended service life in the most rugged conditions. Typically used in 24 / 7, continuous-duty applications, the PW Series is fully operational from an optional remote control. Manual Fresh Water Flush VMT-PW 400-2000 GPD (1,510-7,570 LPD) Modular System (See bulletin no. 7783) Included Standard VMT-PW 400-2000 GPD (1,510-7,570 LPD) Semi-Modular System (See bulletin no. 7783) VMT-PW 400-2000 GPD (1,510-7,570...

Pure Water Series Standard Features and Benefits include • Monel mesh strainer and dual sediment prefilters. • Maintenance-free air/oil separator allows operation while underway. • 3 or 5 plunger titanium pump for low vibration and noise with unsurpassed corrosion resistance. • Magnetic drive low pressure pump provides up to 10 psi of boost pressure to the filtration system. Never requires seal replacement. • 316 stainless steel, glycerin filled pressure gauges. • Freshwater flush system included. • Optional automation of the flush system is available. • Adjustable 316 stainless steel pressure...

Pure Water Vertical Series 800-4,000 GPD (3,030-15,140 LPD) For Large Yachts, Commercial Marine Applications and Seaside Properties VMT-PWV2000 Vertical Frame System with front door open for maintenance access. (7,570 LPD) 8

With the same high- horizontal Pure Water Series, the vertical frame Pure Water Series offers a more compact foot print flush system. volume potable water, basis, in a harsh environ- ment, the Village Marine Pure Water Series in either configuration meets Vertical Frame System Vertical Frame System (See bulletin no. 7858)

Aegean Series 400-1,300 GPD (1,510-4,920 LPD) For Fishing Vessels and Work Boats OML-Aegean Series (See bulletin no. 7874) Baltic Series 400-1,300 GPD (1,510-4,920 LPD) For Fishing Vessels and Work Boats OML-Baltic Series The OML-Baltic Series modular design allows for flexible installation where space constraints need taken into consideration. (See bulletin no. 7883) 10

Fresh water is the last thing fishermen hauling in their workers performing their duties should have to worry about at any time. Reliable reverse osmosis systems onboard commercial marine vessels aren't a luxury, they drinking water, showers, laundry - and also supply the needed water to process the catch and keep equipment operating smoothly for weeks Aegean, Baltic and Caspian the big rollers. Keeping fresh water in their tanks, keeps the working mariners from distractions and allows them to focus on the task at hand. long-service life in severe conditions, standard features Baltic and Caspian...
