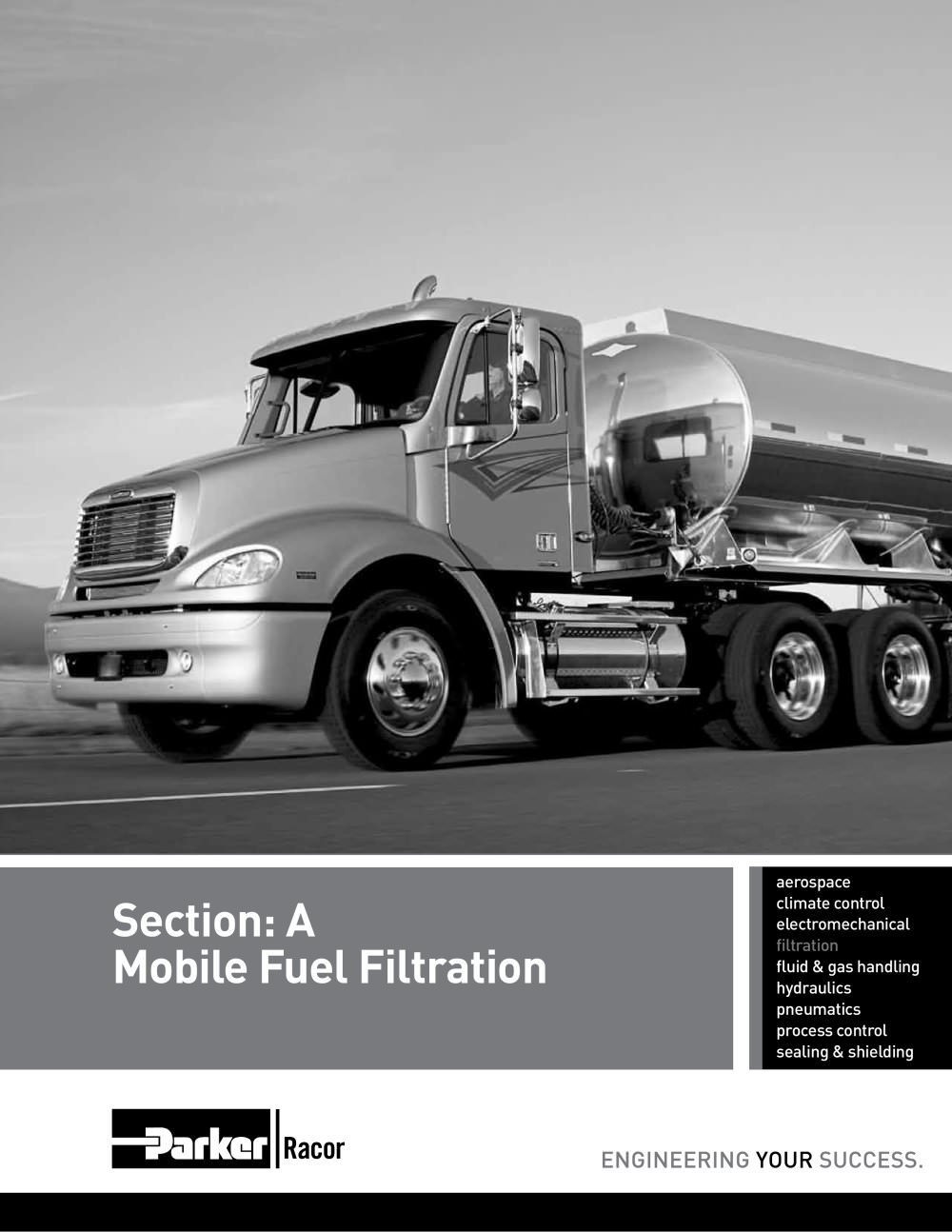

Mobile Fuel Filtration climate control process control sealing & shielding ENGINEERIN YOUR SUCCESS.

Mobile Fuel Filtration 700 Series Electronic Priming Pump w/Spin-On Fuel Filter/Water Separator A133 Questions? Contact Technical Support: e-mail: racortech@parker.com

Mobile Fuel Filtration In-Line Fuel Prefilters 025 Series In-Line Fuel Prefilters are the first stage in keeping your fuel clean. Dirt and grime in fuel can spell disaster. A secondary or final Racor filter should be installed after this filter for superior protection. Installing a prefilter in your fuel system will increase overall filter life, Typical Mobile Applications: • Small Gensets • Small Tractors Product Features: • Easy Spin-On Servicing • Proprietary Aquabloc®ll filter • Easy Installation • Saves Money • Easy One-Piece Installation Blended Fuels • Saves Money • Clear Plastic...

Mobile Fuel Filtration Special Notes: 1 Pressure installations acceptable up to maximum PSI shown (vacuum installations recommended). Questions? Contact Technical Support: e-mail: racortech@parker.com

Mobile Fuel Filtration Special Notes: 1 Pressure installations acceptable up to maximum PSI shown (vacuum installations recommended).

Mobile Fuel Filtration 025 Series Mounting Instructions 025-RAC-01 and 025-MBL-02B 1/4´´ (0.64 cm) Engine Tank 9/16´´ (1.43 cm) Shut-off valve needed if filter is mounted lower than tank. Anti-Rotational Nub 3/16´´ (0.48 cm) Outlet Inlet 025-RAC-10A, 025-RAC-11, 025-RAC-12 and 025-RAC-13 Engine Fuel Tank Shut-off valve needed if filter is mounted lower than tank. 025-RAC-10A 1/2"-14 NPTF 025-RAC-11 1/4" hose bead 025-RAC-12 5/16" hose bead 025-RAC-13 3/8" hose bead A4 Questions? Contact Technical Support: 800 344 3286 or 209 521 7860 ext. 7555 e-mail: racortech@parker.com

Mobile Fuel Filtration Replacement Parts No replacement parts available. Order complete assembly for replacement. Questions? Contact Technical Support: e-mail: racortech@parker.com

Mobile Fuel Filtration Test Data SEA J905 Fuel Flow Restriction Flow in Gallons Per Hour SEA J905 Fuel Flow Restriction Flow in Gallons Per Hour (using fine test dust @ 25 GPH) Test results are from controlled laboratory testing. Field results may vary. Questions? Contact Technical Support e-mail: racortech@parker.com

Mobile Fuel Filtration Fuel Filter/Water Separator Filter Series keeps your fuel clean and dry, because having grime and water in your fuel spells disaster. More than ever, today's high performance gasoline engines require clean, dry fuel. Standard fuel filters simply succumb from normal usage, and don't offer the improved features, durability comes with Racor fuel filters. Experienced sailors trust their engines, their livelihood, and even their lives to Racor's high quality marine products. Maximum Flow Rate: (with gasoline) Inlet/Outlet Port Size Housing Material Replacement Element...

Mobile Fuel Filtration Fuel Filter/Water Separator Filter Series keeps your fuel clean and dry, because having grime and water in your fuel spells disaster. More than ever, today's high performance gasoline engines require clean, dry fuel. Standard fuel filters simply succumb from normal usage, and don't offer the improved features, durability comes with Racor fuel filters. Experienced sailors trust their engines, their livelihood, and even their lives to Racor's high quality marine products. Maximum Flow Rate: (with gasoline) (with diesel) Inlet/Outlet Port Size Housing Material...

Mobile Fuel Filtration Fuel Filter/Water Separator fuel have been a problem for decades. More than ever, today's high-performance engines require clean, dry fuel. Standard fuel filters simply don't offer the improved features and peace-of- mind that come with Racor fuel filter/water separators. These compact heavy-duty filters install quickly and remove solid contaminants and water from gasoline or diesel fuel. Typical applications include: small gensets, snow machines, lawn mowers, pressure washers, and small diesel engines up to Maximum Flow Rate: (with gasoline) (with diesel)...

Mobile Fuel Filtration Fuel Filter/Water Separator Filter Series keeps your fuel clean and dry, because having grime and water in your fuel spells disaster. More than ever, today's high performance gasoline engines require clean, dry fuel. Standard fuel filters simply succumb from normal usage, and don't offer the improved features, durability comes with Racor fuel filters. Experienced sailors trust their engines, their livelihood, and even their lives to Racor's high quality marine products. Maximum Flow Rate: (with gasoline) (with diesel) Inlet/Outlet Port Size Housing Material...

Mobile Fuel Filtration Fuel Filter/Water Separator Filter Series keeps your fuel clean and dry, because having grime and water in your fuel spells disaster. More than ever, today's high performance gasoline engines require clean, dry fuel. Standard fuel filters simply succumb from normal usage, and don't offer the improved features, durability comes with Racor fuel filters. Experienced sailors trust their engines, their livelihood, and even their lives to Racor's high quality marine products. Maximum Flow Rate: (with gasoline) (with diesel) Inlet/Outlet Port Size Housing Material...

Mobile Fuel Filtration Installation Instructions The following customer supplied materials should be on hand before • 1/4" hose (or larger) and hose • Thread sealant (no thread tapes). The 025 series filters are designed to be installed on suction (vacuum) side applications; (pressure side open flames around fuel or filters. 1. Make sure engine is off and cool 2. Apply thread sealant to 1/4" NPT fittings (do not use thread tapes contribute to clogging filter). 3. Thread fittings into fuel ports and tighten snugly. 4. Mount filter vertically in a protected area and away from heat sources....

Mobile Fuel Filtration Replacement Parts Part Number Description Bowl O-ring is included with every new element Replacement Elements (includes #4) No replacement parts available. Order complete Questions? Contact Technical Support: e-mail: racortech@parker.com
