MILLENNIUM 58HT

Product catalog summary

Introduction: This document provides technical specifications and equipment details for a specific boat model. It emphasizes that the information is not binding and does not imply certification. Owners are responsible for completing safety equipment according to their country's requirements.

Specifications: The boat has an overall length of 18.70 m, a hull length of 16.75 m, and a beam of 4.68 m. It features a full load draft of 1.29 m and a displacement of 29.5 tons when half-laden. The fuel capacity is 3500 L, and the water capacity is 450 L plus an additional 280 L. It is powered by two CAT C32 engines with 1670 HP each, achieving a maximum speed of 55 knots and a cruising speed of 50 knots. The boat can accommodate 16 people and falls under CE category B.

Construction Materials: The hull and deck are made of Aramat, with DSM gel coat painting. The hull bottom is treated with antifouling and an epoxy anchoring primer.

Deck and Equipment: The deck includes an electric windlass, anodized aluminum mooring cleats, a stern winch, and various hatches and portholes. It also features a hard-top with a hydraulic sliding sunroof, a swim platform with a hot and cold shower, and various antennas and navigation lights.

Cockpit and Bridge: The cockpit is equipped with a fiberglass dashboard, leatherette pilot and co-pilot seats, a bar-combination unit, and a sofa with storage. The bridge includes a magnetic compass, VHF radio, chart-plotter, engine instruments, and various control switches.

Engine and Propulsion: The boat is powered by Caterpillar C32 engines with ZF 2060 A inverters and Arneson Drive ASD 14 L. It includes a structural fuel tank, fresh water tanks, and various pumps and filters.

Electrical System: The boat features internal air conditioning, an 8kW generator, battery sets, an automatic battery charger, and various sockets and switches. It also includes galvanic protection and grounding for metal parts.

Water System: The water system includes Tecma WC systems, hot and cold water systems, and structural tanks for grey and black waters.

Interior Materials and Accessories: The interior features lacquered finishes, wood veneer furniture, and various chrome and satin-finished accessories. The owner's cabin includes a double bed, wardrobes, and a bathroom with a stainless steel sink and Corian top. The dinette, gallery, and guest cabins are similarly equipped with high-quality materials and appliances.

Safety and Additional Equipment: The boat is equipped with mooring lines, a shore power cable, life jackets, a liferaft, extinguishers, a flare kit, and a first aid kit. It also includes fenders, a boat cover, and a maintenance manual.

Catalog excerpts

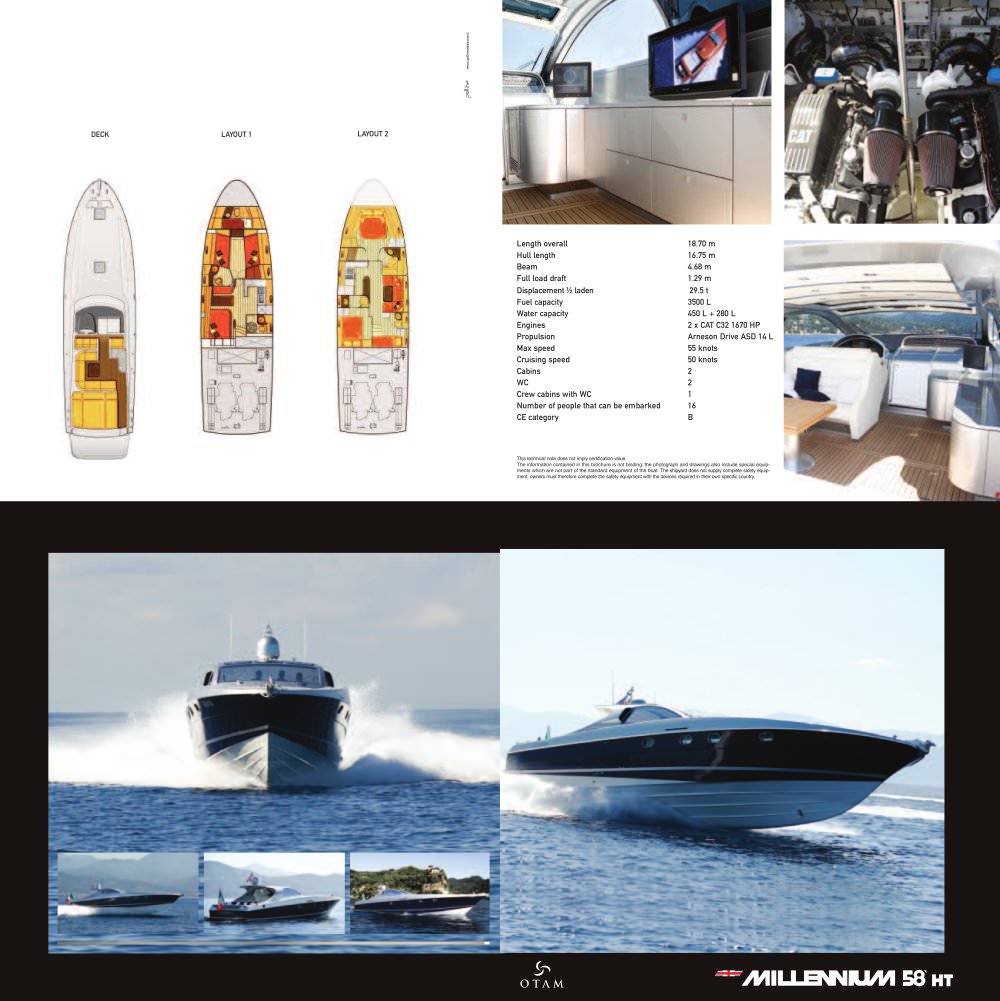

Length overall Hull length Full load draft Fuel capacity Water capacity Cruising speed Crew cabins with WC Number of people that can be embarked This technical note does not imply certification value. The information contained in this brochure is not binding: the photograph and drawings also include special equip- ments which are not part of the standard equipment of the boat. The shipyard does not supply complete safety equip- ment, owners must therefore complete the safety equipment with the devices required in their own specific country.

Open the catalog to page 1

Hull and deck building material: Hull: Aramat Deck: Aramat the bottom is treated with two coats of antifouling prior to application of an epoxy anchoring Deck: DSM gel coat including antiskid Hull and deck eguipment: Electric windlass 2000 W 24 v with local and remote control from the dashboard Anodized aluminium bow roller 75-metre galvanised chain diam. 10 mm. Access to chain locker with fibreglass hatches (n.2) with opening by means of stainless steel gas pistons and lift handles Anodized aluminium bow/stern mooring cleats (n.4) Anodized aluminium lateral mooring cleats (n.8) Anodized aluminium...

Open the catalog to page 2
