MILLENNIUM 45

Product catalog summary

Introduction: This document provides technical specifications and equipment details for a specific boat model. It includes information on dimensions, engine specifications, and onboard systems, but does not imply certification or include complete safety equipment.

Specifications:

Dimensions: Length overall is 15.05 m, hull length is 13.45 m, beam is 4.00 m, and full load draft is 1.07 m.
Capacity: Fuel capacity is 2000 L, water capacity is 440 L + 350 L, and the boat can accommodate 12 people.
Performance: Max speed is 55 knots, cruising speed is 50 knots.
Engines: Equipped with 2 x CAT C18 engines, each 1015 hp, with Arneson Drive ASD 12 propulsion.

Deck and Hull:

Constructed with Aramat material, the hull is treated with antifouling and epoxy primer.
Features include an electric windlass, anodized aluminum fittings, and a fiberglass swim platform with teak insert.

Navigation and Control Systems:

Includes magnetic compass, VHF radio, chart-plotter, and various engine and bilge alarms.
Control panel features switches for various systems including bilge pumps, navigation lights, and engine start/stop.

Interior Features:

Owner's cabin includes a double bed, wardrobes, and a bathroom with Tecma WC and Corian finishes.
Guest cabin features a single bed, wardrobe, and similar bathroom amenities.
Dinette and galley are equipped with sofas, a flat TV, and kitchen appliances including a microwave and fridge.

Safety and Equipment:

Includes life jackets, liferaft, extinguishers, flare kit, and first aid kit.
Additional equipment includes mooring lines, shore power cable, and fenders.

Conclusion: The document outlines the comprehensive features and specifications of the boat, emphasizing the need for owners to ensure compliance with local safety equipment requirements.

Catalog excerpts

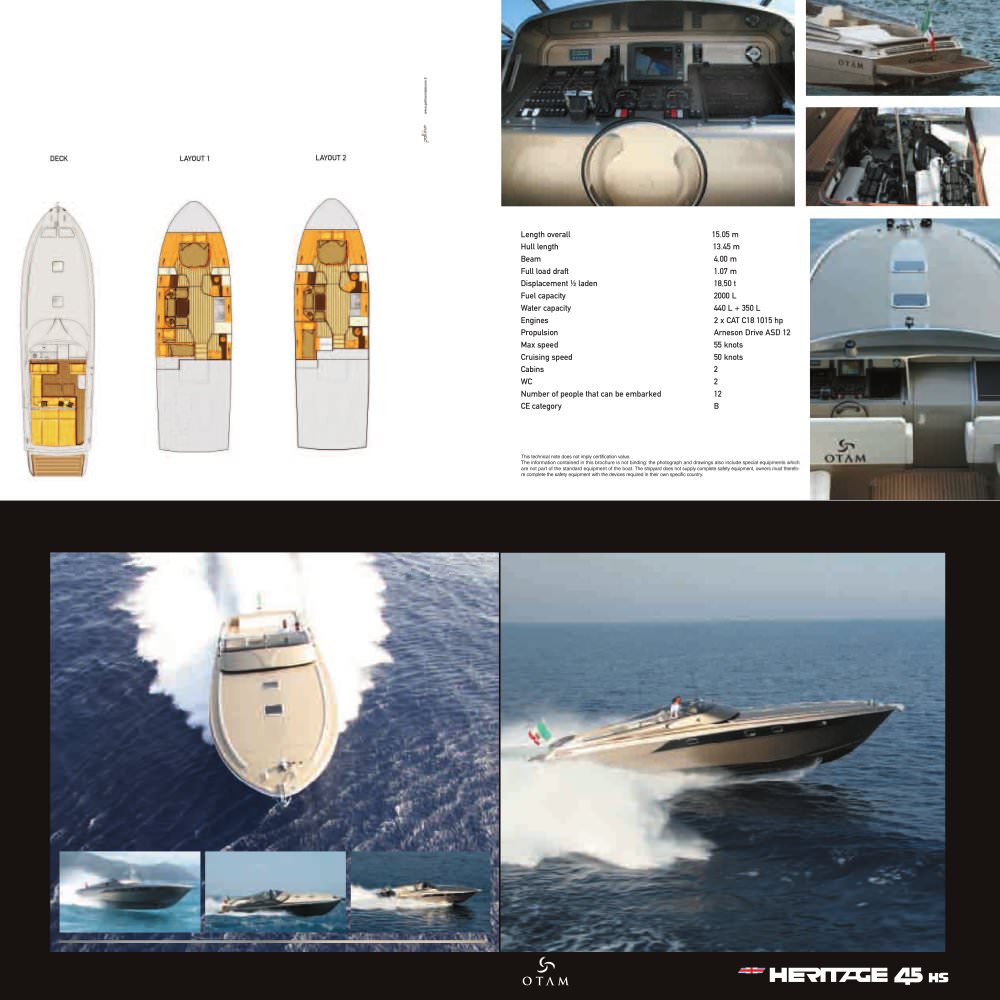

23-09-2008 12:45 Pagina 1 www.pollineinbalcone.it scheda 45INGLESE:otam DECK LAYOUT 1 LAYOUT 2 Length overall Hull length Beam Full load draft Displacement ½ laden Fuel capacity Water capacity Engines Propulsion Max speed Cruising speed Cabins WC Number of people that can be embarked CE category 15.05 m 13.45 m 4.00 m 1.07 m 18,50 t 2000 L 440 L + 350 L 2 x CAT C18 1015 hp Arneson Drive ASD 12 55 knots 50 knots 2 2 12 B This technical note does not imply certification value. The information contained in this brochure is not binding: the photograph and drawings also include special equipments which are not part of the standard equipment of the boat. The shipyard does not supply complete safety equipment, owners must therefore complete the safety equipment with the devices required in their own specific country.

Open the catalog to page 1

Hull and deck building materials: the bottom is treated with two coats of antifouling prior to application of an epoxy anchoring primer Deck: DSM gel coat including antiskid Hull and deck eguipment: Electric windlass 1500 w 24 v with local and remote control from dashboard Anodized aluminium bow roller 75-metre galvanised chain diam. 8 mm. Access to chain locker with glass fibre hatches (n.2) with opening by means of stainless steel gas pistons and lift handles Anodized aluminium bow/stern mooring cleats (n.4) Anodized aluminium lateral mooring cleats (n.2) Anodized aluminium bow chocks (n. 2)...

Open the catalog to page 2
