Multifunctional Stern Platform “Transformer” 3382
Design and Specifications:
  • The Transformer 3382 is a patented multifunctional stern platform, recognized with a Design Award at METS 2007.
  • Available models include 3382.40, 3382.50, and 3382.60, with 4, 5, and 6 steps respectively.
  • Dimensions and capacities vary by model, with detailed measurements provided for each.
  • The platform is designed for multiple uses, including as a tenderlift, loading platform, gangway, and swim ladder.
Technical Details:
  • The platform operates on a 220 V three-phase power supply.
  • Each model in the 3380 series has an equivalent in the 3390 series, which functions solely as a tenderlift and hoist without steps.
  • The lifting capacity includes the weight of the platform plus any additional load such as a tender or jet ski.
Material and Construction:
  • The mobile portion of the stern platform is made of teak, with construction managed by the shipyard.
  • Carbon fiber versions are available, significantly reducing the weight of the platform.
Usage and Positioning:
  • The 3382/60 model can be elevated for use as a tenderlift, hoist, or gangway.
  • The 3382/40 model can be lowered for use as a swim ladder.
Additional Notes:
  • The load capacity of the arms is guaranteed with the load centered on E/2.
  • Last update to specifications was on 20/02/12.
See more

Catalog excerpts

transformer model 3382-1

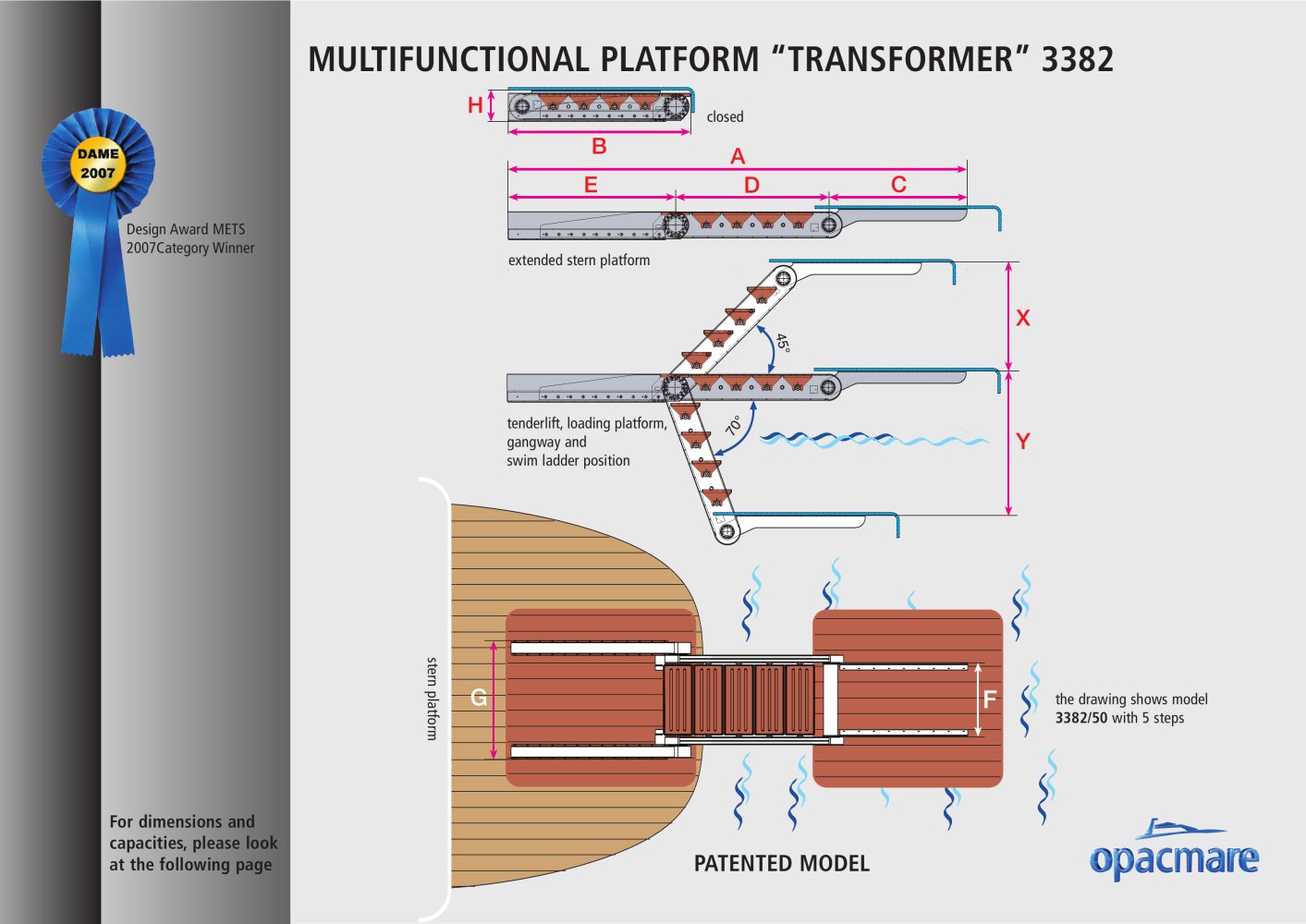

MULTIFUNCTIONAL PLATFORM “TRANSFORMER” 3382 closed A Design Award METS 2007Category Winner extended stern platform ✓✖ ✖✓ tenderlift, loading platform, gangway and swim ladder position stern platform For dimensions and capacities, please look at the following page the drawing shows model 3382/50 with 5 steps PATENTED MODEL

 Open the catalog to page 1
transformer model 3382-2

Disponibili nella versione fino a quasi dimezzarlo. PLANCETTA MULTIFUNZIONE DI POPPA "TRANSFORMER" 3382 modello 3382/60 (6 gradini) in posizione sollevata per utilizzo come tenderlift, per utilizzo scaletta bagno La porzione mobile della plancetta di poppa in teak MODELLO BREVETTATO : (mm) F (mm) G (mm) H (mm) X (mm) Y (mm) portata (kg) peso (kg) peso (kg) standard CARBONIO Per ogni modello di TRANSFORMER della serie 3380 esiste l'equivalente modello nella serie 3390. Senza gradini e con la sola funzione di tenderlift e montacarichi. (Per le specifiche consulta a catalogo le schede tecniche della...

 Open the catalog to page 2
