transformer model 3381

transformer model 3381
1 / 2 PagesView full catalog

transformer model 3381

Product catalog summary
Overview: The document provides technical specifications and features of the multifunctional platform "TRANSFORMER" model 3381, which is designed for marine applications. It highlights the platform's versatility, including its use as a tenderlift, loading platform, gangway, and swim ladder.
Specifications: The platform is available in three models: 3381.40, 3381.50, and 3381.60, each with varying dimensions and capacities. The models differ in the number of steps and overall size, with the 3381.40 having 4 steps, the 3381.50 having 5 steps, and the 3381.60 having 6 steps. The dimensions are provided in both millimeters and inches, and the weight capacity ranges from 300 kg (650 lbs) to 100 kg (220 lbs) depending on the model.
Features: The platform is patented and was a category winner at the METS Design Award in 2007. It is designed to be multifunctional, with the ability to extend and retract, effectively tripling the stern depth when fully extended. The platform can also be used as a beach stepladder or tenderlift.
Power Supply: The platform operates on a 220 V three-phase power supply.
Additional Information: The document notes that teak covering for the stern platform is the responsibility of the shipyard. It also mentions that for each model in the 3380 series, an equivalent model in the 3390 series is available, which lacks steps and serves solely as a tenderlift and loading platform.
Important Considerations: The guaranteed lifting capacity is specified when the load is centered at the barycentric point on E/2. The loading capacity is intended for the total platform weight and a fully-loaded tender or jet ski.
See more

Catalog excerpts

transformer model 3381-1

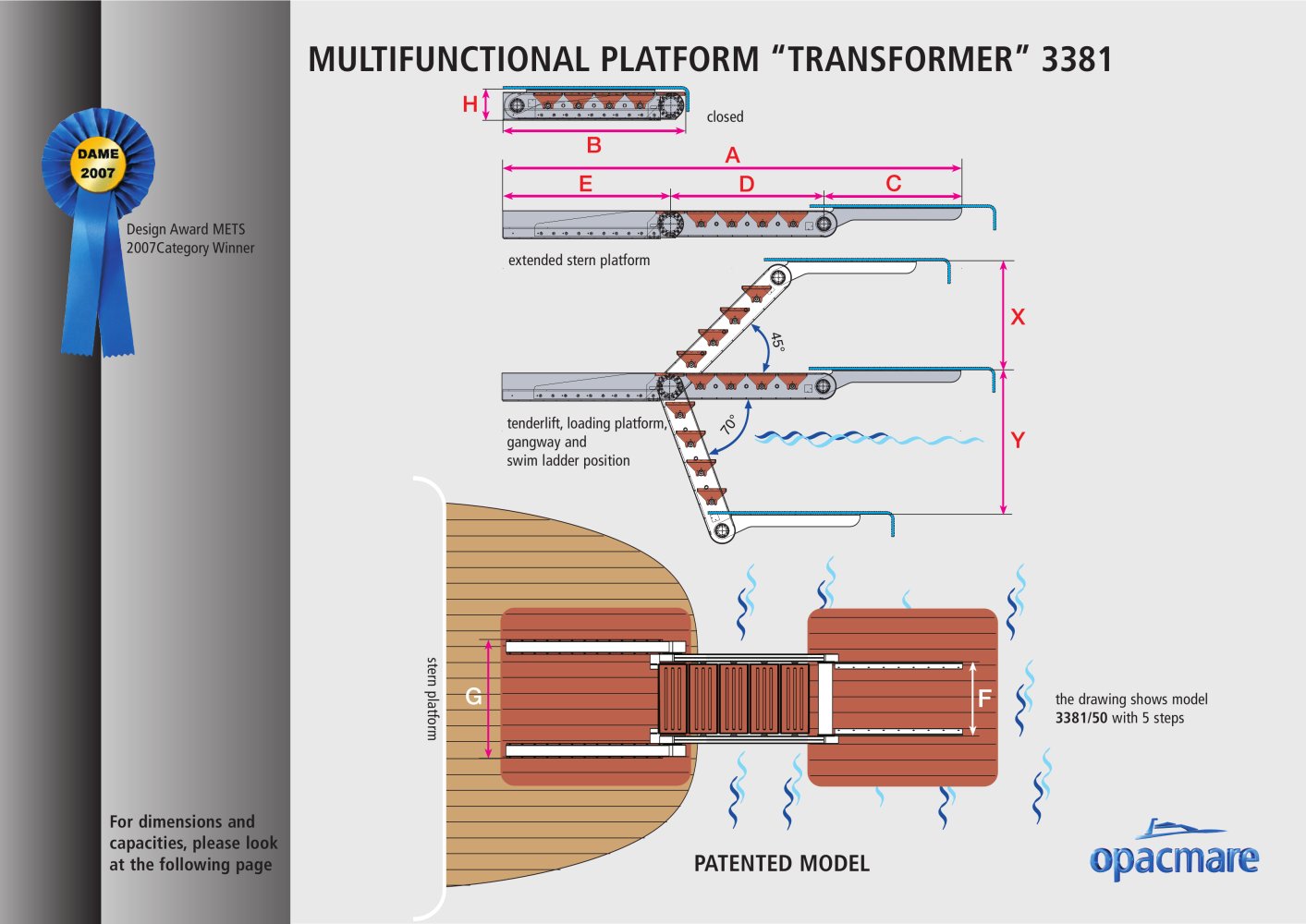

MULTIFUNCTIONAL PLATFORM “TRANSFORMER” 3381 closed A Design Award METS 2007Category Winner extended stern platform ✓✖ ✖✓ tenderlift, loading platform, gangway and swim ladder position stern platform For dimensions and capacities, please look at the following page the drawing shows model 3381/50 with 5 steps PATENTED MODEL
