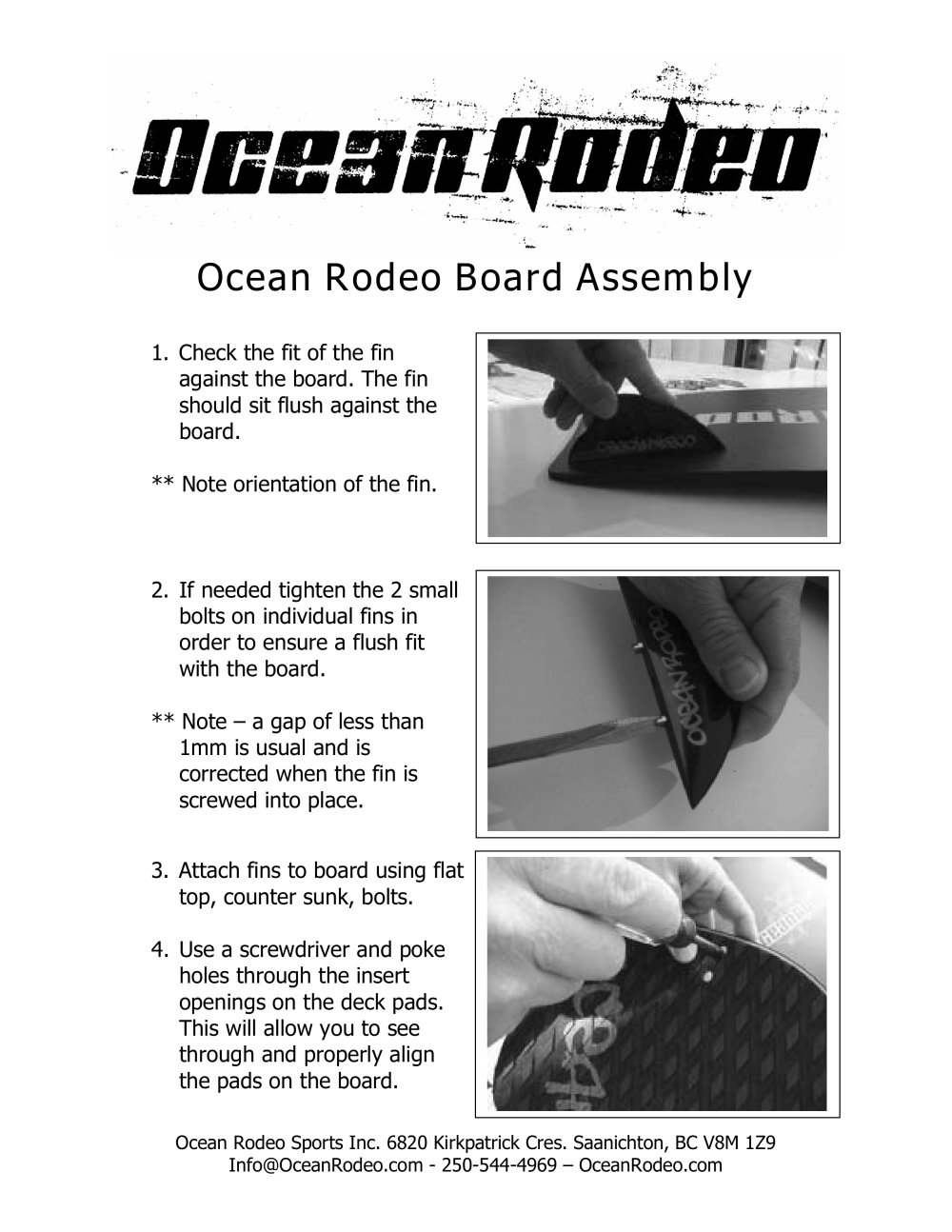

Ocean Rodeo Board Assembly 1. Check the fit of the fin against the board. The fin should sit flush against the board. ** Note orientation of the fin. 2. If needed tighten the 2 small bolts on individual fins in order to ensure a flush fit with the board. ** Note – a gap of less than 1mm is usual and is corrected when the fin is screwed into place. 3. Attach fins to board using flat top, counter sunk, bolts. 4. Use a screwdriver and poke holes through the insert openings on the deck pads. This will allow you to see through and properly align the pads on the board. Ocean Rodeo Sports Inc. 6820 Kirkpatrick Cres. Saanichton, BC V8M 1Z9 Info@OceanRodeo.com - 250-544-4969 – OceanRodeo.com

5. Peel back the first ½ of the paper backing on the stick down pads, just past the insert holes. 6. Position pad on deck so that the holes in the pad line up with the inserts on the board. Be careful not to stick the pad down until properly aligned. Once aligned, push down to stick. Be sure to pay attention to the edges. 7. Peel off the rest of the paper from the pad once the first half is properly secured. Ocean Rodeo Sports Inc. 6820 Kirkpatrick Cres. Saanichton, BC V8M 1Z9 Info@OceanRodeo.com - 250-544-4969 – OceanRodeo.com

8. Press down on entire pad to properly secure. Again, be sure to give attention to the edges of the deck pad. 9. Repeat steps 4 to 8 for the second pad. 10. Use flat topped, counter sunk, bolts to attach the grab handle to the board. ** Note – do not over tighten! 11. On the foot straps, place the wide, rectangular, washers under the neoprene and pass a bolt through both the washer and the foot strap. Ocean Rodeo Sports Inc. 6820 Kirkpatrick Cres. Saanichton, BC V8M 1Z9 Info@OceanRodeo.com - 250-544-4969 – OceanRodeo.com

12. Now pass the bolt through the second set of webbing on the bottom of the foot strap. 13. Correctly align the foot straps on the board. ** Note orientation of straps. 14. Screw foot straps to board. Be sure that bolts are threaded correctly to avoid stripping the insert. Do not over tighten. Ocean Rodeo Sports Inc. 6820 Kirkpatrick Cres. Saanichton, BC V8M 1Z9 Info@OceanRodeo.com - 250-544-4969 – OceanRodeo.com

Ready To Go! Ocean Rodeo Sports Inc. 6820 Kirkpatrick Cres. Saanichton, BC V8M 1Z9 Info@OceanRodeo.com - 250-544-4969 – OceanRodeo.com

Length Width TORSION FLEX SURE GRIP The Mako redefines kiteboard design. Built for kiters who live to ride fast and powered, the Mako thrives in moments of excessive speed, hard carving and going big! The HUGE 18mm of concave smoothes out chop and goes upwind like crazy. In waves or flat water: it has Computer engineered progressive flex pattern blended to the boards concave makes for a stiffer ride under your feet. Rider controlled input translates to more turning output. A fast, responsive ride! The Mako has very little torsional flex. The Mako excels when ridden with a hip forward...

The twin tip Zen - Freestyle board is wake-influenced but designed for kiting. Built for those aggressive riders who know how to power a board up and require a stable platform to initiate tricks and stomp landings. Computer engineered progressive flex pattern blended to the board's concave makes for a stiffer ride under your feet. Rider controlled input translates to more turning output. A fast, responsive ride! The Zen has a moderate amount of tip to tail flex. The Zen has a moderate amount of torsional flex. TQRSIQN FLEX The Zen allows the rider to choose their appropriate stance. Whether...

The Legend - ALX is the original flex board! Now in it's fourth year of production the Legend continues to evolve and utilize the latest technology. 2005 brings a new 3D shape to this legendary board! Designed for beginner to intermediate riders, this is a true all-terrain board designed to ride everything, everywhere. The Legend is built tough but offers a forgiving, stable The MOST rider-controlled board flex and torsional twist. More rider-controlled input results in a more responsive output. You can decide how quick you enter and leave a turn.. The Legend has a lot of tip to tail flex....
