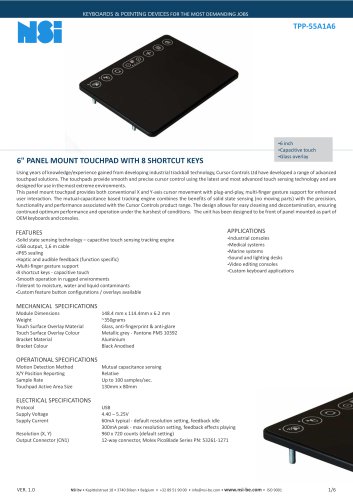

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS Ÿ6 inch ŸCapacitive touch ŸGlass overlay 6" PANEL MOUNT TOUCHPAD WITH 8 SHORTCUT KEYS Using years of knowledge/experience gained from developing industrial trackball technology, Cursor Controls Ltd have developed a range of advanced touchpad solutions. The touchpads provide smooth and precise cursor control using the latest and most advanced touch sensing technology and are designed for use in the most extreme environments. This panel mount touchpad provides both conventional X and Y-axis cursor movement with plug-and-play, multi-finger gesture support for enhanced user interaction. The mutual-capacitance based tracking engine combines the benefits of solid state sensing (no moving parts) with the precision, functionality and performance associated with the Cursor Controls product range. The design allows for easy cleaning and decontamination, ensuring continued optimum performance and operation under the harshest of conditions. The unit has been designed to be front of panel mounted as part of OEM keyboards and consoles. FEATURES ŸSolid state sensing technology – capacitive touch sensing tracking engine ŸUSB output, 1,6 m cable ŸIP65 sealing ŸHaptic and audible feedback (function specific) ŸMulti-finger gesture support Ÿ8 shortcut keys - capacitive touch ŸSmooth operation in rugged environments ŸTolerant to moisture, water and liquid contaminants ŸCustom feature button configurations / overlays available consoles systems ŸMarine systems ŸSound and lighting desks ŸVideo editing consoles ŸCustom keyboard applications ŸMedical MECHANICAL SPECIFICATIONS Module Dimensions Weight Touch Surface Overlay Material Touch Surface Overlay Colour Bracket Material Bracket Colour 148.4 mm x 114.4mm x 6.2 mm ~350grams Glass, anti-fingerprint & anti-glare Metallic grey - Pantone PMS 10392 Aluminium Black Anodised OPERATIONAL SPECIFICATIONS Motion Detection Method X/Y Position Reporting Sample Rate Touchpad Active Area Size Mutual capacitance sensing Relative Up to 100 samples/sec. 130mm x 80mm ELECTRICAL SPECIFICATIONS Protocol Supply Voltage Supply Current Resolution (X, Y) Output Connector (CN1) USB 4.40 – 5.25V 60mA typical - default resolution setting, feedback idle 300mA peak - max resolution setting, feedback effects playing 960 x 720 counts (default setting) 12-way connector, Molex PicoBlade Series PN: 53261-1271

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS ENVIRONMENTAL SPECIFICATIONS Operating Temperature Operating Humidity Storage Temperature Vibration Operating Shock Sealing Level ESD EMC 0° to 70°C 5 to 95% relative humidity -40° to +85°C 2g, 10-500Hz, 1 octave/min, 10 sweep cycles (IEC 60068-2-6) 15g/11ms, ½ sine, 3 shocks in +ve and –ve direction, all 3 axes (IEC 60068-2-27) IP65 15kV air-discharge and 8kV contact discharge (IEC 61000-4-2) Radiated immunity - limits according to level 3 of IEC 61000-4-3 Radiated emissions to EN55022 class B OPERATING SYSTEM COMPATIBILITY USB Windows,...

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS TPP-55A1A6GESTURE OPERATIONS The touchpad incorporates an in-built gesture recognition engine designed to enhance user experience and increase the overall efficiency of user interaction with a host system. Use of gesture control enables the user to access frequented functions such as button clicks, scrolling and zooming by means of highly intuitive multi-finger operations. See table below for details on the available gesture actions. 1. Horizontal scroll and zoom functions are dependent on application support. The touchpad allows the user...

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS TPP-55A1A6 TOUCHPAD FEEDBACK The touchpad features haptic and audible feedback to provide a perceptible response to user interaction events. The table here below details the default event mapping for user feedback; Finger Taps (e.g. Left Mouse Click) Gesture Operations (e.g. Two finger Vertical Drag) Feature Buttons Active Area Edge Detection PANEL LOCK FEATURE The panel lock feature allows the touchpad to be locked / disabled for cleaning purposes. This can be achieved by tapping and holding the panel lock button for 3 seconds to toggle...

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS TPP-55A1A6 TOUCHPAD DIMENSION DRAWING :-.r Dimensional drawing specifies factory default orientation. All dimensions are in mm unless otherwise stated. Tolerances +/- 0.2mm unless otherwise stated. NSI bv • Kapittelstraat 18 • 3740 Bilzen • Belgium • +32 89 51 90 00 • [email protected] • www.nsi-be.com • ISO 9001

KEYBOARDS & POINTING DEVICES FOR THE MOST DEMANDING JOBS TPP-55A1A6 All dimensions are in mm unless otherwise stated. Tolerances +/- 0.2mm unless otherwise stated Please note that a STEP model is available on request. Please contact your local sales office for more information. Cursor Controls Ltd, Brunel Drive, EUROPEAN SALES & SERVICE CENTER Website : www.nsi-be.com E-mail : [email protected] NSI bv • Kapittelstraat 18 • 3740 Bilzen • Belgium • +32 89 51 90 00 • [email protected] • www.nsi-be.com • ISO 9001
