Nordhavn Booklet

Product catalog summary

Overview: The document provides detailed specifications for various models of Nordhavn yachts, ranging from 40 to 86 feet in length. Each model is designed for long-range ocean cruising, offering different features and capabilities to suit various needs.

Specifications:

Nordhavn 40/II: LOA 39' 9", Beam 14' 6", Draft 4' 9", Displacement 50,000 lbs, Fuel capacity 920 US gallons, Engine Lugger LP-668D, Approx. Range 2,500 nm at 7.5 knots.
Nordhavn 43: LOA 44' 6", Beam 14' 10", Draft 4' 11", Displacement 54,540 lbs, Fuel capacity 1,200 US gallons, Engine Lugger LP-668D, Approx. Range 2,800 nm at 7.8 knots.
Nordhavn 47: LOA 51' 2", Beam 16' 0", Draft 5' 8", Displacement 80,000 lbs, Fuel capacity 1,320 US gallons, Engine Lugger L-6108A, Approx. Range 2,800 nm at 8 knots.
Nordhavn 50: LOA 59' 0", Beam 18' 0", Draft 6' 4", Displacement 124,500 lbs, Fuel capacity 2,250 US gallons, Engine John Deere 6081AFM, Approx. Range 2,761 nm at 8.5 knots.
Nordhavn 55: LOA 51', Beam 16' 1", Draft 5' 11", Displacement 85,000 lbs, Fuel capacity 1,480 US gallons, Engine Lugger L1066T.2, Approx. Range 3,000 nm at 8 knots.
Nordhavn 57: LOA 60' 7", Beam 17' 7", Draft 6' 8", Displacement 122,000 lbs, Fuel capacity 2,000 US gallons, Engine Lugger L-6125A, Approx. Range 3,000 nm at 8.5 knots.
Nordhavn 62: LOA 68' 4", Beam 19' 4", Draft 7'0", Displacement 155,000 lbs, Fuel capacity 2,652 US gallons, Engine Lugger L-6125A, Approx. Range 3,000 nm at 9 knots.
Nordhavn 64: LOA 66' 3", Beam 20' 4", Draft 6' 8", Displacement 176,000 lbs, Fuel capacity 3,200 US gallons, Engine Detroit Diesel Series 60 14L, Approx. Range 2,820 nm at 9 knots.
Nordhavn 68: LOA 73' 8", Beam 21' 0", Draft 7' 6", Displacement 240,000 lbs, Fuel capacity 4,100 gallons, Engine Detroit Diesel Series 60 14L, Approx. Range 3,000 nm at 10 knots.
Nordhavn 72: LOA 71' 0", Beam 20' 4", Draft 6' 10", Displacement 186,000 lbs, Fuel capacity 3,200 gallons, Engine Detroit Diesel Series 60 14L, Approx. Range 3,000 nm at 9 knots.
Nordhavn 76: LOA 78'3", Beam 21'0", Draft 7'8", Displacement 252,000 lbs, Fuel capacity 4,030 gallons, Engine Detroit Diesel Series 60 14L, Approx. Range 3,200 nm at 10 knots.
Nordhavn 86: LOA 88' 1", Beam 24' 0", Draft 7' 4", Displacement 327,539 lbs, Fuel capacity 7,000 gallons, Twin Engines Lugger 1276A2, Approx. Range 4,000 nm at 10.5 knots.

Construction and Design: The Nordhavn 86 is highlighted as the flagship model, designed for the megayacht market with a focus on luxury and functionality. It features a fiberglass construction with a high-quality finish and is built to international standards, including ABS certification.

Conclusion: Nordhavn yachts are designed for extensive ocean cruising, offering a range of models with varying specifications to meet different needs. The Nordhavn 86 represents the pinnacle of their design, combining luxury with advanced engineering.

Catalog excerpts

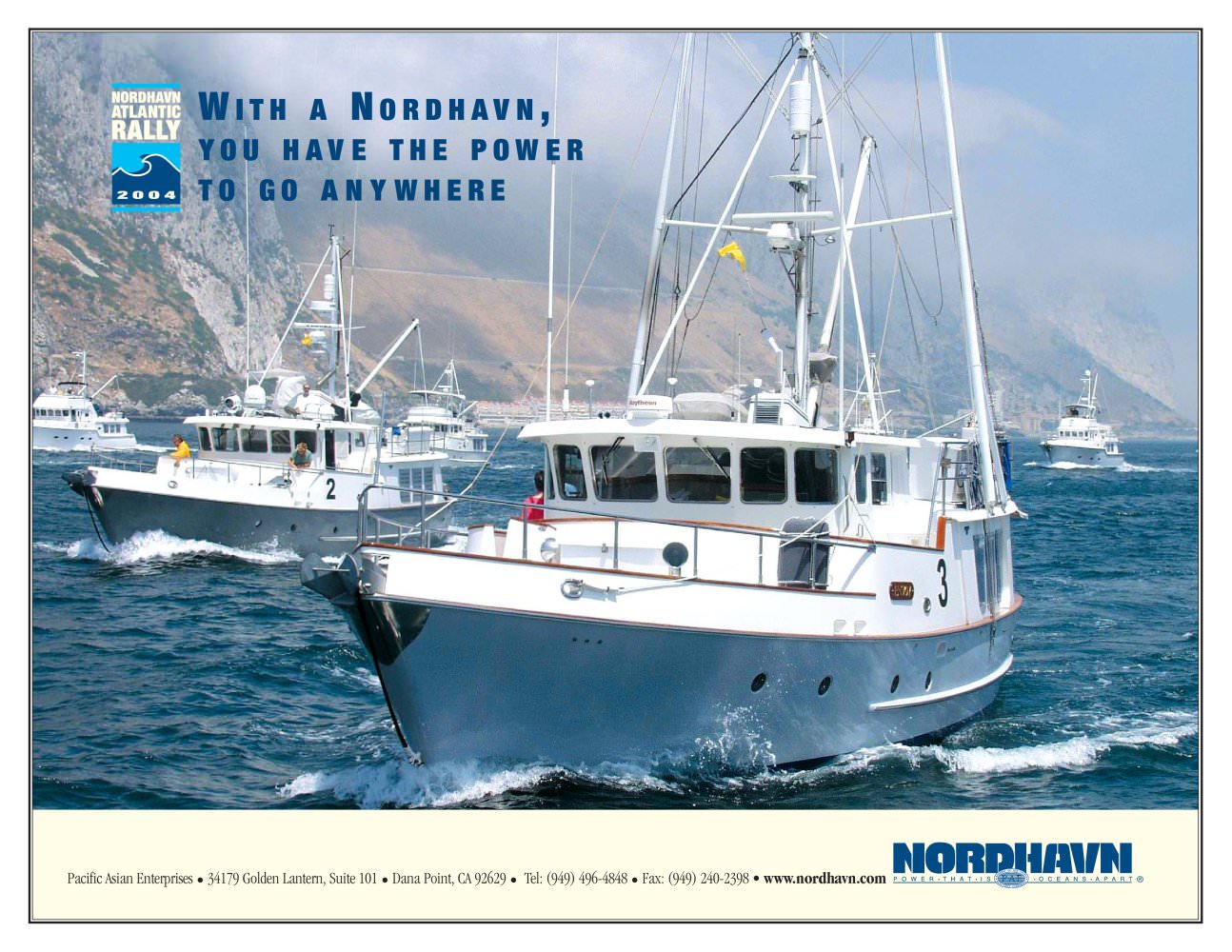

A NORDHAV N, YOU HAV E THE POW ER TO GO ANY WHERE WITH Pacific Asian Enterprises • 34179 Golden Lantern, Suite 101 • Dana Point, CA 92629 • Tel: (949) 496-4848 • Fax: (949) 240-2398 • www.nordhavn.com ®

Open the catalog to page 1

WITH TWELVE MODELS TO CHOOSE FROM, Fly bridge Models Available Wheelhouse Detail Approx. Range 2,500 nm @ 7.5 kfcs. Fly bridge Models Available Wheelhouse Detail Displ. 54,540 lbs./24.74 T Water 300 US gals. / 1,136 L HP 105hp@ 2,200rpm Fuel 1,200 US gals. / 4,542 L Engine Lugger LP-668D Approx. Range 2,800nm @ 7.8 kts.

Open the catalog to page 2

Flybridge Models Available Wheelhouse Detail Displ. 85,000 lbs./ 38.56 T Water 400 US gals. / 1,514 L HP 173hp@2,400rpm Fuel 1,480 US gals. / 5,602 L Engine Lugger L1066T.2 Approx.Range 3,000 nm @ 8 kts. Flybridge Models Available Wheelhouse Detail Displ. 80,000 lbs. / 36.29 T Water 260 US gals. / 984 L HP 300 hp Fuel 1,320 US gals./4,997L Engine LuggerL-6IO8A Approx.Range 2,800nm@8 kts. Flybridge Models Standard Wheelhouse Detail Displ. 124,500 lbs./56.47 T Water 6OO US gals. /2,271 L HP 330hp@2,300rpm Fuel 2,250 US gals. / 8,517 L Engine John Deere 6O8IAFM Approx.Range 2,761 nm @ 8.5 kts.

Open the catalog to page 3

Fly bridge Models Standard Wheelhouse Detail Displ. 122,000 lbs./ 55.34 T Water 300 US gals. / 1,136 L HP 325 hp@2,100 rpm Fuel 2,000 US gals. / 7,571 L Engine Lugger L-6125A Approx.Range 3,[email protected] kts. Wheelhouse Detail Displ. 155,000 lbs./70.31 T Water 525 US gals./ 1,5 Fuel 2,652 US gals. / 10,039 L Engine Lugger L-6125A Flybridge Models Standard Utility Room Displ. 176,000 lbs./ 79-83 T Water 500 US gals./ 1,893 L HP 400hp@ 1,800rpm Fuel 3,200 US gals./12,113 L Engine Detroit Diesel Series 60 14L Approx.Range 2,820 nm@ 9 kts. Interior drawings show our most popular arrangements. For alternative...

Open the catalog to page 4

NORDHAVN 68 68 Flybridge Models Standard Lower Deck Interior Wheelhouse Detail Specifications: LOA LWL 71' 0" / 21.64 M 63' 2" / 19.25 M Beam Draft 20' 4" / 6.20 M 6' 10" / 2.08 M Displ. 186,000 lbs. / 84.37 T Fuel 3,200 gals. / 12,113 L Water 575 gals. / 2,177 L Engine Detriot Diesel Series 60 14L HP 400 hp @ 1,800 rpm Approx. Range 3,000 nm @ 9 kts. NORDHAVN 72 72 Wheelhouse Detail Lower Deck Interior Flybridge Models Standard Wheelhouse Detail Specifications: LOA LWL 73' 8" / 22.45 M 65' 0" / 19.81 M Beam Draft 21' 0" / 6.40 M 7' 6" / 2.29 M Displ. 240,000 lbs. / 108.86 T Fuel 4,100 gals....

Open the catalog to page 5

Coming off the unparalleled success of the Nordhavn 76 with its sophisticated systems and construction features, PAE.'s design, engineering and manufacturing team was ready for a larger vessel. Thus, the Nordhavn 86 was conceived, and in 2006, she will take over as the new flagship of the Nordhavn line. At 86 feet, this new Nordhavn represents PAE.'s firm entry into the megayacht market. She is more than impressive at first sight, and her full-load displacement of over 325,000 lbs. allows for comparisons to vessels well over 100 feet. Building on the experience of hundreds of thousands of ocean...

Open the catalog to page 6
