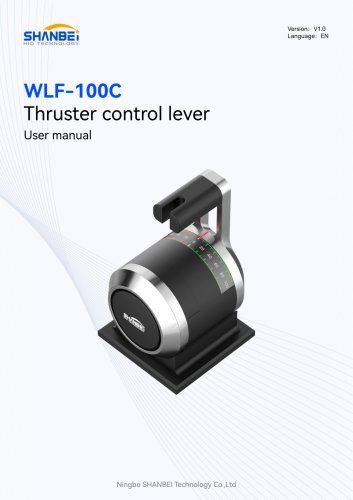

WLF-100C_Thruster control lever_User manual_EN_V1.0
19Pages

User manual Ningbo SHANBEI Technology Co.,Ltd

Warning: Before using this product, please refer to the important safety information in the user manual and review all warnings, limitations and disclaimers. This product is no substitute for proper training and careful seamanship. Proper installation and proper use of the equipment is the responsibility of the owner to avoid accidents, personal injury or property damage. The user of this product is solely responsible for compliance with maritime safety practices. The owner is solely responsible for installing and using the equipment in a manner that will not cause accidents, personal...

The WLF-100C series thruster control lever are used to operate side thrusters. The product has the following characteristics: -Aluminum alloy shell, main body diameter 90mm, compact structure, compact transmission; -With light scale indicator, easy to use, flexible damping adjustment, feel comfortable; -Features Customized, built for you, options include: mounting panel, scale panel, handle grip lever, potentiometer level, embedded switch, motor drive, front drive, rear drive, etc., as shown in Table 1.1. Base customization item Products have a variety of appearance types that customers can...

According to the number of handles, the products are divided into single-side push 100C1 and double-side push 100C2, as shown in Figure 1.2. When selecting, we should inform our sales staff according to personal needs to avoid unnecessary economic losses!

1.5 Product wiring diagram Each side of the handle provides a separate PCB board, although this is a multi-in-one circuit board, but the production has been fixed in accordance with the requirements of the order to solidify the function (including output signal and dimming signal), each side contains 16 terminals, where P1-P3 is the potentiometer output signal (if any), P4~P5 is the output of 4~20mA (if any), P6 to P7 are commissioning ports, P11 to P12 are dimming ports, and PI3 to PI4 are DC24V power ports.

shaft is made of stainless steel, and the interior is driven by copper gear. 2. The scale range is 100-0-100, the background color is left red and right green, the scale line and digital white, the backlight is always on, and the brightness can be adjusted by an external dimmer; 3. The operating moment is constant, the rotating moment and the feel of the caton point are adjustable; 4. Potentiometer brand Japan Sakae, model FCP22A, resistance tolerance ±10%, independent linear tolerance 1.0%; 5. Output mode: direct potentiometer linear output, linear relationship with the scale, the...

2. Mounting panel: The standard mounting panel size of the handle is 96*96mm, in order to reduce the size, you can cancel the mounting panel, the product appearance of the hole size is shown in Figure 2.3:

4. Film scale: The film pasted on the handle is used to indicate the gear position, and different designs can be selected according to the type of propeller. 5. Gear feedback: The handle can provide stuck feedback at a specific gear, such as in the middle zero position or any other gear, and the default output is only stuck feedback at zero position. 6. Output signal: The handle can provide a variety of optional output signals for the control system, including the potentiometer direct output, 4~20mA. Please refer to Figure 1.5 for the connection of the direct output type of potentiometer,...

4~20mA output & DC0~24V dimming wiring diagram lout+ lout- Each handle provides 16 terminal connections. Terminal 1/2/3 output handle potentiometer signal is used to calculate the current Angle; Terminal 10/11/12 connected to dimmer potentiometer, this part is optional; Terminals 13/14 are used to connect 24V DC power supplies, as shown in Figure 2.8.

1. Remove the four sets of installation accessories (nuts, spring washers, flat washers), as shown in Figure 3.1. Do not remove the installation studs. Set aside 4 sets of accessories, remember not to lose. Spring washers, flat washers and nuts 2. Place the handle vertically in the opening of the mounting plate as shown in the lower right corner of Figure 3.2, and align the screw with the hole B. Rotate or tilt the handle into the hole when it meets the protruding part.

4. Install the handle to the mounting plate and connect electrical cables. After the connection is complete, ensure that the external connection is firm and reliable. 5. Check the external cables, which should be connected normally; The backlight should emit light normally; Push the handle lever, the switch can complete the normal on-off action. After commissioning, disconnect the power supply.

1. The initial position of the hand on the handle is in the middle (0 scale). At this time, the resistance value corresponding to the advance direction of the potentiometer (terminals 1 and 2) is 2.5KQ± 10%. 2. Switch on the power supply, connect the cables as shown in Figure 1.5, push the handle rod, and the resistance reading between terminals 1 and 2 is the output value of continuous linear change in Figure 2.1. The backlight emits normally. After the inspection is complete, place the handle lever at 0 scale. 3. The operation handle should be pushed and rotated smoothly and slowly to...

This product has been put into operation since the use, basically no fault, with our statistics, the after-sales problem is basically due to wiring errors, resulting in normal use, in addition, there is no technical fault. Customers in the use of the process, if you find technical problems, please promptly communicate with our technical personnel. (Note: Each handle has a unique factory number)

6.1 Safety protection devices and precautions 1. In the important position of this product, the fastening seals have been processed before leaving the factory, and shall not be disassembled without permission. If the seals are damaged, any product quality problems will be borne by the buyer. 2. The damping part used in this product is a loss part, the warranty period is 1 year, effective from the date of delivery; During the warranty period, there is a change in propulsion damping, which can not be used normally or seriously affect the operation, and we will maintain it free of charge. If...
