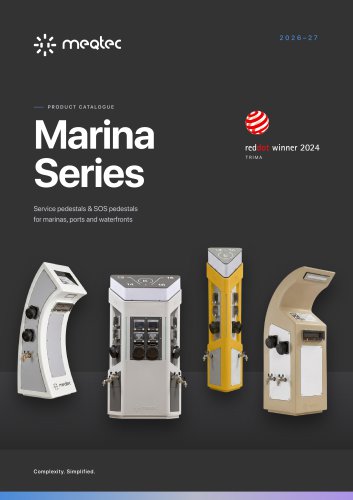

Service pedestals & SOS pedestals for marinas, ports and waterfronts Complexity. Simplified.

TRIMA AT ALJAR MARINA, YANBU · SAUDI ARABIA Meqtec designs and manufactures smart service pedestals that bring power, water and safety to the berth — and make them easy to manage for the marina and easy to use for the boat owner. 5service pedestal series CONTENTS Why Meqtec Range overview Trima XL Curva Colours & customisation Quality & standards Every Meqtec pedestal unites award-winning design with practical engineering. Bodies are moulded from UV-protected, fully recyclable highdensity polyethylene, sealed to IP66 and tested against salt mist, solar radiation, impact and extreme temperatures....

One soul: design, technology and simplicity in every pedestal. Wireless or wired RFID & mobile together Metering on every outlet Central office software Segregated compartments Numerous colours Branded components Fully recyclable body Pedestals join the marina’s local WiFi or connect by Cat6 Ethernet. No gateway required. MID-certified energy meter and individual water metering per outlet. Sealed enclosure, IP67 sockets and impact-resistant body for harsh marine conditions. Eleven body colours as standard and exclusive finishes — match your marina identity. Boat owners connect to the pedestal...

Control every berth from the office. Let boat owners use just their phone. Meqtec pedestals connect directly to the marina’s own office software over the local network. There is no cloud platform, no subscription and no third-party server between the marina and its pedestals — the marina stays in full control of its data and its payment collection. Meqtec pedestals WiFi direct, browser Local network Marina office Meqtec Back Office Metering · prepaid remote on/off per outlet RFID card No cloud · no app · no internet connection required Remote switching User & credit management Electricity and...

Five service pedestal series. One system behind them. All series share the same metering, prepaid and management technology, the same marine-grade components and the same factory pre-configuration. Choose by capacity, form and finish. Body Power & water outlets Socket rating D × W × H (mm) Weight Trima Trima XL Neca Compact flagship · High capacity, double- Maximum Red Dot 2024 Curva Bellia Widest options, touch Handcrafted metal screen HDPE / stainless Trima — compact, light, and our Red Dot awarded flagship. Trima XL, Neca, Curva and Bellia — all up to 250 A. Choose by form and finish. Metal...

- SERVICE PEDESTAL COMPACT TECHNOLOGY The best choice for up to two power and water outlets: an eye-catching compact design that leaves out no feature. Trima is Meqtec's flagship and the winner of the Red Dot Design Award 2024. Its triangular body carries a 360° light head and a vertical neon strip, so each pedestal doubles as berth lighting — while the lightweight 14 kg HDPE body makes installation and service quick on any pontoon. power & water outlets max. socket rating light HDPE body enclosure, IK10

SIDE VIEW T R I M A · T E C H N I C A L S P E C I F I C AT I O N S Body High-density polyethylene, UV protected Dimensions (D × W × H) 250 × 300 × 1160 mm Weight 14 kg Operating temperature −30 °C to +60 °C Protection Enclosure IP66 · sockets IP67 Impact resistance IK10 Outlets Power 1–2 · water 1–2 Sockets 16 A single-phase to 125 A three-phase, IEC 60309 (CEE) Voltage 115 – 400 V · 50/60 Hz Protection per outlet Separate overload & fault-current protection Water taps 1/2″ valve, quick coupling Lighting 360° low-energy LED with photocell Metering MID-certified energy meter and water meter per...

- SERVICE PEDESTAL Ready to serve your highest needs: the most powerful member of the Trima family, with up to four outlets on a double-sided body. Trima XL brings the Trima design language to high-capacity berths. Each power outlet has its own metering and switching and each tap its own water meter and solenoid valve, all managed from the office software. The moulded HDPE body is UV protected, IP66 sealed and IK10 rated for demanding marine environments. power & water outlets max. socket rating HDPE body enclosure, IK10

T R I M A X L · T E C H N I C A L S P E C I F I C AT I O N S Body High-density polyethylene, UV protected Dimensions (D × W × H) 250 × 600 × 1160 mm Weight 25 kg Operating temperature −30 °C to +60 °C Protection Enclosure IP66 · sockets IP67 Impact resistance IK10 Outlets Power 1–4 · water 1–4 Sockets 16 A single-phase to 250 A three-phase, IEC 60309 (CEE) Voltage 115 – 400 V · 50/60 Hz Protection per outlet Separate overload & fault-current protection Water taps 1/2″ valve, quick coupling Lighting 360° low-energy LED with photocell, brightness adjustable Metering MID-certified energy meter and...

- SERVICE PEDESTAL No need to choose between aesthetics and technology: Neca offers the highest level of customisation on a fully featured service pedestal. With its sculpted canopy and integrated light, Neca is designed for marinas that want a distinctive look on the pontoon. It handles currents up to 250 A — and up to four power and water outlets, from private yachts to superyacht berths. power & water outlets max. socket rating HDPE body enclosure, IK10

SIDE VIEW N E C A · T E C H N I C A L S P E C I F I C AT I O N S Body High-density polyethylene, UV protected Dimensions (D × W × H) 395 × 350 × 1200 mm Weight 20 kg Operating temperature −30 °C to +60 °C Protection Enclosure IP66 · sockets IP67 Impact resistance IK10 Outlets Power 1–4 · water 1–4 Sockets 16 A single-phase to 250 A three-phase, IEC 60309 (CEE) Voltage 115 – 400 V · 50/60 Hz Protection per outlet Separate overload & fault-current protection Water taps 1/2″ valve, quick coupling Lighting Low-energy LED with photocell Metering MID-certified energy meter and water meter per outlet,...
