MM5001 - Ballast Tank Gas Detection

Product catalog summary

Overview: The MM5001™ Gas Sampling System represents a significant advancement in gas detection technology. It features a central control cabinet with a touch screen panel for displaying gas concentrations and alarm statuses. The system includes a main PLC controller, gas analyser, and a pre-sampling circuit, utilizing a calibration-free, high-performance infra-red sensor for reliable flammable gas analysis.

Compliance: The system is fully compliant with IACS UR F43, Exxon MOBIL MESC 2002 term charter, Chapter 8.

Key Features:

Calibration-free infra-red gas sensors
Fail-safe PLC control system
Programmable operation during ballasting
Supports up to 48 measuring points per cabinet
Robust flow fail detection system
Automatic self-cleaning of sample lines
Pre-sampling purge to reduce sample times

Specifications:

Sample Points: 1-48 per system, plus up to 16 fixed point sensors
Sampling Time: Adjustable with integral pre-sampling
Measurement Range: Flammable gas (0-100% LEL, 0-100% V/V), Oxygen gas (0-25% VOL), H2S (0-50ppm), CO and other gases
Power Supply: 110/230Vac 50/60Hz @ 5A
Power Consumption: 100W (alarm condition)
LED Indicators: Various alarms and system statuses
User Interface: 3.8” touchscreen with 6 user keys
Alarm Settings: Fully adjustable between zero & full scale
Relay Outputs: Multiple sensor and system alarms
Internal Power Supply: 24V dc. @ 5A
Audible Alarm: 98dB @ 38cm
Dimensions: H 1000 x W 800 x D 400mm
Weight: Approximately 99kg
Finish: Epoxy coated steel RAL 7035
Ingress Protection: IP55
Fixing Details: Wall mount with 4 x M8 fasteners
Sample Lines: Various materials, typical sizes 10mm OD / 8mm ID, 8mm OD / 6mm ID
Sample Particulate Filter: Optional in-line or end of line filters
Sample Vent: 12mm/10mm compression fitting + flame arrestor
Sample Line Blowback: Optional facility with fixed/adjustable controls
Pump: High reliability double-headed Vacuum Diaphragm pump
Operating Temperature: -40°C to +70°C
Response Time: Typically <20 seconds

Catalog excerpts

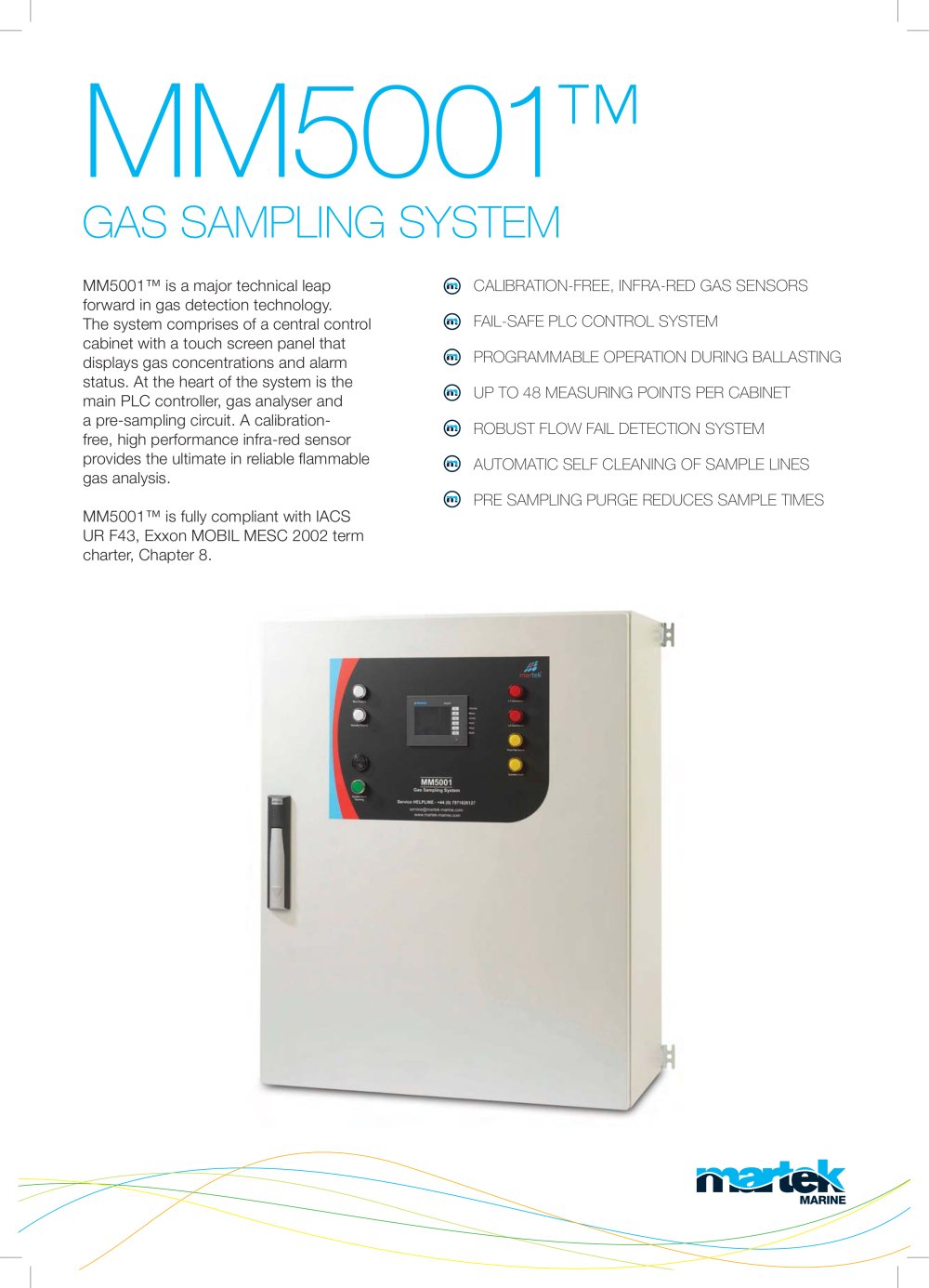

MM5001 ™ is a major technical leap forward in gas detection technology. The system comprises of a central control cabinet with a touch screen panel that displays gas concentrations and alarm status. At the heart of the system is the main PLC controller, gas analyser and a pre-sampling circuit. A calibration- free, high performance infra-red sensor provides the ultimate in reliable flammable MM5001 ™ is fully compliant with IACS UR F43, Exxon MOBIL MESC 2002 term © CALIBRATION-FREE, INFRA-RED GAS SENSORS ® FAIL-SAFE PLC CONTROL SYSTEM © PROGRAMMABLE OPERATION DURING BALLASTING ® UP TO 48 MEASURING POINTS PER CABINET ® ROBUST FLOW FAIL DETECTION SYSTEM © AUTOMATIC SELF CLEANING OF SAMPLE LINES © PRE SAMPLING PURGE REDUCES SAMPLE TIMES
