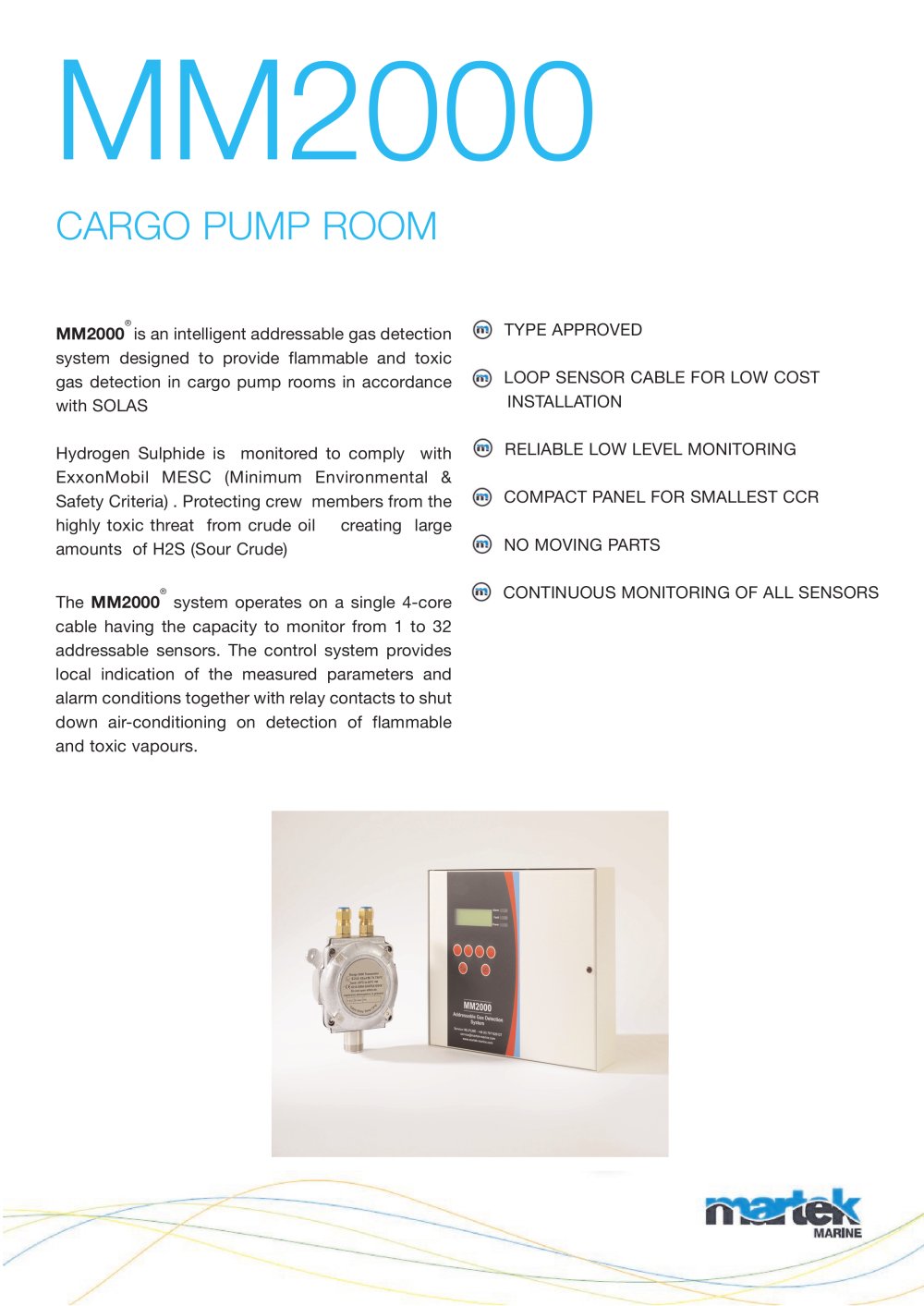

MM2000 CARGO PUMP ROOM & ACCOMODATION AREA GAS DETECTION ® MM2000 is an intelligent addressable gas detection system designed to provide flammable and toxic gas detection in cargo pump rooms in accordance with SOLAS Hydrogen Sulphide is monitored to comply with ExxonMobil MESC (Minimum Environmental & Safety Criteria) . Protecting crew members from the highly toxic threat from crude oil creating large amounts of H2S (Sour Crude) ® The MM2000 system operates on a single 4-core cable having the capacity to monitor from 1 to 32 addressable sensors. The control system provides local indication of the measured parameters and alarm conditions together with relay contacts to shut down air-conditioning on detection of flammable and toxic vapours. TYPE APPROVED LOOP SENSOR CABLE FOR LOW COST INSTALLATION RELIABLE LOW LEVEL MONITORING COMPACT PANEL FOR SMALLEST CCR NO MOVING PARTS CONTINUOUS MONITORING OF ALL SENSORS

rECHNICAL SPECIFICATION Sensor Points User Interface Ingress Protection Local Alarm Cable Details Panel Dimensions Fixing Detail Cable Entry Lloyds Type Approval Flammable, toxic (eg: H2S), oxygen 4 line alphanumeric LCD indicating: Sensor address; gas type; concentration (rising or falling); peak hold; alarm status; system fault; line fault; line inhibit Twin Green LED's, Twin Amber LED's Menu driven via LCD and 6No. panel mounted membrane pushbuttons with security 3 alarm levels per channel 16 user programmable volt-free SPCO relays for shutting down for machinery as required Common fault relay...
