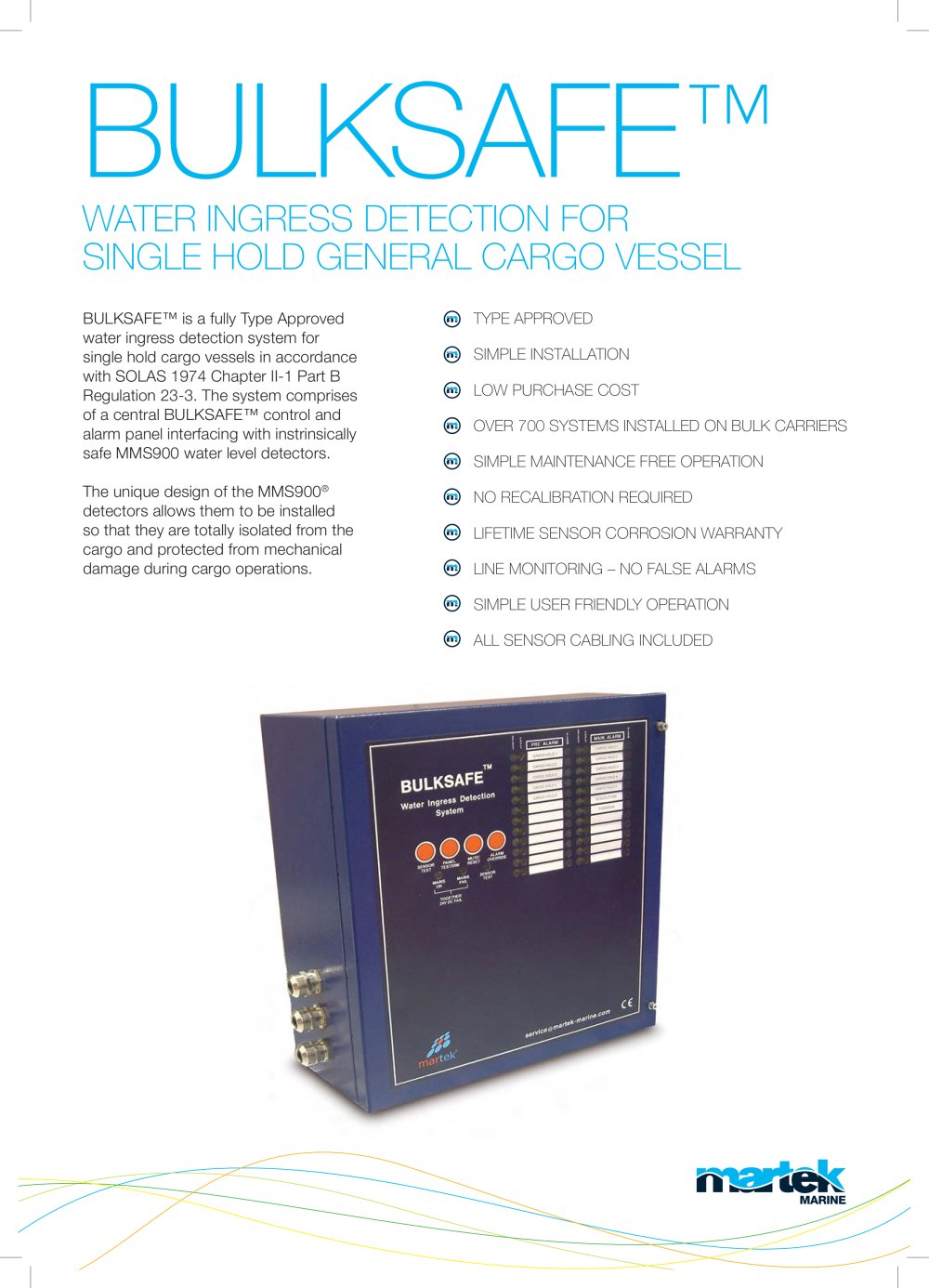

Bulksafe - General Cargo Water Level Detection - 1

WATER INGRESS DETECTION FOR SINGLE HOLD GENERAL CARGO VESSEL BULKSAFE™ is a fully Type Approved water ingress detection system for single hold cargo vessels in accordance with SOLAS 1974 Chapter 11-1 Part B Regulation 23-3. The system comprises of a central BULKSAFE™ control and alarm panel interfacing with instrinsically safe MMS900 water level detectors. detectors allows them to be installed so that they are totally isolated from the cargo and protected from mechanical damage during cargo operations. ® OVER 700 SYSTEMS INSTALLED ON BULK CARRIERS ® SIMPLE MAINTENANCE FREE OPERATION © LIFETIME SENSOR CORROSION WARRANTY ® LINE MONITORING - NO FALSE ALARMS © SIMPLE USER FRIENDLY OPERATION ® ALL SENSOR CABLING INCLUDED

Open the catalog to page 1
Bulksafe - General Cargo Water Level Detection - 2

MMS900 LEVEL SWITCH ASSEMBLY Fixing Detail Dust Protection Switching Output Switch Setting Switch Rating Screws into standard 2 1/2'' n-board inert hydrophobic filter Hermetically sealed reed type Normally closed, opening on alarm With optional Zener safety barriers Bonded Cable In-Situ Testing Filter Cleaning Test/Cleaning Port Cable Monitoring Jfetime warranty against failure Simple apparatus 2No, 6mm o.d, Push fit nylon fittings =ault alarm generated for short BULKSAFE™ CONTROL PANEL Input Capacity Input Identification Safety barriers Alarm Indicators Alarm Override Audible Alarm Main...

Open the catalog to page 2
