Glenan - red/white - horizontal fitting Ø 60 mm (2.3in) - matt black
Glenan - red/white - horizontal fitting Ø 60 mm (2.3in) - matt black
The document provides technical specifications for the Glenan LED Chart Table Lamp, available in both horizontal and vertical fittings. The lamp is designed for use in marine environments, offering large beam diffusion and compatibility with VHF AIS systems.
Specifications:
- Voltage: 9 - 30 VDC
- Power Consumption: 2.8 W (USB off)
- Luminous Power: 135 lm/80 lm
- Color Temperature: 3100 K (Warm white + red)
- Materials: Aluminium + PMMA
- Beam Angle: 120°
- Weight: 170 g
- Warranty: 2 years
Features:
- Available with or without USB ports (USB A or USB C, 3 A max)
- Dimmable settings
- Flexible neoprene tubing available in black or brown
- Supplied with 10 cm of electrical wire
Mounting Options:
- Horizontal fitting with two screws included
- Vertical fitting offers better resistance to boat movements, suitable for mounting against a bulkhead
Material and Finish Options:
- Polished stainless steel or matt black aluminium
Additional Information:
The lamp is designed for chart tables with large beam diffusion, ensuring optimal lighting conditions for navigation and other tasks.
Catalog excerpts

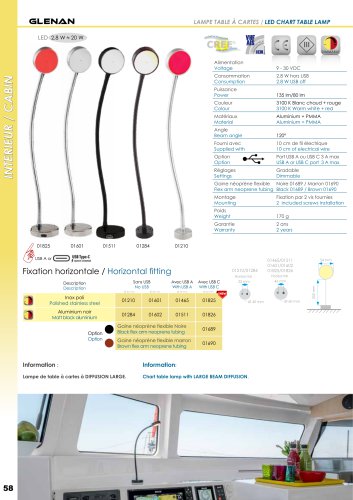

LAMPE TABLE À CARTES / LED CHART TABLE LAMP INTERIEUR / CABIN Alimentation Voltage Consommation Consumption Puissance Power Couleur Colour 3100 K Blanc chaud + rouge 3100 K Warm white + red Matériaux Material Aluminium + PMMA Aluminium + PMMA Angle Beam angle Fourni avec Supplied with 10 cm de fil électrique 10 cm of electrical wire Option Option Réglages Settings Gradable Dimmable Gaine néoprène flexible Noire 01689 / Marron 01690 Flex arm neoprene tubing Black 01689 / Brown 01690 Fixation par 2 vis fournies 2 included screws installation Poids Weight Garantie Warranty Fixation horizontale / Horizontal fitting Sans USB No USB Description Description Inox poli Polished stainless steel Aluminium noir Matt black aluminium Option Option Gaine néoprène flexible Noire Black flex arm neoprene tubing Gaine néoprène flexible marron Brown flex arm neoprene tubing Lampe de table à cartes à DIFFUSION LARGE. Chart table lamp with LARGE BEAM DIFFUSION.
Open the catalog to page 1
LAMPE TABLE À CARTES / LED CHART TABLE LAMP Consommation Consumption Puissance Power Couleur Colour 3100 K Blanc chaud + rouge 3100 K Warm white + red Matériaux Material Aluminium + PMMA Aluminium + PMMA Angle Beam angle Fourni avec Supplied with 10 cm de fil électrique 10 cm of electrical wire Quick charge 3 A max 3 A max Quick charge Réglages Settings Gradable Dimmable INTERIEUR / CABIN Alimentation Voltage Gaine néoprène flexible Noire 01689 / Marron 01690 Flex arm neoprene tubing Black 01689 / Brown 01690 Montage Mounting Fixation par 2 vis fournies 2 included screws installation Poids Weight...
