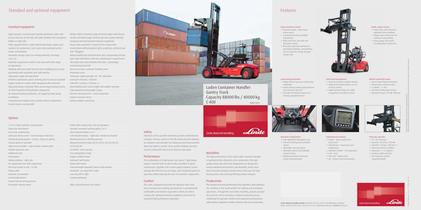

Standard and optional equipment Standard equipment High mounted, rearward and centrally positioned cabin with access staircase on left side, full cabin platform and emergency ladder on right side Fully eguipped driver's cabin with hinged doors; wipers and washers for windscreen, rear screen and overhead screen, Abundant storage space for writing materials, beverage Hydraulic-suspension comfort-class seat with wide range Hydraulic pilot line multi-function lever enabling precise load positioning with automatic anti-stall function Adjustable-angle steering wheel Effortless hydrostatic power steering; lock-to-lock at standstill Engine intake air cleaner with integrated safety element High performance hydraulic filters preserving maximum purity of oil for long life of all hydraulic components On-demand working hydraulics, oil supply by multi-pump Comprehensive display units; monitor all key components Central master warning light 3, 4 or 5 high container stacking mast Slope pile attachment Cabin pre-heat system - fuel burning or electrical Central greasing system - chassis, chassis & gantry, chassis gantry & spreader High level air intake - cabin (heatersystem only) Heated operators seat Additional seat Tinted glass Sliding window-rightside Air suspension seat with compressor Electrical socket in cab - 12 volt Tilting cabin Hydraulic accumulator Load weight device Heated reverse driving mirrors Panoramic interior mirror Modern QMS II Cummins stage III diesel engine with electro- nically controlled single-rail fuel injection system meeting European and international emission regulations Heavy-duty automatic 4-speed electric powershift transmission with integrated safety protection; declutch and anti "Plugging" Robust double hub reduction drive axle, incorporating oil bath type multi-disk brakes with zero maintenance reguirements Tilt system anti-sway hydraulic lock valve - preventing unintentioned load tilt Reverse section, container handling mast Pneumatic tyres Telescopic toplift spreader 20'-40' extension Road lighting with reverse lights and audible warning Cab mounted working lights 2 pairs Reverse driving mirrors - chassis mounted Interior rearview mirror Battery isolator connectors Radio with compact disc unit and speakers Spreader mounted working lights 2 or 4 Mast mounted lights 2 or 4 Cab mounted mirror - right side; standard or heated Rotating beacon or flashing beacon Manual extension stops 20/24/40 or 20/24/30/40 Engine coolant heater Hydraulic tank heater Brake tank heater Counterweight mounted camera with monitor Handrails - on steps left & right Low step left & right Custom paintwork Other special features on reguest Interlocks in the spreader twistlocks prevent unintentioned container release; sensors in the lift system prevent damage to containers and spreader by cutting-out lowering functions when the toplift is seated. Drive system inhibitors prevent incorrect downshift and reverse direction operation. The combination of a high power, low speed - high torgue engine, matched with an electrically controlled 4-speed transmission, together with a multi-pump hydraulic system, manage the efficient use of energy, with maximised speed of operation while reducing the wear on hydraulic components. The cabin, eguipped to provide the operator with a low stress and spacious working environment, is provided with comfortable and intuitive ergonomics which are vital in creating the optimised working conditions necessary for sustained high performance operation. Linde Material Handling The high performance of the Linde Laden Container Handler is matched by the robustness of its construction. The high guality, heavy duty drive line components are designed to ensure maximum performance and durability. Heavy-duty main structural elements provide stress relief over the load bearing areas, thus ensuring lifelong product integrity. The elevated rearward positioning of the operators cabin optimises the visibility to the load handler for loading and unloading operations, through the mast when travelling, and also around the machine when working in confined operating areas; Combining the operator comfort and component performance with intuitive ergonomics further enhances the ease of operation. Power and drive system -> Powerful engine - high torque -> 4 speed electrically controlled -> Wide-track drive axle with wet disk brake system -> Drive line protection with built-in operational inhibitors, downshifting, reverse direction change and gear change ratio Load sensing hydraulics Highly efficient spur gear multi-pump Switch-phased pumps supply metered Extended oil change frequency by reducing operational wear Linde load management -> Head-up twistlock condition display -> duplicated twistlock display on rear -> toplift mounted 'flags' forvisible recognition of twistlock position Operators compartment -> Fully adjustable high quality seat -> Forced air heating and ventilation -> Adjustable steering column -> Adustable armrest and hydraulic control console -> Optimised position of operator control instrumentation Comprehensive display -> Hydraulic & Brake - oil temperature -> Electrical - battery state -> Air-cleaner restriction warning Stable, robust chassis -> Heavy duty main chassis for optimised stress handling -> Unique mast construction for container load handling -> Heavy gauge side panels providing impact protection Modern powerfull engine -> Diesel motor Stage III emissions Telescopic spreader -> internal extension cylinders -> Slope pile +/- 5,5 degrees -> twistlock safety interlock suspended toplift Linde Material Handling GmbH, Postfach 10 01 36, 63701 Aschaffenburg, Germany Phone +49.6021.99-0, Fax +49.6021.99-1570, www.llnde-mh.com, ¡[email protected]

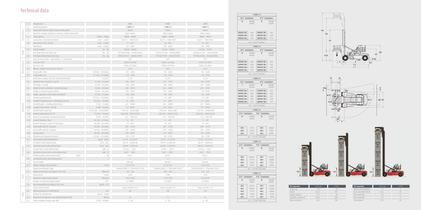

Technical data Model designation Power unit: battery, diesel, LP gas, mains power Operation: manual, pedestrian, stand-on, seated, order picker Load capacity Load center, retracted/extended Axle centre to face of unit 2.2 Axle load with load, front/rear 2.3 Axle load without load, front/rear 3.1 Tyres, front/rear (SE = superelastic, P = pneumatic) 3.2 Tyre size, front 3.3 Tyre size, rear 3.5 Wheels, number, front/rear (x=driven) Tread width, front Tread width, rear 4.2 Heigth of mast, lowered - overall 4.7 Height of overhead guard (cabin) 4.8 Height, operator's seat/stand-on platform 4.19 Overall...
