HIGH-PERFORMANCE TRIM TAB SYSTEM

Product catalog summary

Introduction
Lenco Marine introduces its new high-performance electric trim tabs, designed to enhance boat performance by reducing drag and spray. These trim tabs are available in various sizes: 21" x 14", 18" x 12", 14" x 12", and 25" x 14".

Specifications

Constructed from 7 gauge flat-304 electro-polished stainless steel blades with 3.75" zinc anodes for ultimate corrosion resistance and a sleek look.
Features a full transom back plate with adjustable C-channel and 3/8" stainless steel bolts.
Equipped with extreme duty actuators made from 316 stainless steel billet and 3/8" stainless steel bolts.
Includes 3/8" stainless steel hinge pins.
Available in single and dual actuator applications.

Aftermarket Kits

Single actuator system kits available for 14" x 12" (#15048-101) and 18" x 12" (#15049-101).
Each kit includes two trim tab blades, two 12-volt actuators with 6-foot leads, and Deutsch connectors. Mounting hardware is customer-supplied.
Switches and additional actuator extension harnesses are sold separately, available in lengths of 7', 14', 20', 26', or 32'.

OEM Kits

Custom specified for each OEM, with dual actuator systems available for 21" x 14" (#15050-101) and 25" x 14" (#15051-101).

Additional Features

Actuator extension harnesses are available for complete system setup.
Optional waterproof tactile L.E.D. Indicator Switch Kit includes built-in retractor, high-intensity L.E.D. displays, photo eye for optimal viewing, backlit keypad, and self-check feature.
Switches are sold separately, with options for single (#123SC) and dual (#123SCDR) configurations.

Conclusion
Lenco Marine's electric trim tabs are proudly made in the U.S.A. and have been enhancing boat performance since 1986. For more information, contact Lenco Marine at 772-288-2662.

Catalog excerpts

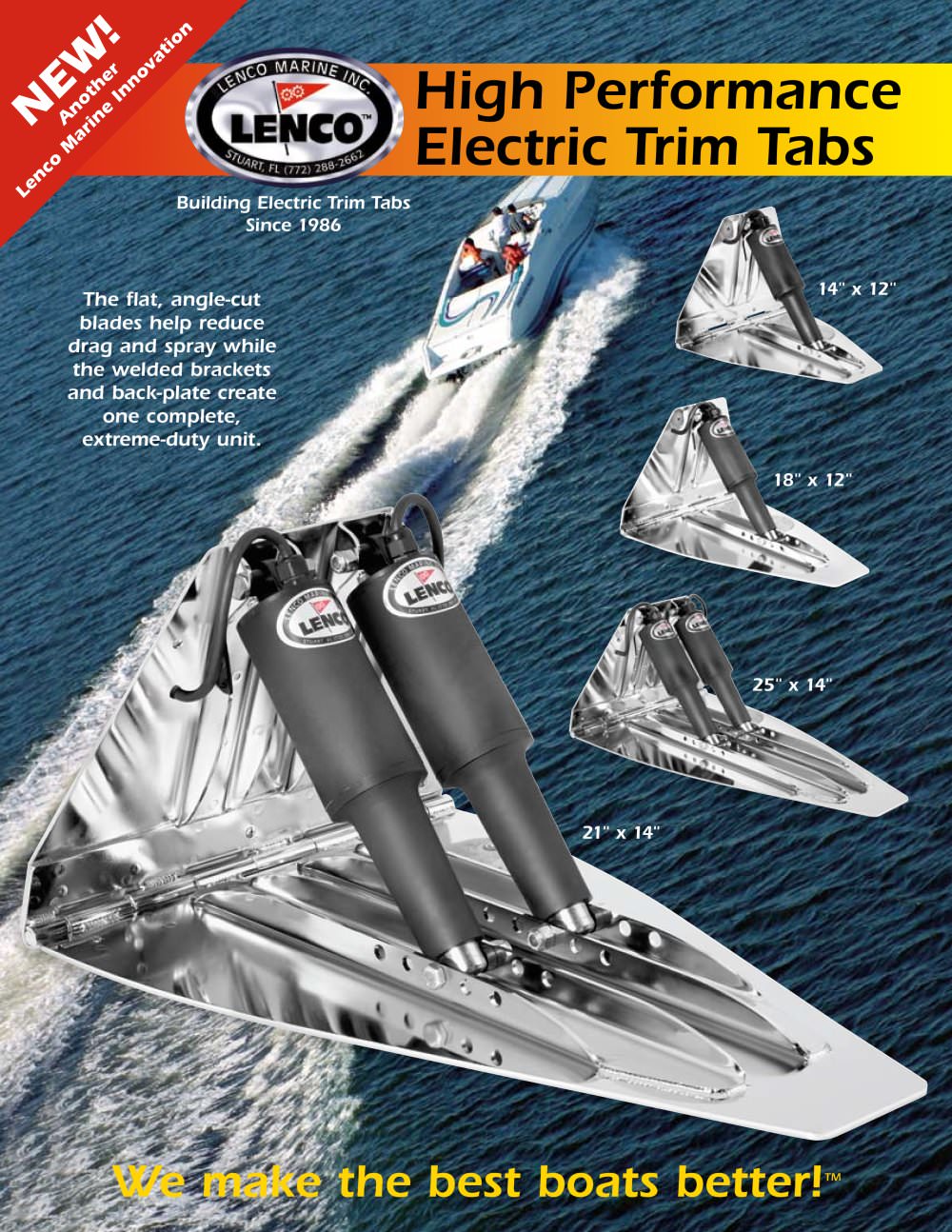

io n ov at N o E M An ar o W in t h e er ! In n Le nc High Performance Electric Trim Tabs Building Electric Trim Tabs Since 1986 14" x 12" The flat, angle-cut blades help reduce drag and spray while the welded brackets and back-plate create one complete, extreme-duty unit. 18" x 12" 25" x 14" 21" x 14" We make the best boats better! ™

Open the catalog to page 1

Electric Trim Tabs Electric Trim Tabs ■ 7 gauge flat-304 electro-polished stainless steel blades with ■ Ultimate corrosion resistance with a sleek stylish look ■ Full transom back plate with adjustable C-channel and 3/8" stainless steel bolts ■ Extreme duty actuators with 316 stainless steel billet actuator and 3/8" stainless steel bolts 3/8" stainless steel hinge pins Single and dual actuator applications Dual Actuator System stainless steel After market Kits Single Actuator System H 12-volt actuators (2) with 6 foot leads and Deutsch connectors H Customer supplied mounting hardware SWITCH SOLD...

Open the catalog to page 2

HIGH-PERFORMANCE TRIM TAB SYSTEM

HIGH-PERFORMANCE TRIM TAB SYSTEM
