K-MASTER WORKSTATION
12Pages

{{requestButtons}}

Catalog excerpts

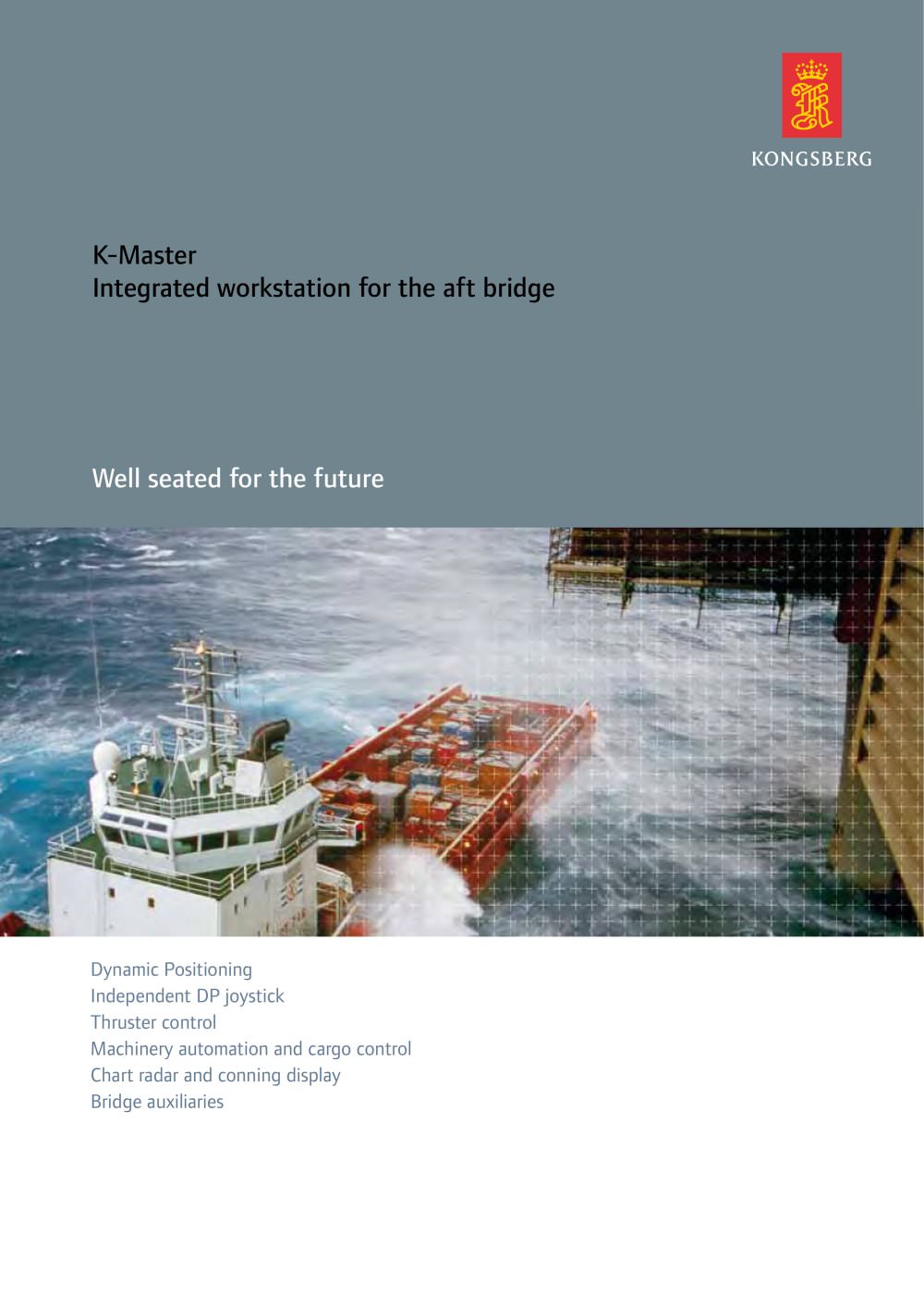

K-MASTER WORKSTATION - 1

Integrated workstation for the aft bridge Well seated for the future Dynamic Positioning Thruster control Machinery automation and cargo control Chart radar and conning display Bridge auxiliaries

Open the catalog to page 1
K-MASTER WORKSTATION - 2

We shall earn the respect and recognition for our dedication to provide innovative and reliable marine and offshore electronics that ensures optimal operation. By utilizing and integration our technology, experience and competencies in positioning, hydroacoustics, communication, control, navigation, simula- tion, and automation, we aim to give our customers The Full Picture. The Full Picture yields professional solutions and glo- bal services that make a difference enabling you to stay ahead Our success depends on the success of our customers. Actively listening to our customers and truly...

Open the catalog to page 2
K-MASTER WORKSTATION - 3

KoNCSBERC System Philosophy Designed for efficiency and safety KONCSBERC'S K-Master workstation for offshore service vessels (OSV) sets a new standard in the integration of navigation, control and manoeuvring functions for the aft bridge. It provides unique access to all major control systems within easy reach of the seated operator and ensures complete situational awareness. The K-Master workstation enhances operational efficiency and reliability in the de- manding OSV environment and is considered to be the most advanced aft bridge system solution commercially available. Robust and...

Open the catalog to page 3
K-MASTER WORKSTATION - 4

A complete and independent workstation KONCSBERC'S new K-Master workstation is a complete and independent operating station designed to meet strict aft bridge ergonomie considerations regarding the arrangement of working places, the instrumentation and the operability of the equip- ment itself. Within easy reach of the operator, the K-Master workstation includes inter active interfaces for: DP, independent DP joystick, manual thrust control, monitoring and control system, central bridge alarm system, chart radar, conning display and com- munication devices. The true integration between the...

Open the catalog to page 4
K-MASTER WORKSTATION - 5

▶ Touch control panels ▶ ▶ ▶ Joystick Thruster levers Seat adjustments ▶ Independent DPjoystick touch panel 3

Open the catalog to page 5
K-MASTER WORKSTATION - 6

Operation Simplicity is the art of technology In lieu of mechanical knobs and switches, while enhancing appearance and cleaning, K-Master features touch control panels and multi-functional split screens displaying chosen pop-up menus from a multitude of stored menus. K-Master represents a generation of automation equipment that combines simple and easy touch control use with high-end features and vast amounts of fast and accessible critical ship data. The use of mechanical switches in bridge applications is in decline as touch control technology becomes the replacement, except for critical...

Open the catalog to page 6
K-MASTER WORKSTATION - 7

The display and control panel for the independent DP joystick. Includes necessary status indication and operator selections for compliance with regulations. ■ Needs no separate joystick device ■ Easily accessible but outside hand grasp area Thruster levers Thruster command levers and thruster control system status indi- cation. Combined with buttons for emergency stop and manual command override capabilities. ■ Ergonomie shape for tactile orientation ■ Command indication displays ■ Immediate access to safety and override functions Touch control panels Touch sensitive displays for user...

Open the catalog to page 7
K-MASTER WORKSTATION - 8

Operation Joystick The control device for manual and mixed automatic/manual control of thrusters. The same unit is used whether manoeuvring by the DP system or by the independent DP joystick system. 6

Open the catalog to page 8
K-MASTER WORKSTATION - 9

Multifunctionality that provides for ease of operation The true integration of subsystems provides for functionalities tailored to the ves- sel's different types of operation. For instance, context dependent mode control sets up the subsystems across system boundaries and ensures that the workstation presents the information and the control panels adapted for that operation. The information can be displayed both on the touch screen panels and on the larger dis- plays installed adjacent to the chair, allowing for maximum operational awareness. With K-Master the operators have the means to...

Open the catalog to page 9
K-MASTER WORKSTATION - 10

Life cycle support Designed to purpose - maintained to last Our life cycle management service will assist our customers throughout all the phases, from design to commissioning and during the operational life time. Solid in-house competence, both in system design and user competence enables us to provide solutions that are fit to purpose and thus yields efficiency in operation. Our common base technology provides robust designs, with few and reliable parts, an execellent foundation to maximize the output at competitive costs. The distributed and open system design employs an industry...

Open the catalog to page 10
K-MASTER WORKSTATION - 11

Kongsberg Support 24 We are always there, wherever you need us Kongsberg customer services organisation is designed to provide high-quality, global support, whenever and wherever it is needed. We are committed to providing easy access to support and service, and to responding promptly to your needs. Support and service activities are supervised from our headquarters in Norway, with service and support centres at strategic locations around the globe – where you are and the action is. As part of our commitment to total customer satisfaction, we offer a wide variety of services to meet...

Open the catalog to page 11
K-MASTER WORKSTATION - 12

www.kongsberg.com Design: Moving Minds. Forsidefoto: Fotoarkivet/Jon Fjeldstad. Printing: RK Grafisk AS. © Kongsberg Maritime AS – June 2009. E-mail: km.sales@kongsberg.com Telephone: +47 32 28 50 00

Open the catalog to page 12
