STP 2010

Product catalog summary

Introduction
The JOWA STP 2010 series Sewage Treatment Plants are designed for use on ships and comply with IMO MEPC.159(55) and MARPOL 73/78 Annex IV regulations. These plants are recognized for their reliability and efficiency in environmental protection within the shipping industry.

System Description
The JOWA STP 2010 is a submerged fixed-film unit featuring a dedicated aeration system. It utilizes a bioreactor with a cross-flow structured matrix that supports stable biomass growth. The system operates automatically, requiring no operator attendance, and can be fed by gravity or an optional vacuum unit. The biological treatment process is efficient and odor-free, with chlorine used for disinfection and a non-toxic de-chlorination chemical ensuring high-quality discharge.

Specifications
The JOWA STP 2010 is available in various sizes to accommodate 15 to 60 persons, with custom sizes available upon request. Key specifications include:

Capacity: 15 to 60 P.E (Person Equivalent)
Hydraulic Load: 1.05 to 4.20 m³/day
Organic Load (BOD5/day): 0.62 to 2.46 kg
Dimensions (LWH in meters): Ranges from 1.5 x 0.9 x 1.6 to 2.4 x 1.8 x 1.8
Weight (empty/full in kg): Ranges from 871/2391 to 1579/7589

Advantages
The JOWA STP 2010 offers several advantages, including compact design, tolerance to hydraulic and organic shock loadings, and low operational costs. It is reliable, easy to maintain, and environmentally friendly, ensuring compliance with strict discharge limits without the need for filters.

Contact Information
JOWA has a global presence with offices in Sweden, Norway, Germany, Netherlands, USA, Singapore, China, and South Korea. Contact details for each location are provided for customer support and service inquiries.

Catalog excerpts

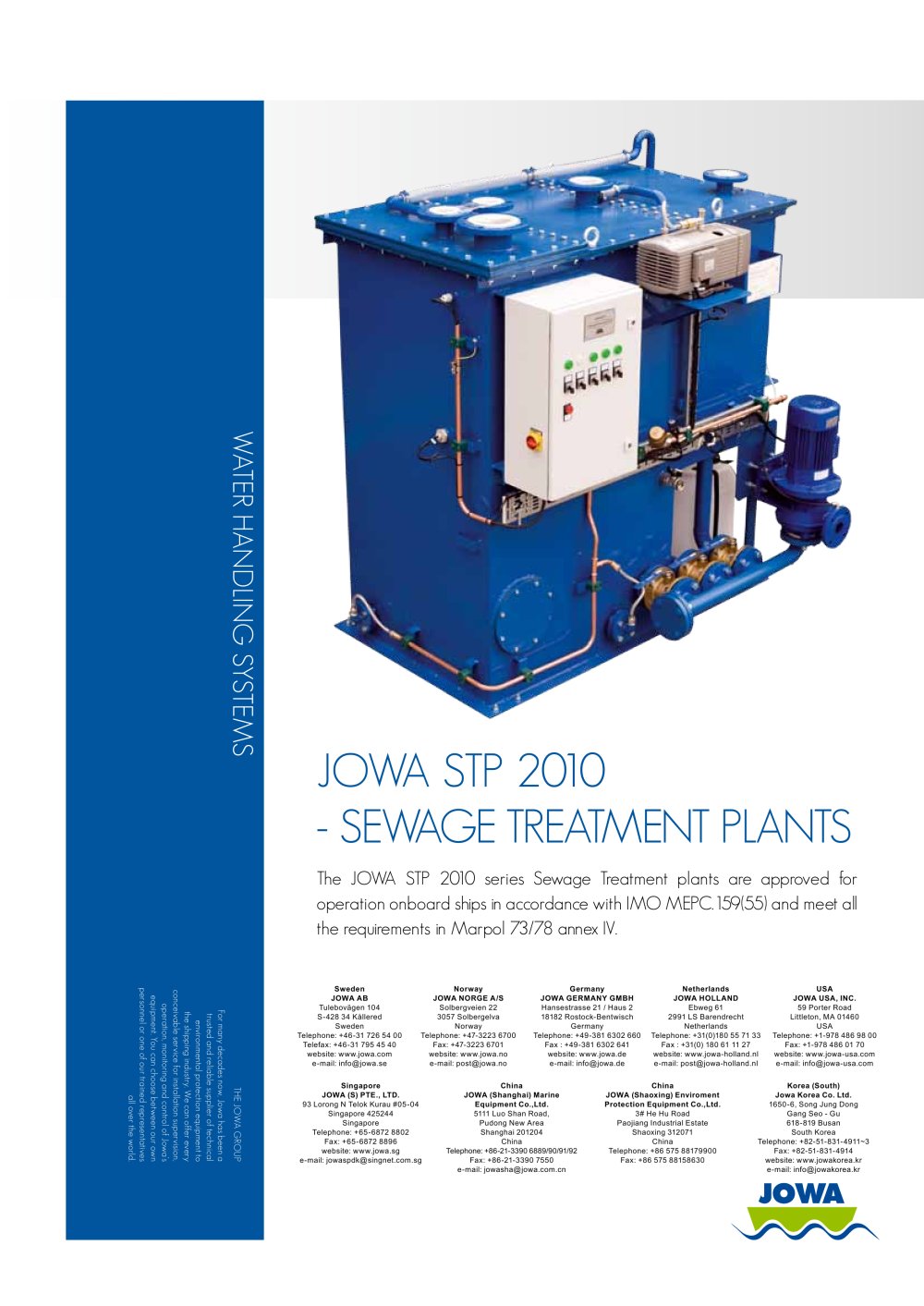

- SEWAGE TREATMENT PLANTS The JOWA STP 2010 series Sewage Treatment plants are approved for operation onboard ships in accordance with IMO MEPO 159(55) and meet all the requirements in Marpol 73/78 annex IV. website: www.jowa.com e-mail: [email protected] website: www.jowa.no e-mail: [email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: [email protected] website: www.jowa-holland.nl e-mail: [email protected] website: www.jowa-usa.com e-mail: [email protected] 93 Lorong N Telok Kurau #05-04 website: www.jowa.sg e-mail: [email protected] JOWA (Shanghai) Marine e-mail: [email protected] JOWA (Shaoxing) Enviroment Paojiang Industrial Estate Korea (South) 1650-6, Song Jung Dong South Korea website: www.jowakorea.kr e-mail: [email protected]

Open the catalog to page 1

The unit runs automatically with no operator attendance. It can be fed by gravity or a fully integrated vacuum unit can be fitted as an option. The unit's bioreactor ensures optimum biological treatment with no offensive odours SYSTEM DESCRIPTION The JOWA STP 2010 is a submerged fixed-film unit with a dedicated aeration system that provides major advantages for the operator. The bioreactor contains a highly efficient, cross-flow structured matrix on which a stable biomass adheres and rapidly grows. The JOWA STP 2010 utilises natural biological processes and intelligent design to ensure the strict...

Open the catalog to page 2

STP 2010

STP 2010
