Seaguard bilge alarm

Product catalog summary

Overview: The JOWA SEAGUARD 15ppm Bilge Alarm is designed to monitor the effluent from a bilge water separator, ensuring compliance with environmental standards. It is approved by IMO MEPC 107(49) and features two alarm signals triggered by the oil content in the effluent.

Key Features:

Cleaning Function: Includes an automatic flush to maintain sensor cleanliness.
Data Logging: Controlled by a signal from the separator and saved on a removable SD card.

Specifications:

Range: 0-30ppm, with trends up to 40ppm.
Display: 20 x 4 character LCD with backlight.
Power Supply: 115-230 VAC 50/60Hz with automatic voltage selection.
Power Consumption: Less than 15 VA.
Alarm Points: Two alarms with factory settings at 15ppm, adjustable between 0-15ppm.
Alarm Delays: Alarm 1 (control) adjustable 0-10 seconds; Alarm 2 (annunciation) adjustable 0-540 seconds.
System Fault Alarm: Indicated by a flashing red LED light.
Output Signal: 0 – 20mA or 4 – 20mA for 0 – 40ppm, with external load max 150 Ω.
Sample Water Pressure: Nominal 2 bar.
Sample Flow: Nominal 2l/min depending on pressure.
Temperature Range: Ambient and sample water temperature from +1 to +60 degrees Celsius.
Roll: Up to 45 degrees.
Size and Weight: 360 x 240 x 150 mm, 7.5 kg.
Protection Degree: IP 65.
Pipe Connections: R ¼” Female.
Type Approvals: DNV, USCG, RMRS, and CCS.

Contact Information: JOWA has offices in Sweden, Norway, Germany, Netherlands, USA, Singapore, and China, providing comprehensive services for installation, operation, and monitoring of their equipment.

Catalog excerpts

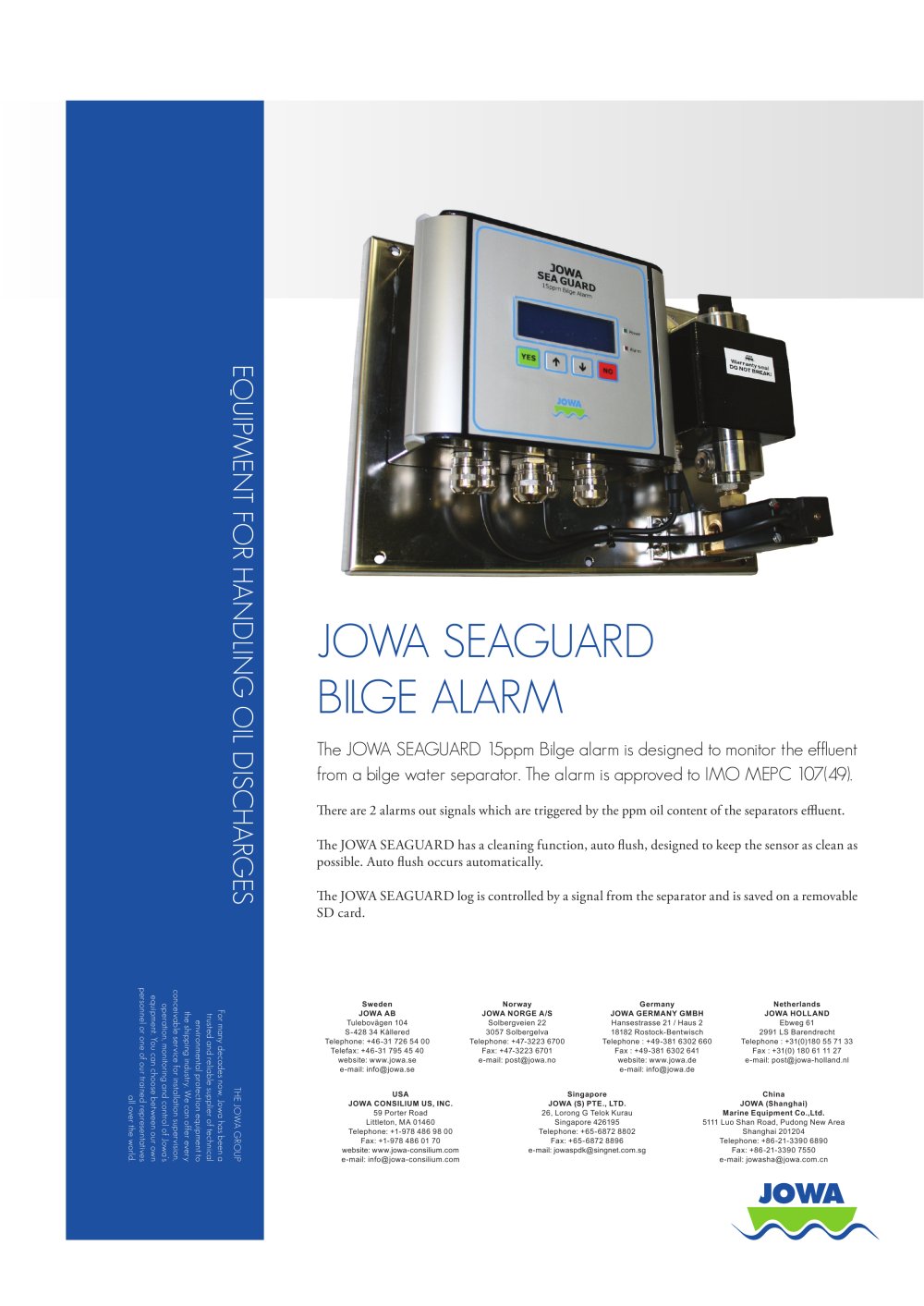

JOWA SEAGUARD BILGE ALARM The JOWA SEAGUARD 15ppm Bilge alarm is designed to monitor the effluent from a bilge water separator. The alarm is approved to IMO MEPC 107(49). There are 2 alarms out signals which are triggered by the ppm oil content of the separators effluent. The JOWA SEAGUARD has a cleaning function, auto flush, designed to keep the sensor as clean as possible. Auto flush occurs automatically. The JOWA SEAGUARD log is controlled by a signal from the separator and is saved on a removable website: www.jowa.se e-mail: ¡[email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: ¡[email protected] JOWA HOLLAND e-mail: [email protected] website: www.jowa-consilium.com e-mail: [email protected] 26, Lorong G Telok Kurau e-mail: [email protected] JOWA (Shanghai] Marine Equipment Co.,Ltd. 5111 Luo Shan Road, Pudong New Area e-mail: [email protected]

Open the catalog to page 1

Type approved by: DNV, USCG, RMRS and CCS

Open the catalog to page 2
