ODME 2005 Oil Discharge Monitor

Product catalog summary

Overview: The JOWA ODME 2005 Oil Discharge Monitor is a third-generation oil discharge monitoring system approved according to IMO resolution MEPC 108(49). It is designed for oil tankers with a gross tonnage of 150 GRT and above, complying with MARPOL convention requirements.

Main Features:

Certified oil content meter with a measuring range of 0-1000 ppm.
User-friendly interface with minimal buttons and self-explanatory menus.
Robust, easy to install and maintain, with a unique self-cleaning feature.
High-quality components designed for long-term use in harsh environments.
Approved by GL, USCG, RMRS, and CCS.

System Components:

Computer Unit: Installed in a non-hazardous area, it controls and receives data from other ODME components, storing information in flash memory for display or printing.
Zener Barrier Unit: Installed in the engine room, it converts electrical control signals to pneumatic or electrical supply signals for ODME components.
Analysing Unit: Installed in hazardous areas, it includes the oil content measuring unit, sample feed pump, fresh water valve, and pressure transmitter, designed for proximity to the sampling point.

Contact Information: JOWA has offices in Sweden, Norway, Germany, Netherlands, USA, Singapore, and China, providing comprehensive services for installation, operation, monitoring, and control of their equipment.

Catalog excerpts

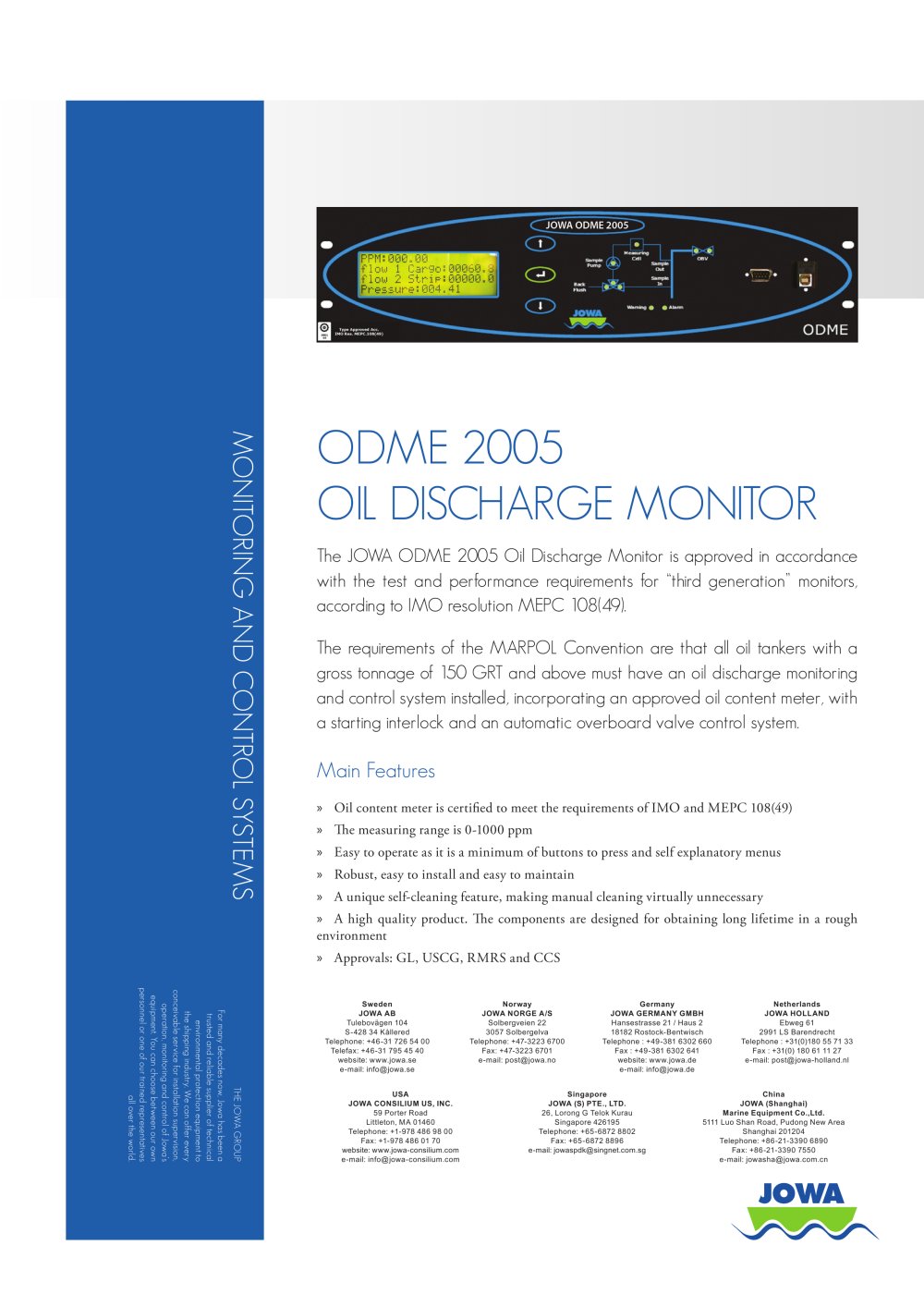

The JOWA ODME 2005 Oil Discharge Monitor is approved in accordance with the test and performance requirements for "third generation" monitors, according to IMO resolution MEPC 108(49). The requirements of the MARPOL Convention are that all oil tankers with a gross tonnage of 150 GRT and above must have an oil discharge monitoring and control system installed, incorporating an approved oil content meter, with a starting interlock and an automatic overboard valve control system. Main Features » Oil content meter is certified to meet the requirements of IMO and MEPC 108(49) » Easy to operate as it is a minimum of buttons to press and self explanatory menus » Robust, easy to install and easy to maintain » A unique self-cleaning feature, making manual cleaning virtually unnecessary » A high quality product. The components are designed for obtaining long lifetime in a rough » Approvals: GL, USCG, RMRS and CCS website: www.jowa.se e-mail: [email protected] e-mail: [email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: [email protected] JOWA HOLLAND e-mail: [email protected] website: www.jowa-consilium.com e-mail: [email protected] 26, Lorong G Telok Kurau JOWA (Shanghai) Marine Equipment Co.,Ltd. 5111 Luo Shan Road, Pudong New Area e-mail: [email protected]

Open the catalog to page 1

A Zener barrier unit An Analysing unit of the fo ll owing main parts: A computer unit Oil Discharge Monitor consists Intended to be installed in the cargo control room or in an equivalent non-hazardous area. The computer unit controls and receives data from the other ODME components. This information is treated for computing and control purposes and is stored into a flash memory, which could be displayed or printed out an external computer or printer, according to the requirements of the IMO resolutions. of syst em Intended to be installed in the hazardous area. The analysing cabinet contains...
