JOWA DPS - Discharge Protection System

Product catalog summary

Overview
The JOWA Discharge Protection System (DPS) is designed to monitor and control the discharge of bilge water, preventing accidental oil discharge. It logs and stores data for later retrieval, providing operators with comprehensive control over discharge processes.

Log Functions and IMO Regulations
The system logs critical data including the time and date of discharge, parts per million (ppm) value, alarm status, GPS position, and the volume of water discharged overboard. This ensures compliance with International Maritime Organization (IMO) regulations.

Monitoring and Control System
JOWA has been a reliable supplier of environmental protection equipment for the shipping industry for decades. They offer services for installation supervision, operation, monitoring, and control of their equipment, with support available globally through trained representatives.

Technical Specifications

Capacity: 0.5-10 m³/h
Voltage: 230 VAC 50/60 Hz (other options available upon request)
Power Consumption: <500W
Operating Temperature: 1-60°C
Weight: Approx. 5 kg
IP Class: 54
Color: RAL 7032 (Control cabinet)
Flow Transmitter: Pulse type
Flow Switch: DN10
Alarm Output: Potential free contact no/nc
GPS Input: NMEA 183
Log Data Capacity: > 18 months
Log Data Download: RS232 PC connection
Printout: RS232 (printer optional)

Global Presence
JOWA has a global presence with offices in Sweden, Norway, Germany, Netherlands, USA, Singapore, China, and South Korea, providing comprehensive support and services worldwide.

Catalog excerpts

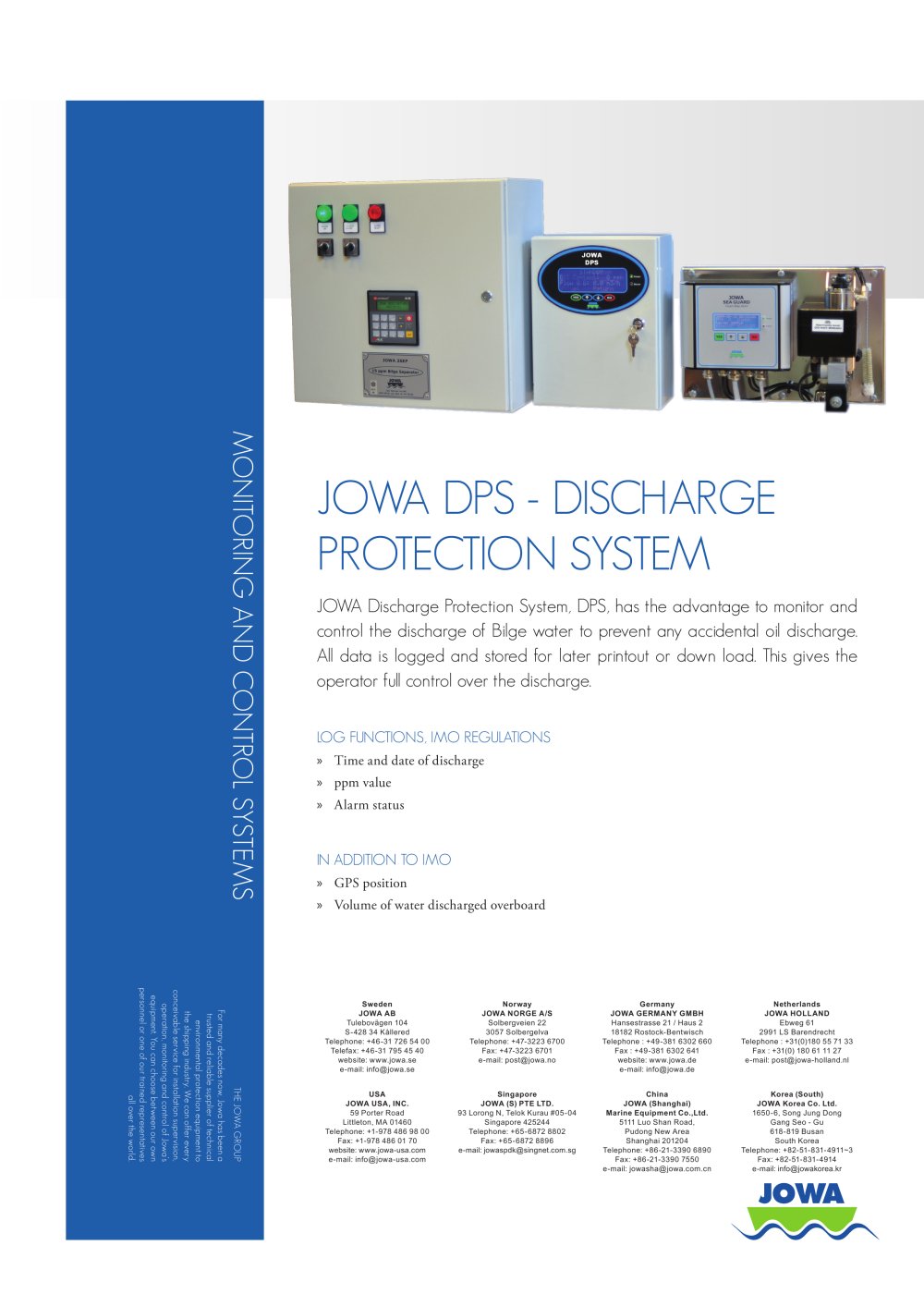

JOWA DPS - Discharge Protection System-1

PROTECTION SYSTEM JOWA Discharge Protection System, DPS, has the advantage to monitor and control the discharge of Bilge water to prevent any accidental oil discharge. All data is logged and stored for later printout or down load. This gives the operator full control over the discharge. » Time and date of discharge » Alarm status » Volume of water discharged overboard website: www.jowa.se e-mail: [email protected] e-mail: [email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: [email protected] JOWA HOLLAND e-mail: [email protected] website: www.jowa-usa.com e-mail: [email protected] 93 Lorong N, Telok Kurau #05-04 e-mail: [email protected] JOWA (Shanghai) Marine Equipment Co.,Ltd. e-mail: [email protected] Korea (South) 1650-6, Song Jung Dong South Korea e-mail: [email protected]

Open the catalog to page 1

JOWA DPS - Discharge Protection System-2

The DPS is available as a add on option to the JOWA 3SEP 15ppm bilge water separator. The unit functions together with the 3SEP's control system and alarm. The entire DPS unit comes ready installed and pre-wired on the 3SEP's control panel. Technical Specification Powef consumption: Operating temperature: Empty weight: Pulse type Flow switch: Alarm output: Potential free contact no/nc
