Product catalog summary

Overview
The Jowa Emulsion Breaking Unit (EBU) is designed for the treatment of oily water by separating up to 80% of the water from the emulsion. The treated water is then processed through an MEPC 107(49) approved filter type/bilge water separator, while the residue is directed to a concentrated sludge tank.

Functionality
The system operates automatically via a PLC-controlled step-by-step program, utilizing flocculation as its working principle. The process involves:

Initial oil release in the gravity tank, followed by filling the settling tank with emulsified water.
Addition and mixing of emulsion breaking chemicals, with simultaneous pH adjustment.
Discharge of oil from the previous batch to the sludge tank.
Creation of three layers during the adjustable settling time, with the bottom layer discharged to the sludge tank and treated water to the oily water separator.
Manual operation is also possible, with all alarms displayed on an LCD screen.

Parameters

Capacity: 6 ~32 m³/24h
Manual or automatic operation
Skid mounted in two sections
Includes dosage pumps, discharge pump, valves, and PLC control system

Main Features

Compact design
Easy installation
PLC-based control system
Vibration protection system
Unaffected by rough sea conditions
Low chemical consumption
Ease of operation

Contact Information
Jowa has a global presence with offices in Sweden, Norway, Germany, Netherlands, USA, Singapore, China, and South Korea. Each location provides contact details including telephone, fax, website, and email for customer support and service inquiries.

Catalog excerpts

- EMULSION BREAKING UNIT website: www.jowa.com e-mail: [email protected] JOWA NORGEA/S website: www.jowa.no e-mail: [email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: [email protected] website: www.jowa-holland.nl e-mail: [email protected] website: www.jowa-usa.com e-mail: [email protected] 93 Lorong N Telok Kurau #05-04 website: www.jowa.sg e-mail: jowaspdk@singnet .com.sg JOWA (Shanghai) Marine e-mail: [email protected] JOWA (Shaoxing) Enviroment Protection Equipment Co.,Ltd. Paojiang Industrial Estate Korea (South) 1650-6. Song Jung Dong South Korea website: www.jowakorea.kr e-mail: [email protected]

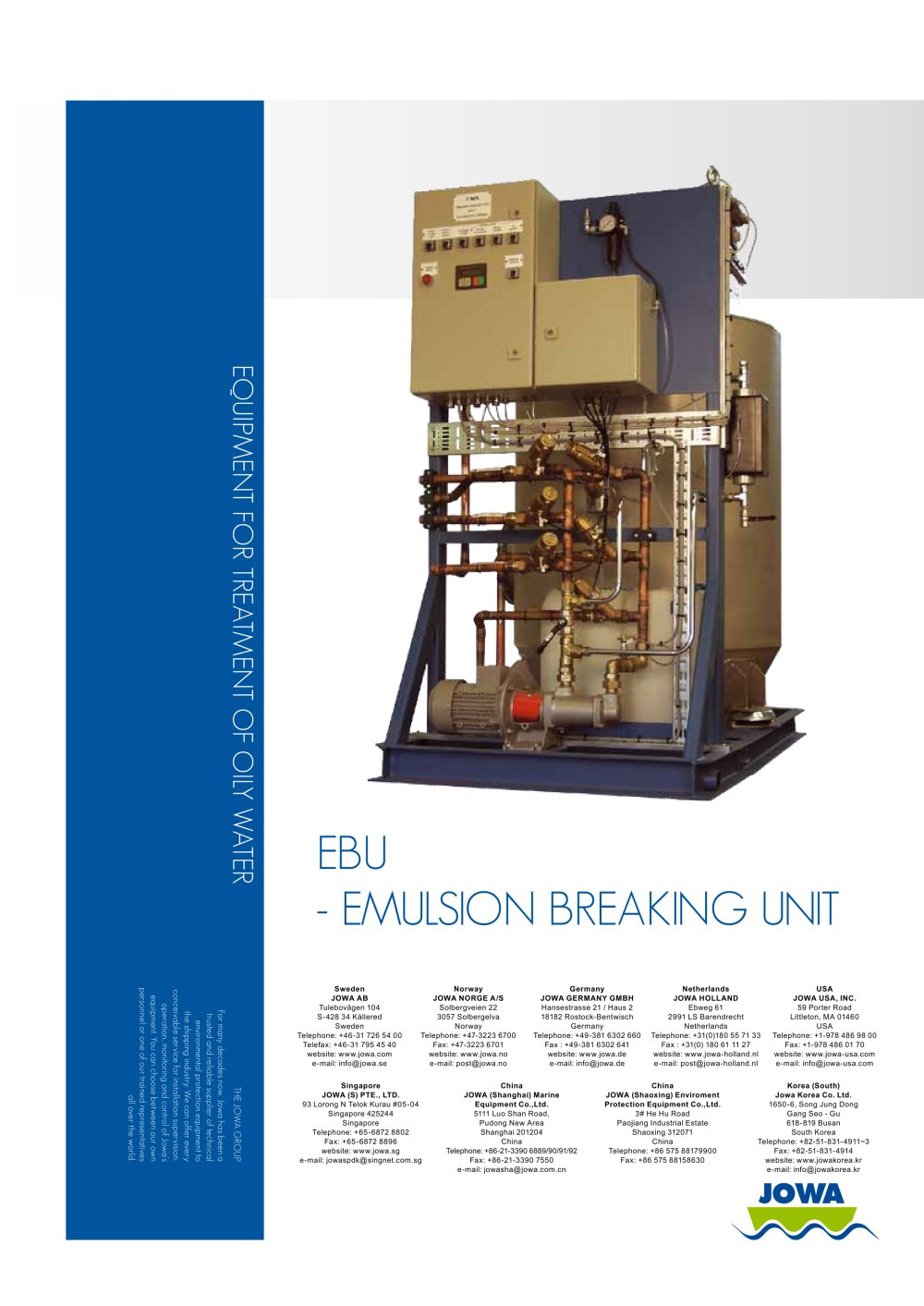

Open the catalog to page 1

SEPARATES UP TO 80% OF THE WATER IN THE EMULSION JOWA Emulsion Breaking Unit is designed to break apart water in oily water emulsions. The unit separates up to 80% of the water in the emulsion. The treated water is then fed to an MEPC 107(49) approved filter type/bilge water separator. The residue is pumped to the concentrated sludge tank. The system is operating automatically, in a step-by-step program (PLC controlled). The working principle is When the system starts it firstly makes an oil release in the gravity tank of the 3SEP, then it starts to fill up the settling tank with emulsified water,...
