Product catalog summary

Overview

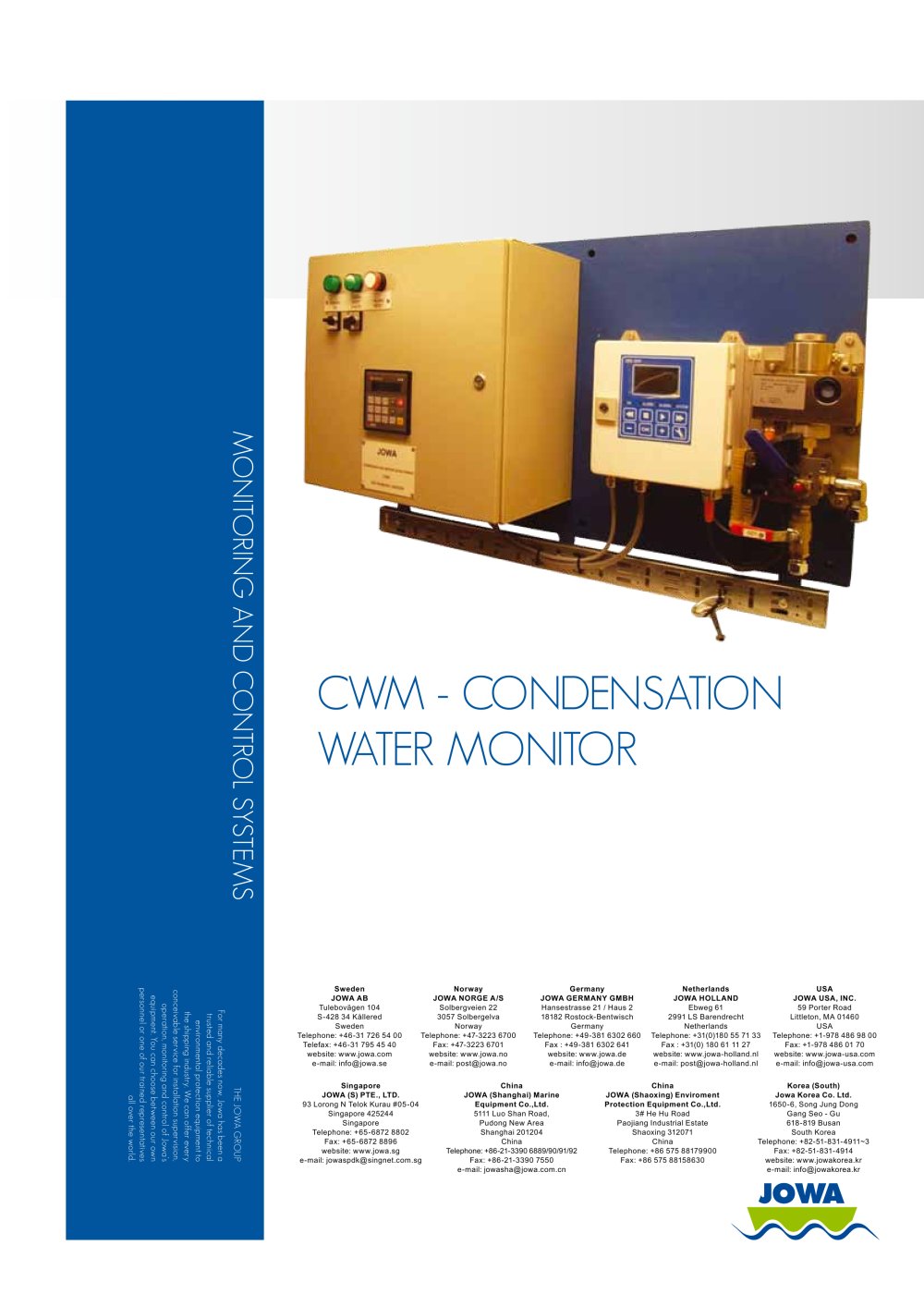

The document provides detailed information about the Condensation Water Monitor (CWM) by Jowa, a company with a long-standing reputation in supplying environmental protection equipment to the shipping industry. The CWM is designed to monitor and control the discharge of condensation water, preventing accidental oil discharge.

Contact Information
Jowa has offices in several countries including Sweden, Norway, Germany, Netherlands, USA, Singapore, China, and South Korea. Each location provides contact details including telephone, fax, website, and email.

Functionality
The CWM logs and stores data related to discharge, including time, date, ppm value, and alarm status. This data is stored for a minimum of 18 months, providing operators with comprehensive control over discharge processes.

Technical Specifications

Pump Capacity: 3m3/h
Voltage: 440 VAC 50/60Hz
Power Consumption: <650W
Operating Temperature: 1-60°C
Test Pressure: 4 bar
Working Pressure: 1-2 bar
Air Supply: 6-8 bar
Dimensions: Refer to Mechanical Drawings Chapter 7
Protection Class: IP 55
Log Data Capacity: > 18 months
PPM Range: 0-40 ppm
PPM Set Point: 1-15 ppm

Additional Features
The CWM includes a display window for easy overview and status indication, and it is equipped with a potential-free contact alarm system. The control cabinet is colored RAL 7032.

Catalog excerpts

WATER MONITOR website: www.jowa.com e-mail: [email protected] website: www.jowa.no e-mail: [email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: [email protected] JOWA HOLLAND website: www.jowa-holland.nl e-mail: [email protected] website: www.jowa-usa.com e-mail: [email protected] 93 Lorong N Telok Kurau #05-04 website: www.jowa.sg e-mail: [email protected] JOWA (Shanghai) Marine e-mail: [email protected] JOWA (Shaoxing) Enviroment Paojiang Industrial Estate Korea (South) 1650-6, Song Jung Dong South Korea website: www.jowakorea.kr e-mail: [email protected]

Open the catalog to page 1

CONTROLS YOUR DISCHARGE The Condensation Water Monitor has the advantage to monitor and control the discharge of condensation water to prevent any accidental oil discharge. All data is logged and stored in the OCM. This gives the operator full control over the discharge. » Time and date of discharge » Alarm status The log data is stored internally for a minimum of 18 months in the Oil content meter. The CWM is equipped with a display window for overview, information, status indication and adjustments. Technical Specification Flow tate: Powet consumption: Test ptessute: Working ptessute: Dimensions...
