BIO STP - SEWAGE TREATMENT PLANT

Product catalog summary

Introduction
The JOWA BIO STP is a modern sewage treatment plant designed for automatic operation on ships, complying with IMO MEPC2(VI) and Marpol 73/78 annex IV standards. It processes various types of wastewater, including black and grey water, and can be integrated with both gravity and vacuum systems.

System Description
The JOWA BIO STP is an aerated, submerged, fixed-film unit featuring a proprietary aeration system. It includes a macerating pump to prevent clogging by breaking down incoming sewage and biomass. The bioreactor contains a structured matrix that supports rapid bacterial growth, ensuring efficient biological treatment without offensive odors. Its compact design is suitable for marine use, offering a smaller footprint compared to systems using suspended growth.

Capacity and Specifications
The system is available in various capacities, accommodating from 10 to 200 persons. Dimensions and weights vary by model, with operational weights ranging from 1100 kg to 13200 kg.

Main Features

Macerating pump to prevent clogging
Type approved by IMO RES. MEPC.2 (VI)
Compact design for retrofits and new builds
Quick start process
Aerated, odorless system
Non-sensitive to long shutdown periods
Suitable for all onboard sewage
Approvals from SBG, RMRS, and CCS

Functional Description

Sewage enters the pre-treatment chamber via gravity or vacuum, where it is macerated before entering the bioreactor.
In the bioreactor, wastewater moves in a serpentine path for maximum contact time and treatment. Sludge is recirculated to the pre-treatment tank.
After biological treatment, water flows into the settling chamber where remaining solids are removed and returned to the pre-treatment chamber.
Treated water is sterilized with chlorine or UV light before being discharged overboard.

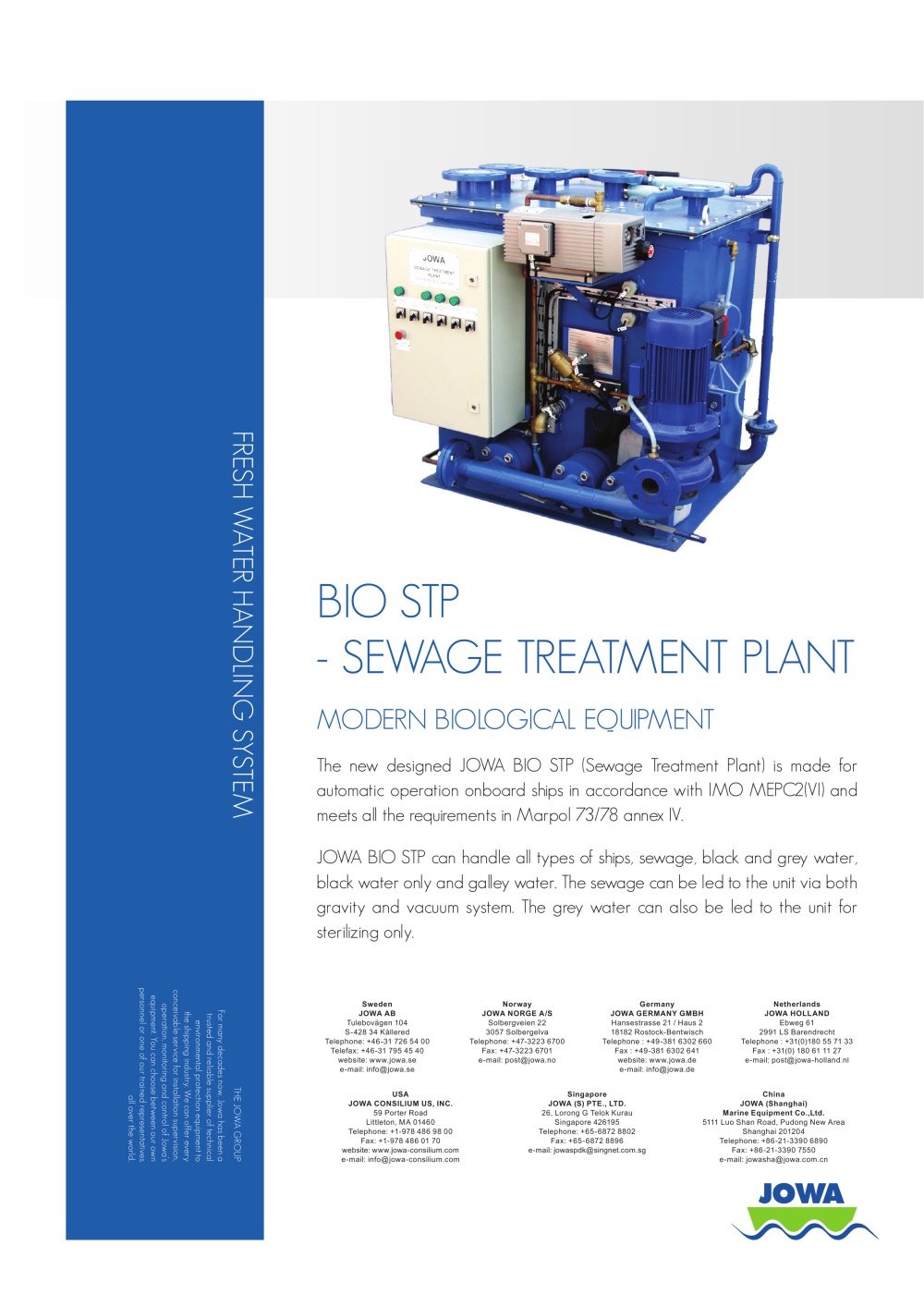

Catalog excerpts

- SEWAGE TREATMENT PLANT MODERN BIOLOGICAL EQUIPMENT The new designed JOWA BIO STP (Sewage Treatment Plant) is made for automatic operation onboard ships in accordance with IMO MEPC2(VI) and meets all the requirements in Marpol 73/78 annex IV. JOWA BIO STP can handle all types of ships, sewage, black and grey water, black water only and galley water. The sewage can be led to the unit via both gravity and vacuum system. The grey water can also be led to the unit for sterilizing only. website: www.jowa.se e-mail: ¡[email protected] e-mail: [email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: ¡[email protected] JOWA HOLLAND e-mail: [email protected] website: www.jowa-consilium.com e-mail: [email protected] 26, Lorong G Telok Kurau e-mail: [email protected] JOWA (Shanghai) Marine Equipment Co.,Ltd. 5111 Luo Shan Road, Pudong New Area e-mail: [email protected]
