3SEP oily water separator

Product catalog summary

Overview: The 3SEP Oily Water Separator (OWS) is a dual-stage system designed to separate and remove free and emulsified oil from bilge water, ensuring treated water contains no more than 15 parts per million (ppm) of oil. It operates using differential specific gravity, coalescence plates, and filtration, and is available in capacities ranging from 0.5 to 10 m3/h.

Specifications: The system is designed for continuous flow with automatic operation and does not require chemicals. It features a skid design for a small footprint, with the 1 m3/h model measuring 950 x 760 mm. The tanks are constructed from acid-proof stainless steel (AISI 316L), and the system includes high-quality pumps from recognized brands.

Functionality: The first stage uses gravity and coalescence plates to remove free oil, controlled by an adjustable oil sensor for automatic release to a sludge tank. The second stage removes emulsified oil in filter tanks, monitored by a 15-ppm bilge alarm. If contamination exceeds 15 ppm, the system automatically recirculates water until levels are safe for discharge.

Installation and Quality: The system is designed for easy installation with all connection points collected on a skid assembly. It requires only the connection of water inlets, outlets, and electrical power. Each unit undergoes a quality test before delivery.

Main Features: The 3SEP OWS offers treated water below 15 ppm, separates free and emulsified oil, operates continuously and automatically, and is easy to install ('plug n’ play'). It is made from high-quality materials and can be connected to the JOWA EBU unit for applications requiring less than 5 ppm. It is approved by DNV, CCS, USCG, and RMRS.

Contact Information: JOWA has offices in Sweden, Norway, Germany, the Netherlands, the USA, Singapore, and China, providing global support and spare parts availability.

Catalog excerpts

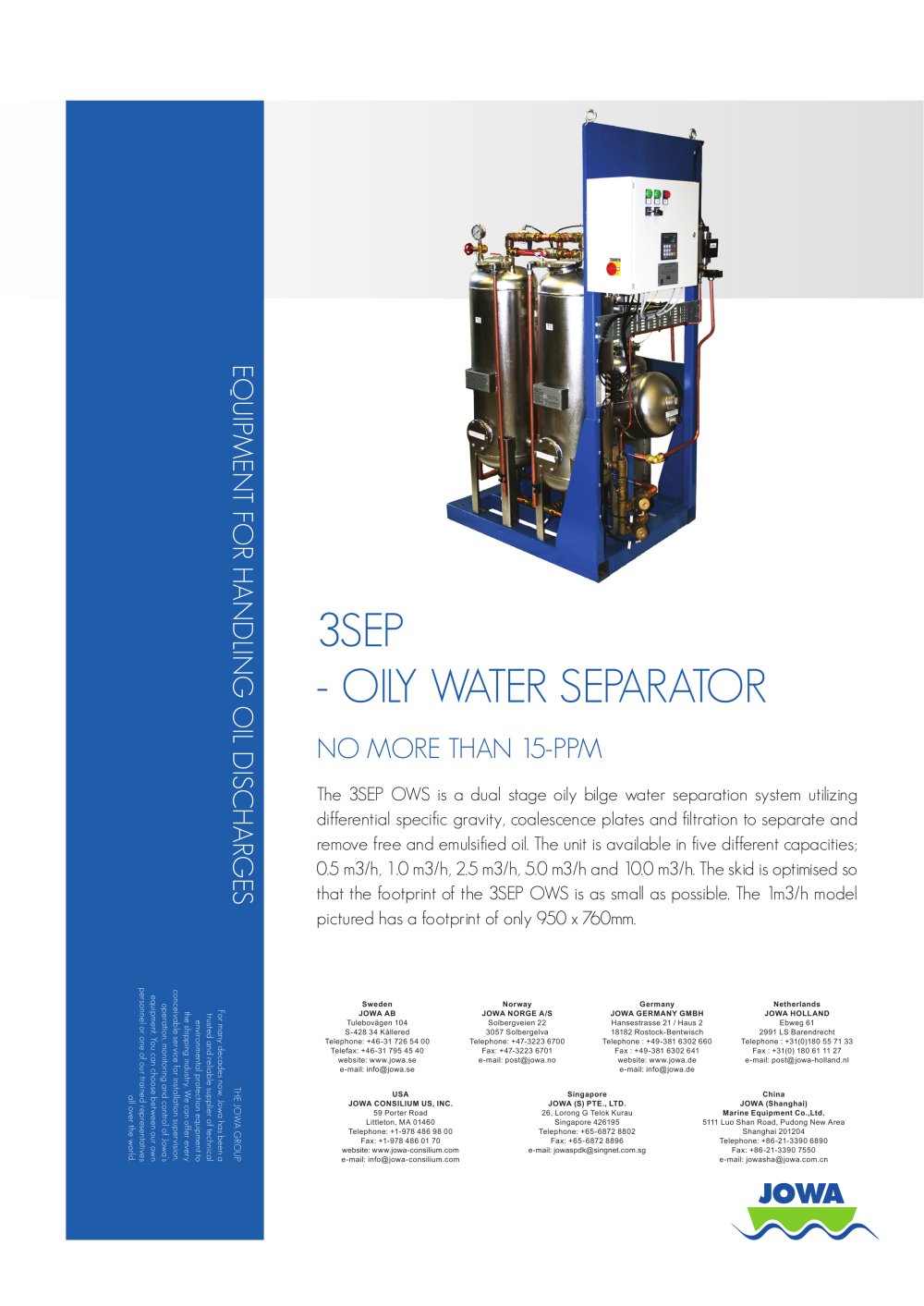

- OILY WATER SEPARATOR The 3SEP OWS is a dual stage oily bilge water separation system utilizing differential specific gravity, coalescence plates and filtration to separate and remove free and emulsified oil. The unit is available in five different capacities; that the footprint of the 3SEP OWS is as small as possible. The lm3/h model pictured has a footprint of only 950 x 760mm. website: www.jowa.se e-mail: [email protected] e-mail: [email protected] JOWA GERMANY GMBH website: www.jowa.de e-mail: [email protected] JOWA HOLLAND e-mail: [email protected] e-mail: [email protected] 26, Lorong G Telok Kurau e-mail: [email protected] JOWA (Shanghai) Marine Equipment Co.,Ltd. 5111 Luo Shan Road, Pudong New Area e-mail: [email protected]

Open the catalog to page 1

The system is designed for a continuous flow with automatic operation. The system does not require any The first stage removes the free oil by gravity with the help of coalescence plates. An adjustable oil sensor controls the valve for automatic oil release to the sludge tank or any other dedicated tank. The adjustable oil sensor makes it possible to minimise the amount of treatable water released to the sludge tank. In the second stage emulsified oil is removed in the two filter tanks and the ppm value is monitored by a 15- ppm bilge alarm, before the treated water is discharged overboard. The...

Open the catalog to page 2

3SEP oily water separator

3SEP oily water separator
