Product catalog summary
Technical Characteristics
  • Composition: The fabric is made of 1100 DTEX polyester coated with PVC, providing stability and durability under significant stress and tension.
  • Usage: Suitable for cushion underlays and window darkening.
  • Maintenance: Wash with neutral detergents and rinse with water. Ensure the fabric is dry before folding to prevent mold.
  • Coating: PVC
  • Fabric Weight: Approximately 330 g/m²
  • Dimensions: Height: 190/205/210 cm; Length: 50 meters
  • Tensile Strength (DIN 53354): Warp: approx. 200 DaN/5cm; Weft: approx. 130 DaN/5cm
  • Tear Resistance (DIN 53363): Warp: approx. 25 DaN/5cm; Weft: approx. 20 DaN/5cm
  • Temperature Resistance: Cold: -30°C; Heat: +70°C
Warranty
The fabric offers high resistance to external factors such as light, extreme temperatures, and precipitation, ensuring long-term maintenance. It is produced according to ISO 9002 quality control standards.
Cleaning Guidelines
Clean with a damp soapy cloth and rinse well with clean water. Avoid using solvents, bleaches, synthetic detergents, polishes, or aerosol sprays.
Note: The provided values are indicative and not binding. Users should verify the material's suitability for their specific application.
See more

Catalog excerpts

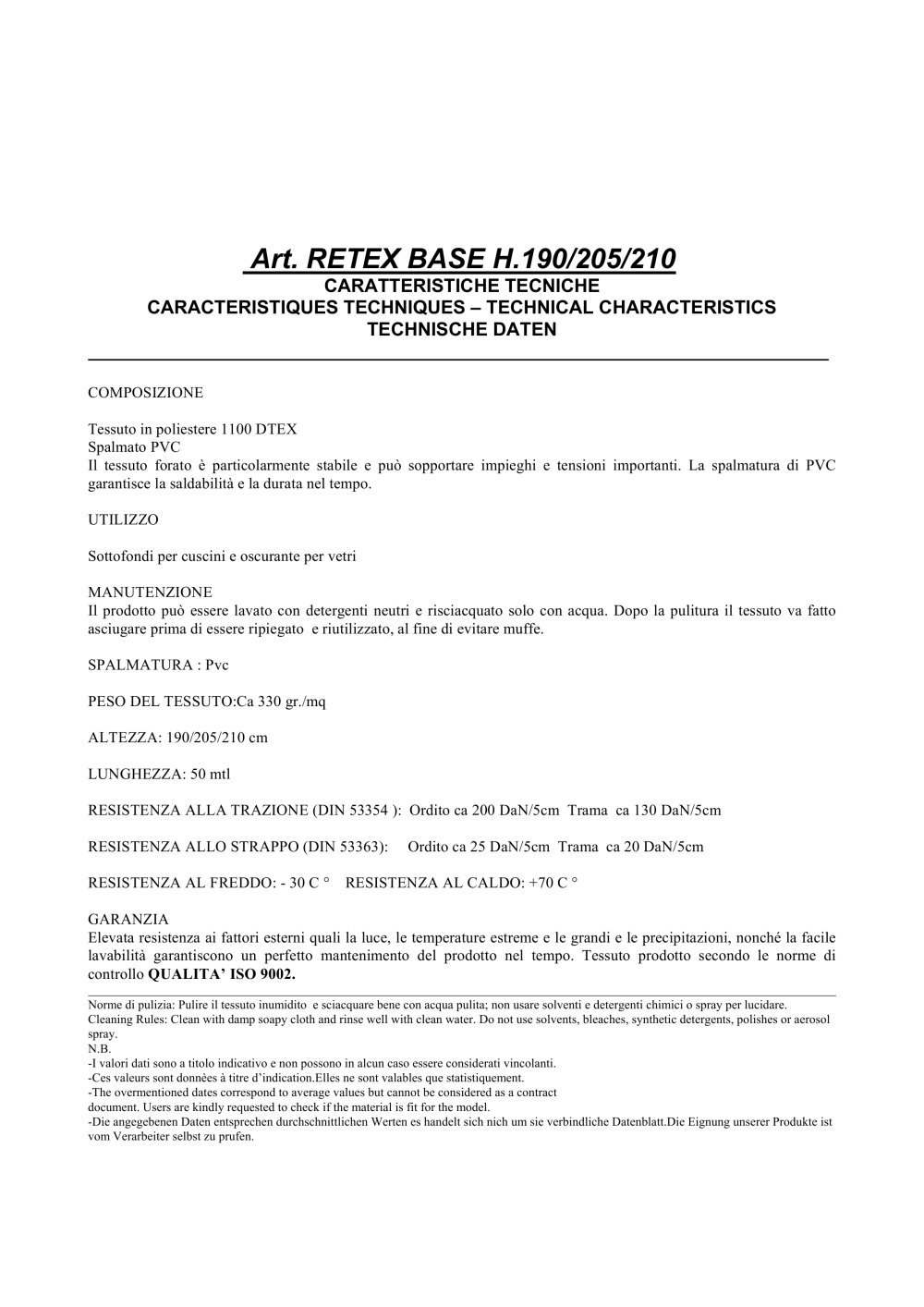

RETEX_BASE-1

Art. RETEX BASE H.190/205/210 CARATTERISTICHE TECNICHE CARACTERISTIQUES TECHNIQUES – TECHNICAL CHARACTERISTICS TECHNISCHE DATEN COMPOSIZIONE Tessuto in poliestere 1100 DTEX Spalmato PVC Il tessuto forato è particolarmente stabile e può sopportare impieghi e tensioni importanti. La spalmatura di PVC garantisce la saldabilità e la durata nel tempo. UTILIZZO Sottofondi per cuscini e oscurante per vetri MANUTENZIONE Il prodotto può essere lavato con detergenti neutri e risciacquato solo con acqua. Dopo la pulitura il tessuto va fatto asciugare prima di essere ripiegato e riutilizzato, al fine di evitare muffe. SPALMATURA : Pvc PESO DEL TESSUTO:Ca 330 gr./mq ALTEZZA: 190/205/210 cm LUNGHEZZA: 50 mtl RESISTENZA ALLA TRAZIONE (DIN 53354 ): Ordito ca 200 DaN/5cm Trama ca 130 DaN/5cm RESISTENZA ALLO STRAPPO (DIN 53363): RESISTENZA AL FREDDO: - 30 C ° Ordito ca 25 DaN/5cm Trama ca 20 DaN/5cm RESISTENZA AL CALDO: +70 C ° GARANZIA Elevata resistenza ai fattori esterni quali la luce, le temperature estreme e le grandi e le precipitazioni, nonché la facile lavabilità garantiscono un perfetto mantenimento del prodotto nel tempo. Tessuto prodotto secondo le norme di controllo QUALITA’ ISO 9002. Norme di pulizia: Pulire il tessuto inumidito e sciacquare bene con acqua pulita; non usare solventi e detergenti chimici o spray per lucidare. Cleaning Rules: Clean with damp soapy cloth and rinse well with clean water. Do not use solvents, bleaches, synthetic detergents, polishes or aerosol spray. N.B. -I valori dati sono a titolo indicativo e non possono in alcun caso essere considerati vincolanti. -Ces valeurs sont donnèes à titre d’indication.Elles ne sont valables que statistiquement. -The overmentioned dates correspond to average values but cannot be considered as a contract document. Users are kindly requested to check if the material is fit for the model. -Die angegebenen Daten entsprechen durchschnittlichen Werten es handelt sich nich um sie verbindliche Datenblatt.Die Eignung unserer Produkte ist vom Verarbeiter selbst zu prufen.

 Open the catalog to page 1
