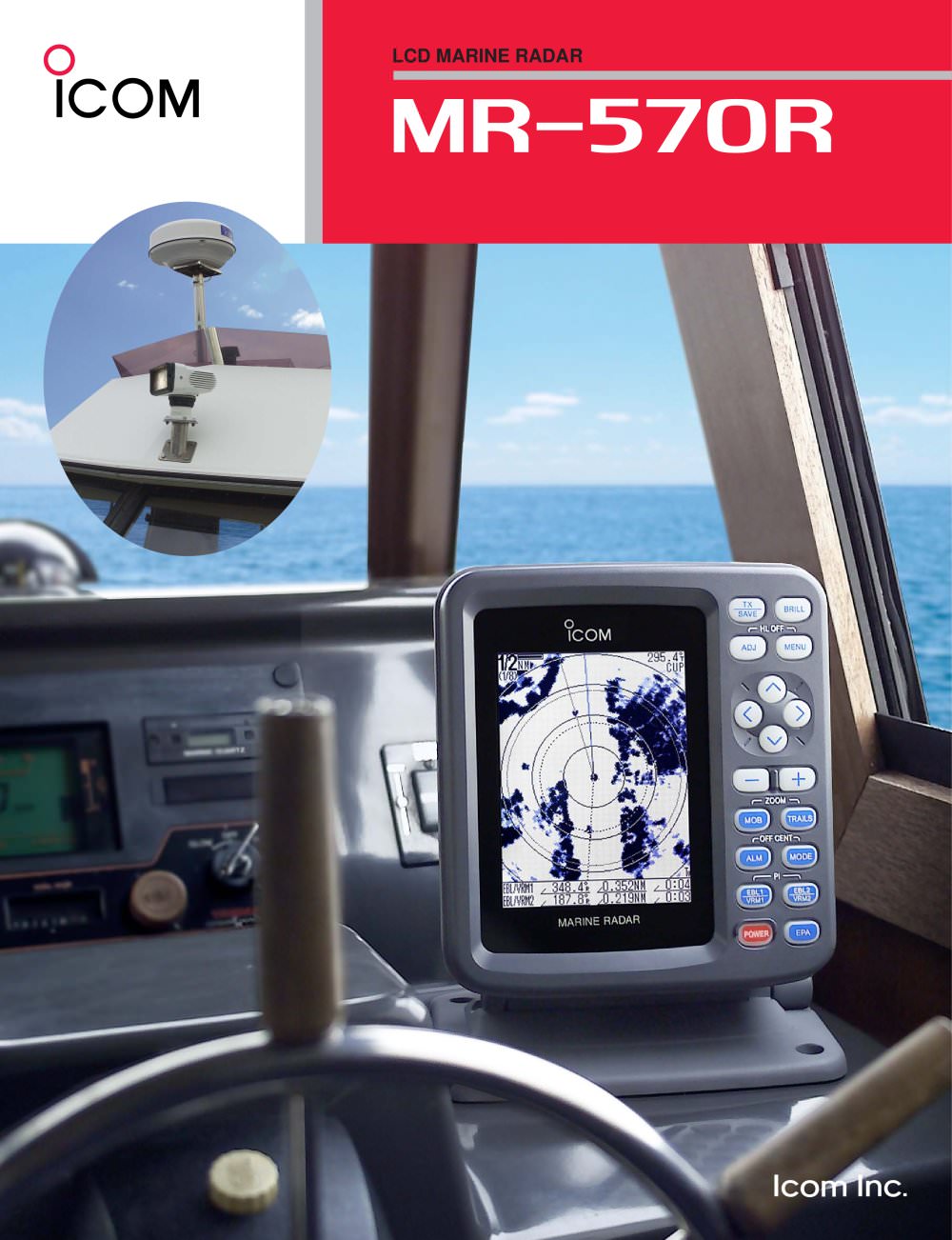

When it is dark, rainy and foggy or objects are too far away to see, the MR-570R acts like as your “third eye”. The bright and clear LCD display and easy to operate key layout, always provides reliable information, even in critical situations. In the uncertain and unpredictable ocean, one thing you can count on is the MR-570R, will always help guide you where you want to go, safely and easily with powerful 4kW output generating observations for up to 36 nautical miles. TX/SAVE switch Starts, stops and suspends the transmission BRILLIANCE switch Adjusts the screen brightness ADJUST/MENU...

Open the catalog to page 2

EPA function Navigation screen Negative display Adjusting screen 10 targets can be plotted on the screen and follows the motion of the other ships. Navigation data is indicated on the screen when the standby mode is set. During night time operation, negative display settings light up the objects in white. Changing the settings can be made quickly and easily. TUNE, GAIN and SEA are adjustable automatically or manually. Powerful 4kW output for 36 nautical miles observations The 60cm (2ft) radome scanner provides from 0.125 to 36 nautical miles of observation with the powerful 4kW of...

Open the catalog to page 3

LCD MARINE RADAR SPECIFICATIONS GENERAL • Minimum range • Maximum range • Measurement range/ xed rings Range (NM) 1⁄8 Ring (NM) 1⁄16 ⁄ 1⁄8 14 ⁄ 1⁄8 12 DIMENSIONS : 25m (when measurement range is 1⁄8 NM) : 36NM : ⁄ 1⁄4 34 1 1.5 2 ⁄ 14 ⁄ 12 ⁄ 12 3 1 4 1 6 2 8 2 *Projections not included 12 16 24 32 36 4 4 8 8 12 • Preheat time • Connection length between display and scanner : 90sec. : 10m(standard), 20m(option), 30m(option) • Display type • Pixels • Power supply requirement • Power consumption (approx.) • Operatable temp. range • Unit of distance • Dimensions : 5.7″ monochrome LCD : 240×320 :...
