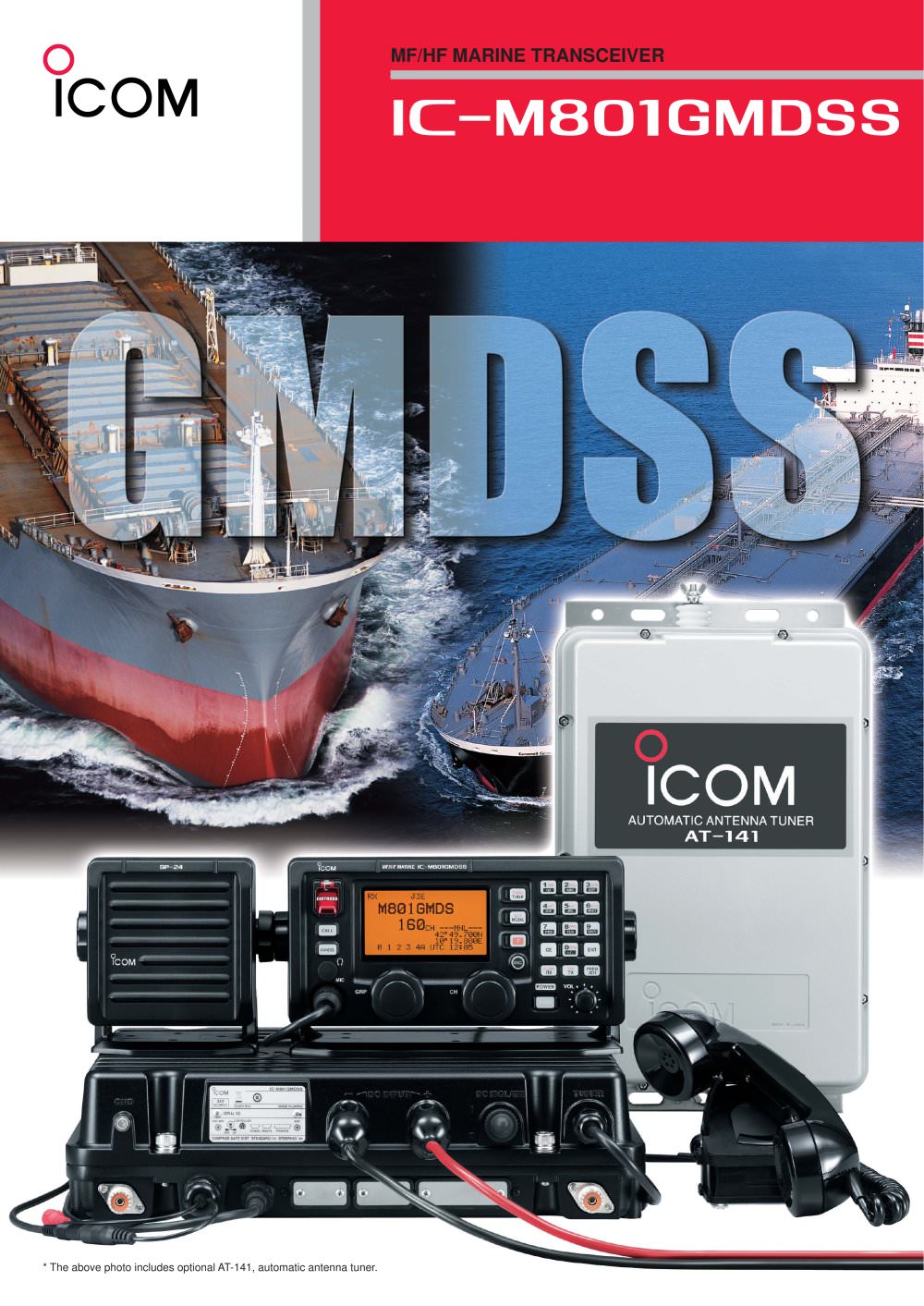

MF/HF MARINE TRANSCEIVER * The above photo includes optional AT-141, automatic antenna tuner.

Class A DSC safety func Icom’s technology and v Meets GMDSS requirements The IC-M801GMDSS is designed for Class A DSC operation. With the optional AT-141 antenna tuner, it provides a complete GMDSS MF/HF communication system as required for Commercial Solas regulated vessels voyaging in the A2 sea area. The radio also meets MED 96/98/EC, “wheel mark” requirements for European merchant MED ships. Built-in ITU Class A DSC An independent DSC receiver constantly watches MF/HF DSC channels, while using another channel. The DSC allows you to call intended ship(s) or coast station(s) directly as well...

ctionality combined with value Voice squelch control Versatile extensibility The VSC (Voice squelch control) function* only opens the squelch, when the radio detects voice componets contained in the signal, while ignoring noise or an unmodulated signal. The IC-M801GMDSS has various connectors to connect with external equipment. (See right gure) • GPS connector • D-SUB connector for NBDP/FSK • RS-232C/NMEA connector for PC remote control • Printer connector * J3E and H3E mode only. Optional hand microphone, HM-135 The optional HM-135 can be assigned a “P (programmable)” button from which one of...

MF/HF MARINE TRANSCEIVER SPECIFICATIONS GENERAL TRANSMITTER • Output power (at AT-141 output power) : 1.6–3.999MHz 85W PEP 4.0–27.500MHz 125W PEP • Spurious emissions : 43dB below peak output power • Carrier suppression : 40dB below peak output power • Unwanted sideband : 55dB below peak output power • Frequency coverage (Unit : MHz): Receive 0.5–29.9999 (continuous) Transmit 1.6–2.9999, 4.0–4.9999, 6.0–6.9999, 8.0–8.9999, 12.0–13.9999, 16.0–17.9999, 18.0–19.9999, 22.0–22.9999, 25.0–27.5000 DSC 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 • Type of emission : J3E (USB/LSB*), J2B (AFSK), F1B...
