IC-M710

Product catalog summary

Overview: The IC-M710 is a robust MF/HF marine transceiver designed for reliable long-distance communication in harsh marine environments. It offers 1136 channels, including 160 programmable, 242 ITU SSB duplex, 72 ITU SSB simplex, and 662 ITU FSK duplex channels.

Specifications: The transceiver operates within a frequency range of 1.6 to 27.5 MHz and supports modes such as SSB, RTTY, CW, and AM. It provides a full 150 W (PEP) output power, with selectable power levels for different frequency ranges. The device is constructed with a die-cast aluminum chassis and surface mount components, ensuring durability.

Features: Key features include an alphanumeric readout for easy channel identification, automatic antenna tuning with the optional AT-140 tuner, and a large cooling fan for continuous operation. The transceiver also includes RF gain control, audio-activated squelch, and direct keypad channel selection.

Usability: The IC-M710 is user-friendly, with large memory and frequency dials for quick operation. It is equipped with a large front-mounted speaker and is weather fax ready. The device supports NMEA interfacing for frequency/mode control.

Technical Specifications: The transceiver has a frequency stability of ±10Hz below 15MHz and ±20Hz above 15MHz. It operates within a temperature range of -30°C to +60°C and requires a 13.6V DC power supply. The dimensions are 291.4×116.4×315 mm, and it weighs approximately 7.8 kg.

Options and Accessories: Optional accessories include the AT-140 HF automatic antenna tuner, AH-710 folded dipole antenna, and various antenna matchers. Supplied accessories include a hand microphone, DC power cable, ACC plugs, mounting bracket kit, microphone hanger, and speaker plug.

Contact Information: The document provides contact details for Icom distributors in various countries, including Japan, USA, Australia, UK, France, Spain, Canada, Brazil, and Germany.

Catalog excerpts

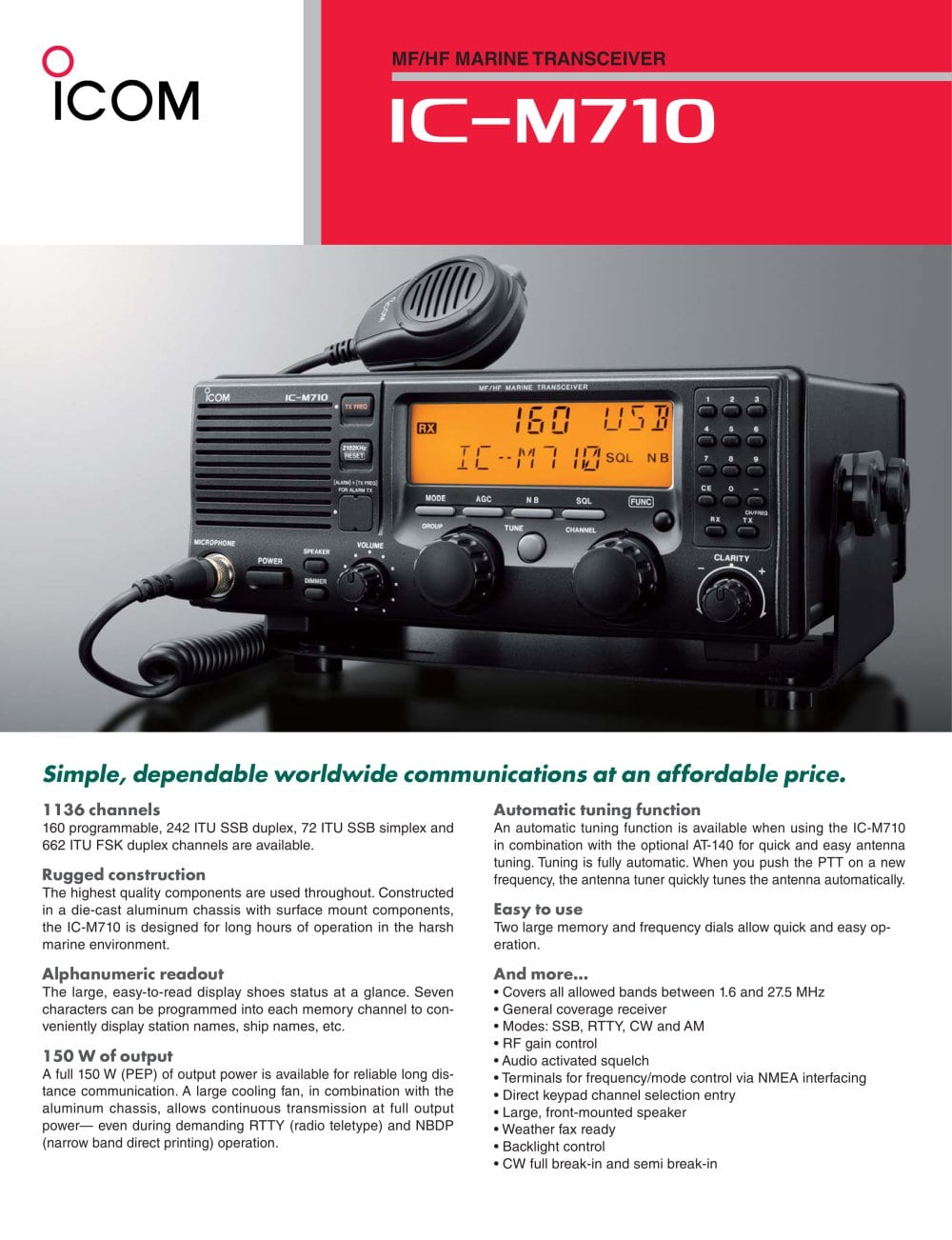

MF/HF MARINE TRANSCEIVER IC-M710 Simple, dependable worldwide communications at an affordable price. 1136 channels 160 programmable, 242 ITU SSB duplex, 72 ITU SSB simplex and 662 ITU FSK duplex channels are available. Rugged construction The highest quality components are used throughout. Constructed in a die-cast aluminum chassis with surface mount components, the IC-M710 is designed for long hours of operation in the harsh marine environment. Alphanumeric readout The large, easy-to-read display shoes status at a glance. Seven characters can be programmed into each memory channel to conveniently display station names, ship names, etc. 150 W of output A full 150 W (PEP) of output power is available for reliable long distance communication. A large cooling fan, in combination with the aluminum chassis, allows continuous transmission at full output power— even during demanding RTTY (radio teletype) and NBDP (narrow band direct printing) operation. Automatic tuning function An automatic tuning function is available when using the IC-M710 in combination with the optional AT-140 for quick and easy antenna tuning. Tuning is fully automatic. When you push the PTT on a new frequency, the antenna tuner quickly tunes the antenna automatically. Easy to use Two large memory and frequency dials allow quick and easy operation. And more... • Covers all allowed bands between 1.6 and 275 MHz • General coverage receiver • Modes: SSB, RTTY, CW and AM • RF gain control • Audio activated squelch • Terminals for frequency/mode control via NMEA interfacing • Direct keypad channel selection entry • Large, front-mounted speaker • Weather fax ready • Backlight control • CW full break-in and semi break-in

Open the catalog to page 1

MF/HF MARINE TRANSCEIVER IC-M710 GENERAL TRANSMITTER • Frequency coverage Receive Transmit • Antenna impedance • Usable temperature range Guaranteed temperature • Frequency stability • Power supply requirement • Current drain (at 13.6V DC) Receive (Max. audio output) Transmit (Max. output power) • Dimensions (WxHxD) (Projections not included) • Weight • Output power 1.6-23.999MHz 24.0-27500MHz • Spurious emissions • Carrier suppression • Unwanted sideband suppression • Microphone impedance 150, 60, 20W PEP (selectable) 60, 20W PEP (selectable) : -62dB (Below peak output power @ 150W pep) : 40dB...
