HYCON HAG09

HYCON HAG09

Product catalog summary
Product Overview: The HYCON HAG09 is a hydraulic angle grinder designed for underwater use, offering versatility in heavy-duty grinding, polishing, cleaning, and cutting tasks. It is suitable for underwater construction, ship maintenance, and salvage operations.
Specifications:
  • Weight: 3.6 kg (7.9 lbs) without hoses, disc, and guard; 4.2 kg (9.2 lbs) without hoses and disc; 6.4 kg (14.1 lbs) with hoses without disc.
  • Blade Dimensions: 230 mm (9 inches) diameter.
  • Cutting Depth: 75 mm (2.95 inches).
  • Oil Flow: 20-46 LPM (5-12 GPM).
  • Working Pressure: 120 bar (1740 psi); Max Pressure: 172 bar (2500 psi).
  • Rotation Speed: Max 4400 rpm.
  • Blade Peripheral Speed: 53 m/s (58 yards per second).
  • Max Working Depth: 50 m (164 ft).
  • Return Pressure: 40 bar (580 psi).
Product Features:
  • Low weight and compact size for ease of use.
  • Ergonomic design ensuring safety and control.
  • Suitable for both right and left-hand operation.
  • Compatible with various wheels, brushes, and attachments for diverse underwater tasks.
  • Equipped with the HYCON Power Drive motor, known for its durability and reliability in demanding conditions.
Additional Information: The HYCON product range includes angle grinders, cut-off and ring saws, core drills, pick hammers, light and heavy-duty breakers, submersible pumps, rock drills, and various power packs (gasoline, diesel, and electric).
Contact Information: HYCON A/S, Juelstrupparken 11, DK-9530 Støvring. Tel.: +45 9647 5200, Email: [email protected], Website: www.hycontools.com
See more

Catalog excerpts

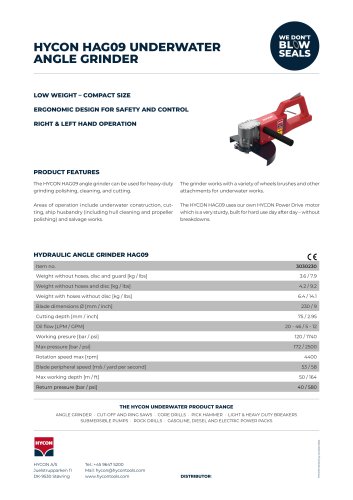

HYCON HAG09-1

HYCON HAG09 UNDERWATER ANGLE GRINDER LOW WEIGHT - COMPACT SIZE ERGONOMIC DESIGN FOR SAFETY AND CONTROL RIGHT & LEFT HAND OPERATION PRODUCT FEATURES The HYCON HAG09 angle grinder can be used for heavy-duty The grinder works with a variety of wheels brushes and other grinding polishing, cleaning, and cutting. attachments for underwater works. Areas of operation include underwater construction, cutting, ship husbandry (including hull cleaning and propeller polishing) and salvage works. The HYCON HAG09 uses our own HYCON Power Drive motor which is a very sturdy, built for hard use day after day - without breakdowns. HYDRAULIC ANGLE GRINDER HAG09 THE HYCON UNDERWATER PRODUCT RANGE ANGLE GRINDER ■ CUT-OFF AND RING SAWS ■ CORE DRILLS ■ PICK HAMMER ■ LIGHT & HEAVY DUTY BREAKERS SUBMERSIBLE PUMPS ■ ROCK DRILLS ■ GASOLINE, DIESEL AND ELECTRIC POWER PACKS Mail: [email protected]

 Open the catalog to page 1
