Product catalog summary
Overview: The Hatteras GT63 is a luxury convertible yacht known for its elegant design and excellent seakeeping abilities, capable of reaching a top speed of 41 knots. It offers spacious and sophisticated interiors with large windows for enhanced views.
Specifications: The yacht measures 63’10” in length, with a beam of 20’0” and a draft of 5’. It has a freshwater capacity of 300 gallons, a fuel capacity of 1,930 gallons, and a holding capacity of 150 gallons. The weight displacement is 101,000 pounds.
Engine Options: Available engines include Twin CAT C32 Diesel Engines with 1600, 1800, or 1900 BHP.
Exterior Finish/Construction: Features include an isophthalic gelcoat exterior, blister-resistant vinylester resin hull, and a solid fiberglass hull bottom, with anti-fouling paint and a non-skid deck surface.
Hardware & Safety: Equipped with satin nickel hardware, stainless-steel cleats, anodized aluminum rails, life jackets, fire extinguishers, and a fog bell.
Engine Compartment & Bilge: Includes twin diesel engines, a fire extinguishing system, a freshwater-cooled generator, and various pumps and filters.
Electrical Systems: Features two 24-volt battery banks, a 240-volt battery charger, automatic battery paralleling, AC and DC LED lighting, navigation lights, and air conditioning with reverse-cycle heating.
Flybridge: Includes a systems monitor, VHF radio, depth and temperature gauges, seating with storage, a control station, and a stereo system.
Cockpit: Offers 173 square feet of space, seating with cushions, a transom door, storage options, a bait and tackle center, bait freezer, and fish boxes.
Interior Wood Selections: Features mahogany or cherry cabinetry with a satin finish.
Galley/Dinette: Includes vinyl flooring, a microwave/convection oven, LED lighting, a ceramic cooktop, a dinette with storage, and solid-surface countertops.
Salon: Features carpeting, a 42” LCD TV, a Bose home theater system, an icemaker, an L-shaped lounge with storage, and air conditioning.
Staterooms: The master stateroom includes a queen-sized berth, cedar-lined lockers, a 32” LCD TV, and a Bose sound system. The bow guest stateroom offers similar amenities with private head access.
Master Stateroom Features: Includes upper and lower berths with storage, upholstered berth base, cedar-lined hanging lockers, full-length mirror, DC LED lighting, AC outlets, smoke and carbon monoxide detectors, and HVAC control.
Master Head Features: Features Amtico vinyl flooring, solid-surface countertop, stall shower, storage cabinets, Headhunter freshwater toilet, DC LED lighting, AC outlets, and air conditioning discharge.
Guest Head Features: Similar to the Master Head with Amtico vinyl flooring, solid-surface countertops, stall shower, storage cabinets, and Headhunter freshwater toilet.
Guest Stateroom (Forward) Features: Includes carpeting, upper and lower berths with storage, upholstered berth base, cedar-lined hanging locker, DC LED lighting, and AC outlets.
Footnotes: Specifications and equipment are subject to change without notice. Custom changes may incur additional charges. Specifications effective for boats sold between August 1, 2010, and July 31, 2011. Generator load must be limited to its output rating. Options must be ordered prior to production start to avoid additional charges.
Arrangements: Standard Flybridge Arrangement, Standard Four-Stateroom / Three-Head Arrangement, Optional Galley-Down with Crew Quarters Arrangement.
See more

Catalog excerpts

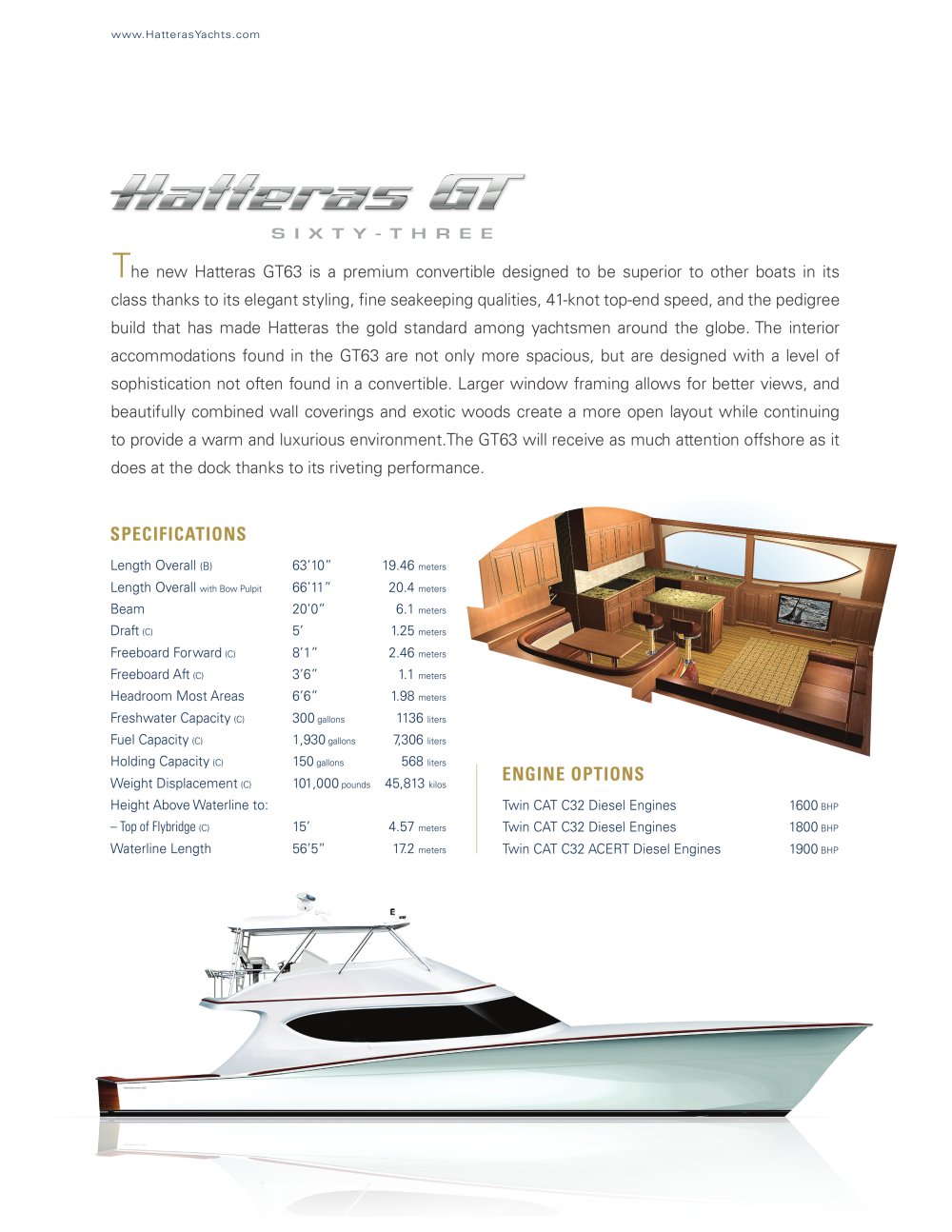

GT 63-1

"The new Hatteras GT63 is a premium convertible designed to be superior to other boats in its class thanks to its elegant styling, fine seakeeping qualities, 41-knot top-end speed, and the pedigree build that has made Hatteras the gold standard among yachtsmen around the globe. The interior accommodations found in the GT63 are not only more spacious, but are designed with a level of sophistication not often found in a convertible. Larger window framing allows for better views, and beautifully combined wall coverings and exotic woods create a more open layout while continuing to provide a warm and luxurious environment.The GT63 will receive as much attention offshore as it does at the dock thanks to its riveting performance. Length Overall with Bow Pulpit Headroom Most Areas Height Above Waterline to: Waterline Length ENGINE OPTIONS Twin CAT C32 Diesel Engines Twin CAT C32 Diesel Engines Twin CAT C32 ACERT Diesel Engines

 Open the catalog to page 1
GT 63-2

Exterior Finish/Construction • Isophthalic gelcoat, exterior layer • Blister-resistant vinylester resin in hul bottom skin coat • Hull and superstructure linear polyester/ polyurethane coating • Polymer/copper-based anti-fouling bottom paint • Boot stripe, linear polyester/polyurethane coating • Decks, non-skid surface, polyurethane paint with polymeric beads, • Solid fiberglass, resin-infused hull bottom • Hull sides and superstructure laminated with PVC foam core • Resin infused Fiberglass stringers • Steel laminated in stringers at key locations to bolt engine mounts • Engine room bulkheads...

 Open the catalog to page 2
GT 63-3

Optional Enclosed Flybridge F • Systems monitor with programmable logic contrôl- er readout, visual and audible signals for engine, alternator, high bilge water, fire warning in engine compartment, fire extinguisher discharge, AC power oss, smoke detectors, battery voltage, 3/4 full holding tank monitor, and carbon monoxide detectors • Molded Fiberglass • Icom VHF, Furuno RD30 depth and temp • Polished anodized welded aluminum ladder, cockpit to bridge deck • Elevated L-shaped lounge with rod storage • Adjustable Pompanette helmsman seat at forward station, pedestal mount • Riding seats, port...

 Open the catalog to page 3
GT 63-4

[Continued from Last Page] • AC duplex outlet(s) with ground fault protection • Private access to head • Smoke detector • Carbon monoxide detector • SMX HVAC compartment controlled • Screened overhead hatch with privacy cover Optional Bow Guest Stateroom (F) • Fabric headliner installed on track system • Fabric covered hullside(s) and bulkhead(s) nstalled on track system for service access • Double sized berth to port and single sized berth to starboard, with storage underneath • Upholstered berth base • HMC System 1 mattresses, spreads, throw pillows, pillows, pillow shams, mattress pads and...

 Open the catalog to page 4
