Specifications:

• Up to 99% reduction of diesel soot particulates using ultramodern sinter metal filter medium.
• Integrated high-speed fuel burner for on-line regeneration during engine operation.
• Constant, optimal regeneration even with low load, fully automatic operation.
• Modular design provides redundancy and protective operation with adjustable fuel burner performance (2 – 25 KW).
• Noise reduction by approximately 25 dB/A and small required space.
• Ensures trouble-free cold weather starting even at the lowest ambient temperatures.

Procedures:

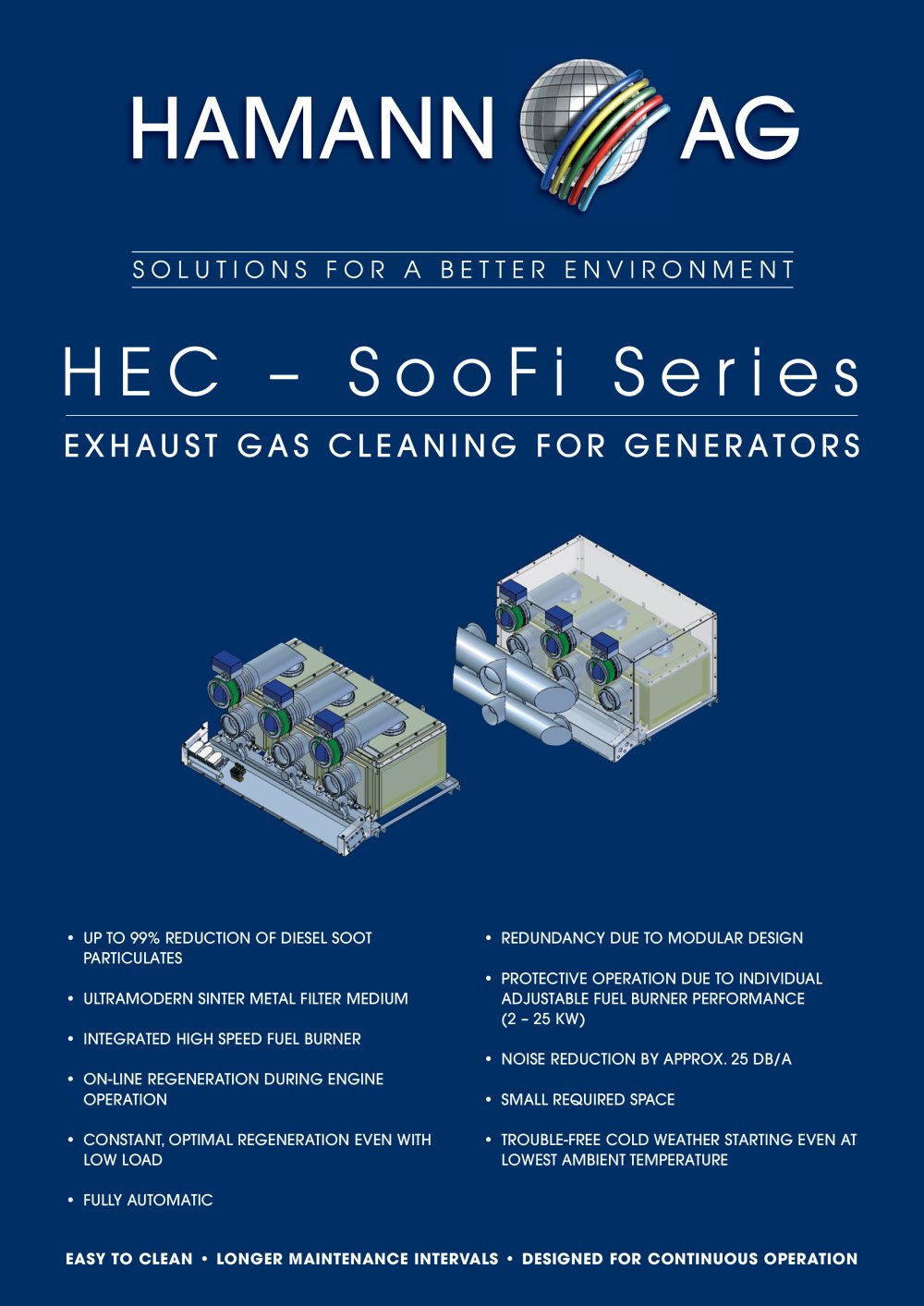

• The HEC SooFi Series uses sintered metal filter elements to retain soot particles in exhaust gas, achieving up to 99% retention.
• Soot collected in the filter elements is oxidized at regular intervals using a fuel burner, raising the internal temperature above 500 °C for regeneration.
• For continuous operation, an additional filter module allows for alternating regeneration without engine interference.

Norms and Recommendations:

• The system functions as a sound absorber, reducing sound pressure levels by approximately 25 dB/A.
• Requires current, air, and fuel supply for the regeneration burner, compatible with nearly all fuel grades.
• Ashes from engine oil combustion and soot regeneration must be removed at regular maintenance intervals.

Maintenance and Monitoring:

• Filter packages can be cleaned with compressed air or a high-pressure cleaner.
• An electronic control unit (ECU) monitors and controls all functions automatically, with error messages submitted to an existing bus system.
• Equipped with a data logger to store operating states and errors on a flash card.

Technology:

• HEC SooFi is based on Greentop® Technology.
