Overview: The document provides detailed specifications and features of the FURUNO LS-4100, a 5-inch LCD sounder designed for marine applications. It highlights the device's capabilities, technical specifications, and available options.

Specifications:

Display: 5-inch monochrome LCD with 4 gray tones, resolution of 240 (H) x 320 (V) pixels.
Frequency: Dual frequency operation at 50 and 200 kHz.
Output Power: 300 watts RMS.
Display Modes: Includes Normal (Single/Dual), Bottom-Zoom, Bottom-Lock Expansion, Marker Zoom, and A-scope.
Range: Basic range from 2 to 500 meters, with zoom scale selectable from 2 to 50 meters.
Interface: NMEA 0183 Ver. 1.5/2.0/3.0 compatible, with various input and output options.
Power Supply: 12 VDC, 6 W.
Environmental Conditions: Operating temperature from -15°C to +55°C, waterproofing standard IPX5.

Features:

High-contrast monochrome LCD for clear visibility.
"White line" and "Sea-Through" technology for distinguishing echoes.
Wind direction and speed display with appropriate sensor.
"Mini-navigator" feature with 12 programmable waypoints.
Unique Bottom-Lock Fish Alarm for consistent fish detection.

Equipment List:

Standard: Display unit, installation materials, and standard spare parts.
Optional: Cable for speed/temperature sensor, inner hull kit, and various transducers (plastic and bronze, thru-hull and transom types).

Interconnection: The LS-4100 can accept up to 2 NMEA format data inputs and is compatible with additional sensors and GPS/WAAS antennas.

Catalog excerpts

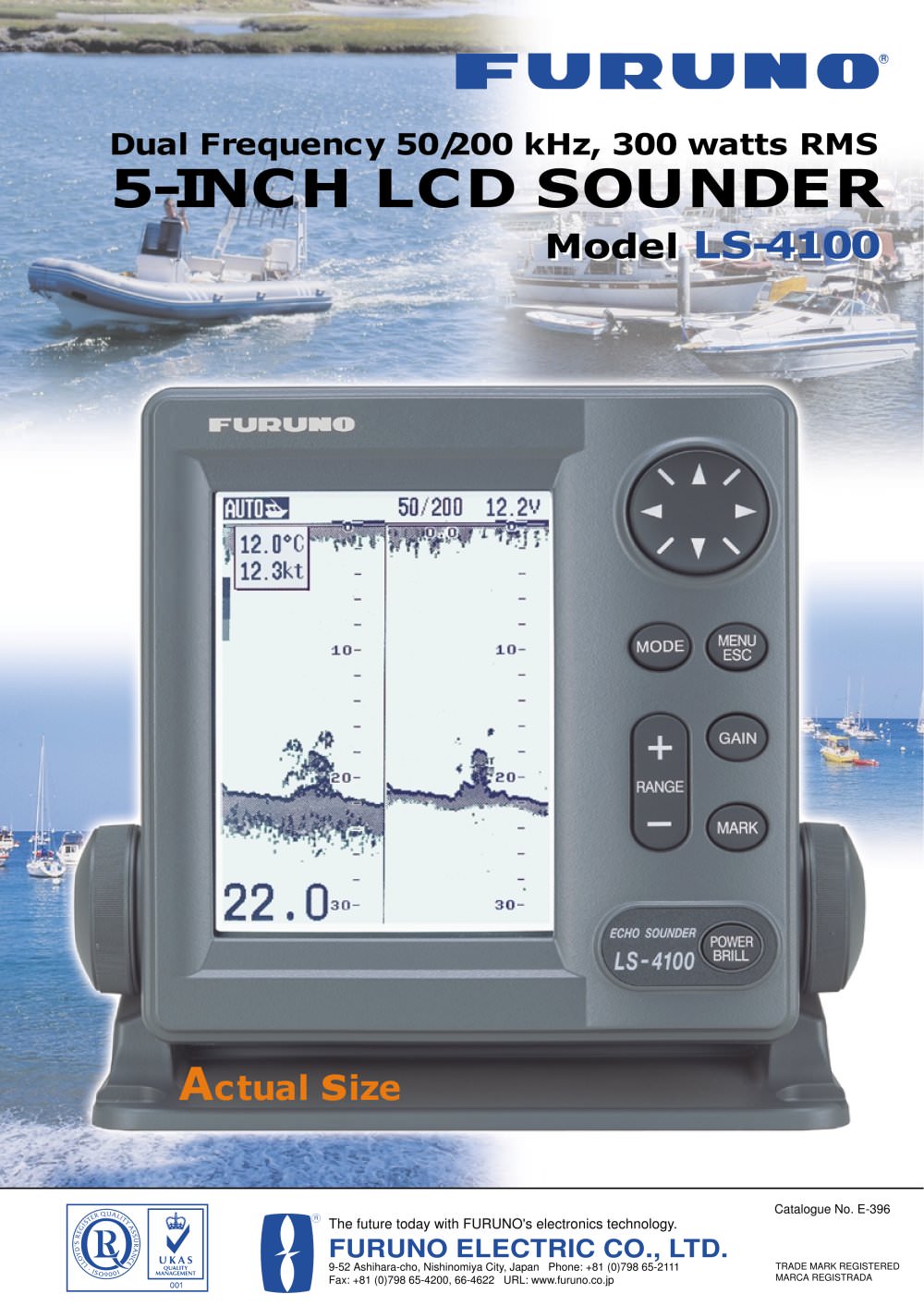

R Dual Frequency 50/200 kHz, 300 watts RMS 5-INCH LCD SOUNDER Model LS-4100 Actual size Catalogue No. E-396 R The future today with FURUNO's electronics technology. FURUNO ELECTRIC CO., LTD. 9-52 Ashihara-cho, Nishinomiya City, Japan Phone: +81 (0)798 65-2111 Fax: +81 (0)798 65-4200, 66-4622 URL: www.furuno.co.jp TRADE MARK REGISTERED MARCA REGISTRADA

Open the catalog to page 1

q High-contrast monochrome LCD (240 x 320 pixels) q "Mini-navigator" feature provides 12 "Go To" waypoints with programmable names and q Dual Frequency 50/200 kHz, 300 W RMS registers in video plotter at the same time by marking waypoints. q "White line" and "Sea-Through" technology discriminates echoes from the seabed or q Unique Bottom-Lock Fish Alarm provides anywhere in the water column consistent audible bottom fish detection in varying depths q Wind direction and speed display with appropriate sensor. Waypoints Text Nav Data Bottom Zoom with white line Graphical Nav Data Single freq/A-scope...
