Navnet

Product catalog summary

Introduction to NavNet: Furuno's NavNet is a line of Ethernet networked marine electronics products that facilitate communication between displays over a high-speed network. It allows for customization and integration of components such as Radar, GPS, and Fish Finder.

Network Capabilities: NavNet operates on a 10-BaseT Ethernet network, supporting fast data transfer and potential expansion up to 1 Gigabit per second. It accommodates multiple displays and components, offering over 50 display modes for individual or networked operation.

User Interface: The system features an intuitive interface with a straightforward menu structure accessible via softkeys and track control, with uniform controls across all units to reduce training time.

Expandability: NavNet supports future expansion by adding multiple units through an Ethernet Hub, allowing integration with PCs for waypoint and route management.

Support and Service: Furuno provides global support with service centers on six continents, ensuring comprehensive service for NavNet products.

Integrated Network: The NavNet network connects multiple devices via an Ethernet Hub, allowing each unit to function as a universal display. It supports up to four displays and additional components like radar and GPS antennas.

GPS Receiver Antenna: A compact 12-channel GPS Receiver Antenna can be added to any NavNet unit, providing accurate position fixing across the network.

Display Options: NavNet offers various display units, including 10" Mono CRT, 10.4" Color LCD, and 7" Color TFT LCD, each with features like anti-reflective coating and multiple display modes.

Network Sounder: The Network Sounder sensor can be connected to any NavNet unit, offering dual-frequency sounder capabilities with features like marker zoom and depth alarms.

Specifications Overview:

Frequency and Pulse Characteristics: Details on pulse length and Pulse Repetition Rate (PRR).
Noise Figure: Specifications related to noise performance.

Environmental Conditions (IEC 60945):

Temperature: Operating range from -15ºC to +55ºC.
Waterproofing: Compliance with IEC 60529 IPX5 and USCG CFR-46 standards.

Power Supply:

Standard power supply is 12-24 VDC with optional 115/230 VAC rectifier.

Display Unit:

Available in various sizes and resolutions, including 7" monochrome and color TFT LCDs, and a 10.4" color TFT LCD.
Interfaces include Ethernet 10-BaseT and NMEA 0183 format for input and output.

Plotter Characteristics:

Map scale ranges from 0.125 to 2,048 nm.
Latitude limits between 85ºN and 85ºS.
Memory capacity supports up to 8,000 points for ship's track and marks, 1,000 waypoints, and 200 planned routes.
Alarms for arrival, anchor watch, proximity alert, and more.

Receiver Characteristics:

Includes GPS receiver with 12 discrete channels and dual frequency transceivers (50 and 200 kHz).
Accuracy and geodetic systems include WGS-84 and NAD-27.

Transducers:

Various models available, including plastic and bronze thru-hull options, with optional speed and temperature sensors.

Network and Connectivity:

Multiple radar antennas and GPS receivers can be used within the NavNet network.

Contact Information:

Furuno offices located in the USA, UK, France, Spain, Denmark, Norway, Sweden, and Finland.

Catalog excerpts

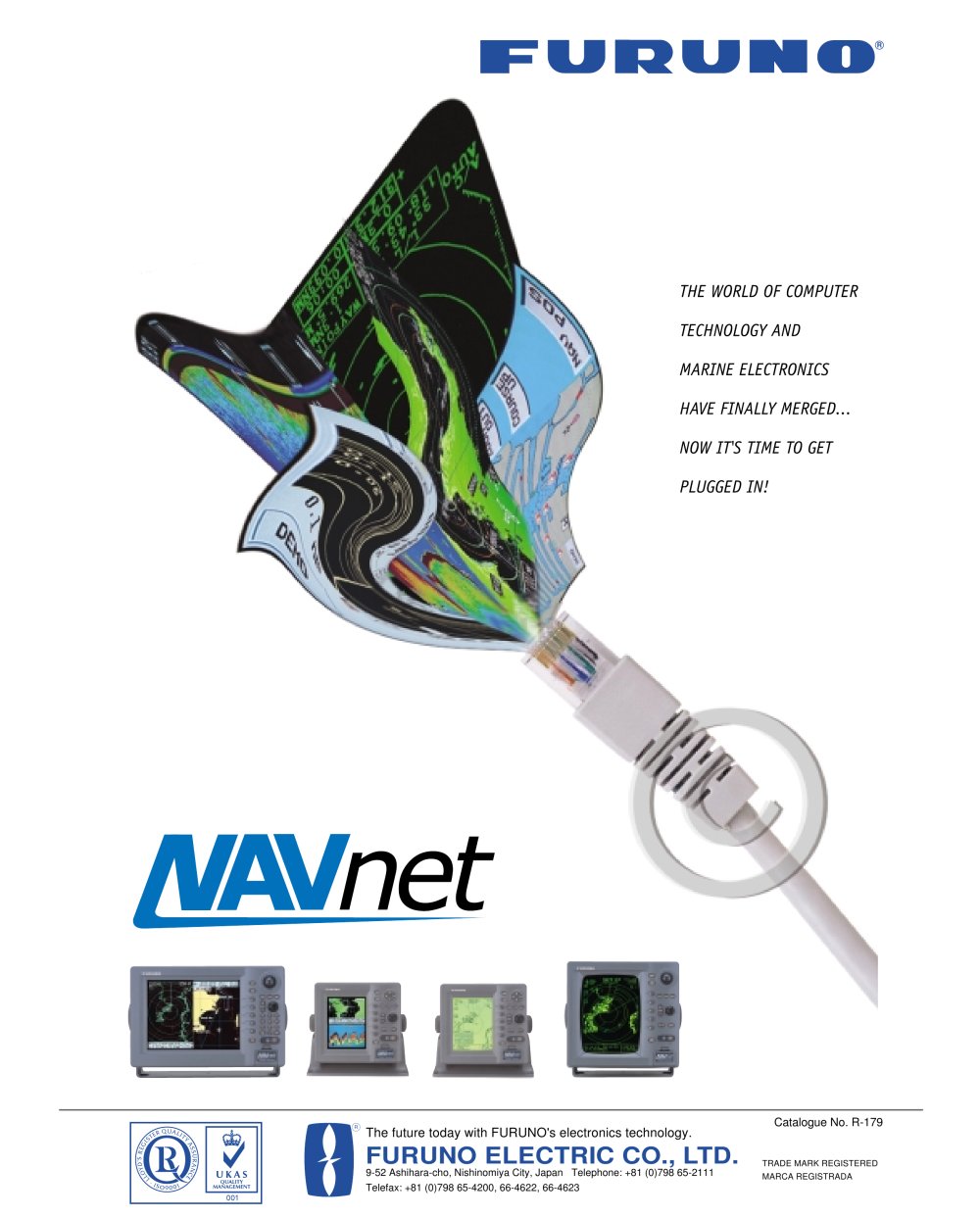

R R The future today with FURUNO's electronics technology. FURUNO ELECTRIC CO., LTD. 9-52 Ashihara-cho, Nishinomiya City, Japan Telephone: +81 (0)798 65-2111 Telefax: +81 (0)798 65-4200, 66-4622, 66-4623 Catalogue No. R-179 TRADE MARK REGISTERED MARCA REGISTRADA

Open the catalog to page 1

THE FUTURE OF MARINE ELECTRONICS IS HERE! Welcome to the future of marine electronics! Introducing NavNet, Furuno's new line of Ethernet networked products. NavNet gives you the capability to communicate from one display to another over Furuno's High Speed Network. THE NETWORK The heart of Furuno’s NavNet is its Ethernet based network. Using today’s technology, NavNet runs on a 10-BaseT network, which means fast data transfer between your equipment. And because Ethernet offers the option to increase speeds from 10MB per second all the way to 1 Gigabit per second, NavNet’s future expansion is...

Open the catalog to page 2

ONE INTEGRATED NETWORK FOR ALL YOUR ELECTRONICS Furuno's NavNet network allows you to connect multiple devices together through the use of an Ethernet Hub. By utilizing the NavNet network, each unit becomes a universal display, allowing you to access any component that is connected. 7" Color LCD Radar/VideoPlotter 10.4" Color LCD Radar/VideoPlotter Ethernet 10/100 Base-T Hub 7" Mono LCD Radar/VideoPlotter Furuno's NavNet products give you the exibility to use them as a single, stand-alone system or as part of an integrated network bridge. Using the same network technology seen in most professional...

Open the catalog to page 3

10.4" Color TFT LCD Radar/VideoPlotter 7" Color TFT LCD Radar/VideoPlotter MODEL 1833C MODEL 1933C MODEL 1943C MODEL 1722C MODEL 1732C MODEL 1742C 0.125 to 36 nm, 4 kW, 24" Radome 0.125 to 48 nm, 4 kW, 3.5' Open Array 0.125 to 64 nm, 6 kW, 4' Open Array Color Radar / VideoPlotter MODEL 1762C NETWORK SOUNDER The Network Sounder is a sensor that plugs into any NavNet unit or into a Hub for multi-display installations. The sensor turns any NavNet unit into a dual-frequency 50/200 kHz, 600W or 1kW Sounder. It incorporates all of the award winning Furuno Sounder features you've grown to depend on,...

Open the catalog to page 4

7" Mono TFT LCD Radar/VideoPlotter 10" Mono CRT Radar/VideoPlotter MODEL 1722 MODEL 1732 MODEL 1742 MODEL 1833 MODEL 1933 MODEL 1943 MODEL 1762 0.125 to 24 nm, 2.2 kW, 18" Radome 0.125 to 36 nm, 4 kW, 24" Radome 0.125 to 36 nm, 2 kW, 2' Open Array (Non CE-Mark) 0.125 to 48 nm, 4 kW, 3.5' Open Array 235 9.3" 262 10.3" 281 11.1" 383 15.1" 360 14.2" 32 1.2" 10.4" TFT LCD DISPLAY 280 11.0" 302 11.9" 255 10.0" 265 10.5" 25 320 12.6" 265 10.4" 84 3.3" 292 11.5" 180 7.1" 191 7.5" 20 33 1.3" 10" CRT DISPLAY 7" TFT LCD DISPLAY 253 10.0" 1.3 0.5" 212 8.4" 240 9.5" 224 8.8" 125 4.9" 1.4" USER-FRIENDLY INTERFACE...

Open the catalog to page 5

10.4" Color TFT LCD VideoPlotter 7" Color TFT LCD VideoPlotter MODEL GD-1900C Ultra-bright picture displayed on a 10.4" color TFT LCD with wide viewing angle MODEL GD-1700C Vivid picture provided on a 7" color TFT LCD with wide viewing angle VideoPlotter CARTOGRAPHY OPTIONS Furuno’s NavNet products give you the power to choose what type of charts you want to use for the plotter. You can choose from two units that accept either FURUNO CDC and Navionics or C-Map NT mini-chart cards. Simply specify which charting system you prefer to use when you place your order. All cards can be front loaded to...

Open the catalog to page 6

SPECIFICATIONS OF NavNet SERIES 7" Monochrome Radar / VideoPlotter MODEL 1722 MODEL 1732 MODEL 1742 MODEL 1762 *Non CE-Mark DISPLAY UNIT 1. Type 2. NavNet Interface 3. Interface (NMEA 0183 format) --: any talker (menu selection) RADAR CHARACTERISTICS 1. Display Modes 2. Range Scales (nm) 3. Echo Trail PLOTTER CHARACTERISTICS 1. Map Scale 2. Latitude Limits 3. Plot Interval 4. Display Modes 5. Presentation Modes 6. Memory Capacity 7. Alarms 8. Electronic Charts* ANTENNA RADIATOR 1. Type 2. Rotation Speed RF TRANSCEIVER 1. Peak Output Power 2. Frequency 3. Pulselength & PRR 4. Noise Figure ENVIRONMENT...

Open the catalog to page 7

10" Monochrome CRT Radar / VideoPlotter MODEL 1833 MODEL 1933 MODEL 1943 DISPLAY UNIT 1. Type 2. NavNet Interface 3. Interface (NMEA 0183 format) --: any talker (menu selection) RADAR CHARACTERISTICS 1. Display Modes 2. Range Scales (nm) 3. Echo Trail PLOTTER CHARACTERISTICS 1. Map Scale 2. Latitude Limits 3. Plot Interval 4. Display Modes 5. Presentation Modes 6. Memory Capacity 7. Alarms 8. Electronic Charts* ANTENNA RADIATOR 1. Type 10" Green phosphor CRT 481 x 640 pixels 10.4" Color TFT LCD 640 x 480 pixels Ethernet 10-BaseT Input: BWC, BWR, DBK, DBS, DBT, DPT, GGA, GLL, GSV, MSS, MTW, RMA,...

Open the catalog to page 8

SPECIFICATIONS OF NavNet SERIES VideoPlotter GD-1700C GD-1700 DISPLAY UNIT 1. Type 2. NavNet Interface 3. Interface (NMEA 0183 format) --: any talker (menu selection) PLOTTER CHARACTERISTICS 1. Map Scale 2. Latitude Limits 3. Plot Interval 4. Display Modes 5. Presentation Modes 6. Memory Capacity 7. Alarms 8. Electronic Charts* ENVIRONMENT (IEC 60945 test method) Temperature Waterproong GD-1900C 7" Monochrome TFT LCD 240 x 320 pixels 7" Color TFT LCD 232 x 320 pixels 10.4" Color TFT LCD 640 x 480 pixels Ethernet 10-BaseT Input: BWC, BWR, DBK, DBS, DBT, DPT, GGA, GLL, GSV, MSS, MTW, RMA, RMB,...

Open the catalog to page 9

SPECIFICATIONS OF NavNet SERIES 602 23.7" 665 26.2" 160 6.3" 220 8.7" 266 10.5" 460 18.1" 226 8.9" 310 12.2" 348 13.7" 160 6.3" 300 11.8" ø460 mm (18") Radome ø602 mm (24") Radome 665 mm (2 ft) Open 1255 49.4" 445 17.5" 445 17.5" 1035 40.8" 250 9.8" 340 13.4" 250 9.8" 340 13.4" 1255 mm (4 ft) Open 1036 mm (3.5 ft) Open MULTIPLE DISPLAY SYSTEM USING NavNet NETWORK GPS RECEIVER ANTENNA SINGLE DISPLAY SYSTEM GPS RECEIVER ANTENNA ETHERNET HUB Multiple Radar Antenna & GPS Receivers can be used, but only one antenna & receiver is requred to receive GPS information on any unit connected to the network....
