FT752-DM50 (DIRECT MOUNT)

FT752-DM50 (DIRECT MOUNT)

FT752-DM50 (DIRECT MOUNT)

Product catalog summary
Overview: The FT752-DM50 is an advanced acoustic resonance wind sensor designed for extreme environments, such as offshore typhoon and hurricane regions. It features FT's exclusive Acu-Res® technology and Advanced Sensor Diagnostics for enhanced fault monitoring.
Specifications:
  • Wind Speed: Measures 0-90m/s with a resolution of 0.1m/s and varying accuracy depending on speed range.
  • Wind Direction: Full 360° range with 1° resolution and accuracy of 2° RMS within ±10° datum.
  • Sensor Performance: Operates from 0-4000m altitude and -40° to +85°C temperature range, with IP67 and IPX6K ingress protection.
  • Power Requirements: Operates on 12V to 30V DC, with a heater that consumes up to 6A.
  • Physical Attributes: Weighs 535g, made from hard-anodised aluminium alloy, and mounts directly onto a 50.2mm pipe.
Features:
  • High Data Availability: Offers low power consumption and high signal-to-noise ratio, ensuring reliable data acquisition.
  • Extreme Survivability: Rugged design with de-icing capabilities, corrosion resistance, and lightning protection.
  • Digital and Analogue Interfaces: RS485 and 4-20mA options available, with error handling capabilities.
Accessories:
  • FT040 and FT041 Alignment Tools: Facilitate precise alignment of the sensor using laser units.
Additional Information: The sensor includes acoustic temperature measurement capabilities, available only on digital sensors, with a resolution of 0.1° and accuracy of 1°C RMS.
See more

Catalog excerpts

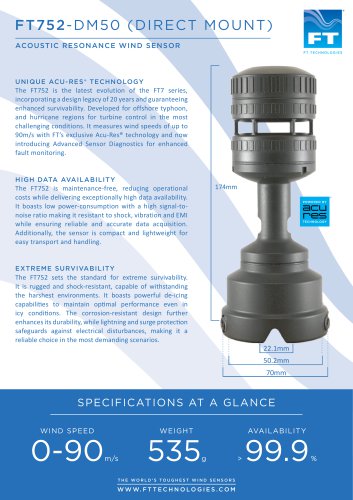

FT752-DM50 (DIRECT MOUNT)-1

The FT752 is the latest evolution of the FT7 series, incorporating a design legacy of 20 years and guaranteeing enhanced survivability. Developed for offshore typhoon, and hurricane regions for turbine control in the most challenging conditions. It measures wind speeds of up to 90m/s with FT’s exclusive Acu-Res® technology and now introducing Advanced Sensor Diagnostics for enhanced fault monitoring. The FT752 is maintenance-free, reducing operational costs while delivering exceptionally high data availability. It boasts low power-consumption with a high signal-tonoise ratio making it resistant to shock, vibration and EMI while ensuring reliable and accurate data acquisition. Additionally, the sensor is compact and lightweight for easy transport and handling. The FT752 sets the standard for extreme survivability. It is rugged and shock-resistant, capable of withstanding the harshest environments. It boasts powerful de-icing capabilities to maintain optimal performance even in icy conditions. The corrosion-resistant design further enhances its durability, while lightning and surge protection safeguards against electrical disturbances, making it a reliable choice in the most demanding scenarios. THE WORLD’S TOUGHEST WIND SENSORS

 Open the catalog to page 1
FT752-DM50 (DIRECT MOUNT)-2

WIND SPEED WIND DIRECTION Accuracy (outside ±10° datum). ... SENSOR PERFORMANCE POWER REQUIREMENTS ACOUSTIC TEMPERATURE* Under the following conditions: Available on digital sensors only Acoustic Resonance (automatically compensates for variations in temperature, pressure & humidity) .Metres per second, kilometres per hour or knots .0° to 55°C. The heater set point can be configured. 6A (max) - The heater is thermostatically controlled. Heater power consumption will depend on the heater energy required to keep the sensor's temperature at a user determined set point. The heater is limited to 4A...

 Open the catalog to page 2
