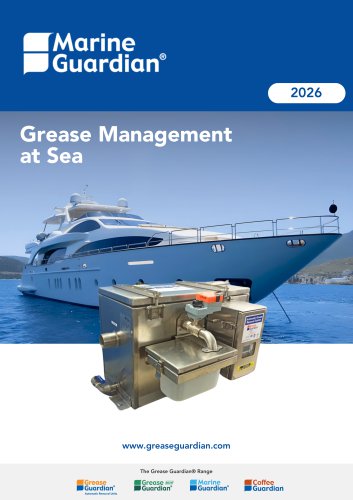

Marine Guardian grease separators
4Pages

PLAY VIDEO GREASE MANAGEMENT SOLUTIONS AT SEA Galley and centrally located grease traps for vessels Manual emptying or automatic grease removal options 316 Stainless Steel Compact footprint for confined spaces High efficiency Levels 1 I/s to 20 I/s options Easy to install including retrofit Designed for high seas

316 Stainless steel grease traps from 1 I/s to 2 for undersink or compact locations Traps grease and solids allowing only cleaner water through Model Length Length Height Inlet/Outlet (D) Width Basket Inlet Height Outlet Height Max Flow (A) (B) (C) (E) (F) (G) (H) INCLUDES TANK ONLY INCLUDES CLEARANCE INLET OUTLET CONTAINER PANEL NEEDED All dimensions in mm. Inlet / outlet height from the bottom of the pipe. All drawings in this brochure are guidelines and are subject to change. Always request the latest drawings from your suppliers. CENTRALISED GREASE TRAP (MANUAL) 316 Stainless steel...

AT SOURCE GREASE TRAP (AUTO-SKIM) 316 Stainless steel grease traps from 1 to 2.25 I/s for undersink or compact locations. Traps grease and filters solids allowing only cleaner water through. Captured grease automatically skimmed to external collection point Length Length Height Inlet/Outlet (D) Width Basket Inlet Height Outlet Height (F) (G) (H) INCLUDES TANK ONLY MOUNTING INCLUDES CLEARANCE PANEL NEEDED INLET OUTLET All dimensions in mm. Inlet / outlet height from the bottom of the pipe. All drawings in this brochure are guidelines and are subject to change. Always request the latest...

CUSTOMISED OPTIONS For specific requirements such as higher flows, naval applications, monitoring, shock mounted equipment and other requirements contact your supplier for details. DECIDING WHICH MARINE GUARDIAN TO SELECT SPACE If space is a premium on board, then selecting our at source options will ensure minimum space is occupied. At source also means close to the problem keeping more pipes protected. If space is available consider centrally locating the grease trap. EMPTYING If emptying of the grease trap is problematic because of the trap's location, facilities at port or safety on...
