fusion2 5th line
2Pages

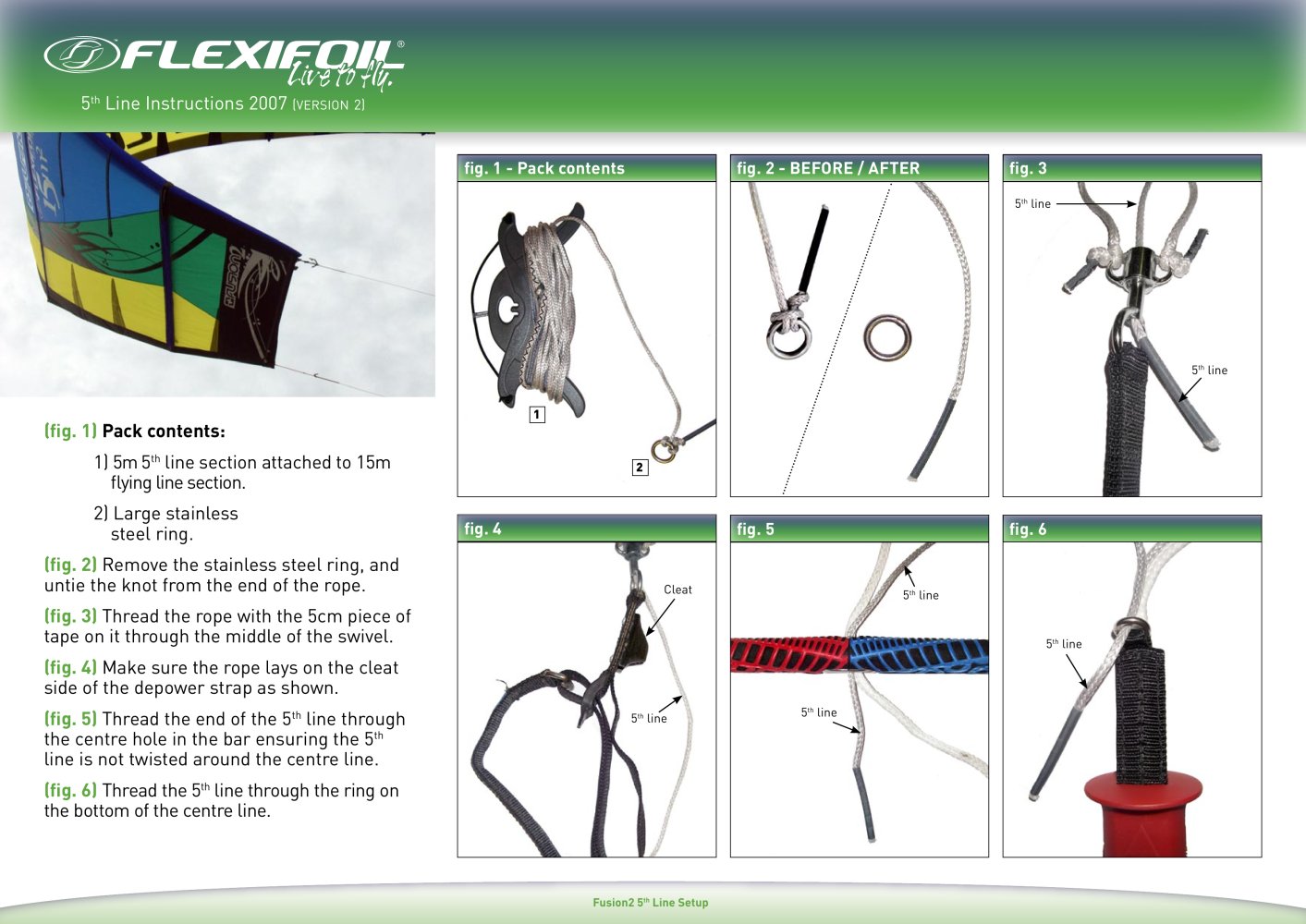

5th Line Instructions 2007 (VERSION 2) g. 1 - Pack contents g. 2 - BEFORE / AFTER g. 3 5th line 5th line 1 (g. 1) Pack contents: 1) 5m 5th line section attached to 15m ying line section. 2) Large stainless steel ring. (g. 2) Remove the stainless steel ring, and untie the knot from the end of the rope. 2 g. 4 g. 6 g. 5 Cleat 5th line (g. 3) Thread the rope with the 5cm piece of tape on it through the middle of the swivel. 5th line (g. 4) Make sure the rope lays on the cleat side of the depower strap as shown. (g. 5) Thread the end of the 5th line through the centre hole in the bar ensuring the 5th line is not twisted around the centre line. 5th line (g. 6) Thread the 5th line through the ring on the bottom of the centre line. Fusion2 5th Line Setup 5th line

5th Line Instructions 2007 (VERSION 2) (g. 7) Tie a knot in the end of the 5th line next to the tape. g. 7 g. 8 (g. 8) Larkshead the stainless steel ring on to the end of the rope. (g. 9) Attach the leash to ring on the end of the 5th line and check all the lines are the same length. To check the length of your lines, we recommend you attach all ying lines to a xed point and put the bar in the full power position. Walk back until the lines are fully extended. If all of the lines have equal tension, your lines are of equal length. If one of your main lines is not the correct length, adjust...
