Panda 8000i

Panda 8000i
1 / 1 PageView full catalog

Panda 8000i

Product catalog summary
Disclaimer: The document provides technical specifications and performance data for the Panda 8000i PMS marine generator. It notes that specifications may change due to ongoing product development and that performance data is based on operation at 100m above sea level at 20°C.
General Technical Data: The Panda 8000i PMS is part of the iSeries - Perfect Power family, designed for marine applications. It features a GFK 3D capsule type and is manufactured by Fischer Panda GmbH. The generator has a sound level of 52/63/67 dB(A) at distances of 7m/3m/1m respectively, and weighs 105 kg. Its dimensions are 520 x 445 x 545 mm.
Engine Specifications: The generator is powered by a Kubota engine, model KU Z482, with 2 cylinders and a displacement of 479 cm3. It uses a 12 V starter system and complies with various emission regulations including IMO MARPOL 73/78, US 40CFR 1042, EU 2016/1628, and China 20891-2014.
Electrical Alternator: The generator operates with a voltage tolerance of 3% and a power factor (Cos Phi) of 0.80. It is equipped with an iControl system and has windings with an isolation class of H.
Performance Data: The generator operates at an engine speed of 2200 - 2800 rpm, with a voltage of 230 V and a frequency of 50 Hz. It is a single-phase generator with a nominal performance of 6.4 kW and 8.0 kVA.
Service and Installation Kits: Various kits are available for service and installation, including a basic and premium installation kit, as well as captive and non-captive shock mountings.
See more

Catalog excerpts

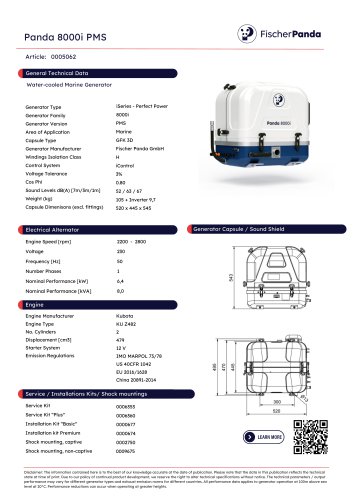

Panda 8000i-1

5®) FischerPanda Water-cooled Marine Generator Article: 0005062General Technical Data Generator Type Generator Family Generator Version Area of Application Capsule Type Generator Manufacturer Windings Isolation Class Control System Voltage Tolerance Cos Phi Sound Levels dB(A) [7m/3m/1m] Weight (kg) Capsule Dimenisons (excl. fittings) iSeries - Perfect Power Fischer Panda GmbH H Electrical Alternator Generator Capsule / Sound Shield Engine Speed [rpm] Number Phases Engine Engine Manufacturer Engine Type No. Cylinders Displacement [cm3] Starter System Emission Regulations Service / Installations Kits/ Shock mountings Service Kit 0006353 Shock mounting, captive 0002750 Shock mounting, non-captive 0009675 Disclaimer: The information contained here is to the best of our knowledge accurate at the date of publication. Please note that the data in this publication reflects the technical state at time of print. Due to our policy of continual product development, we reserve the right to alter technical specifications without notice. The technical parameters / output performance may vary for different generator types and exhaust emission norms for different countries. All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater heights.

 Open the catalog to page 1

All Fischer Panda catalogs and brochures

  1. Fischer Panda Marine Generators
    Fischer Panda Marine Generators

    11  Pages

  2. Propulsion & Power Solutions By Fischer Panda
    Propulsion & Power Solutions By Fischer Panda

    6  Pages

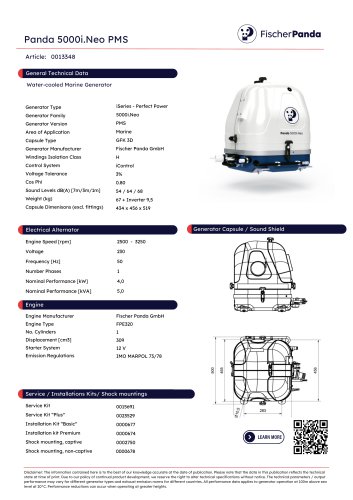

  3. Panda 5000i.Neo
    Panda 5000i.Neo

    1  Page

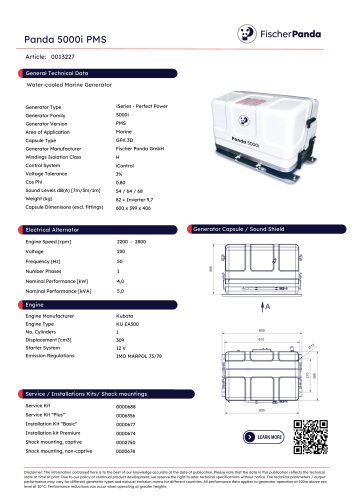

  4. Panda 5000i
    Panda 5000i

    1  Page

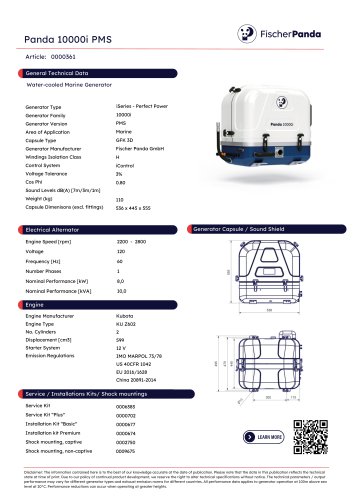

  5. Panda 10000i
    Panda 10000i

    1  Page

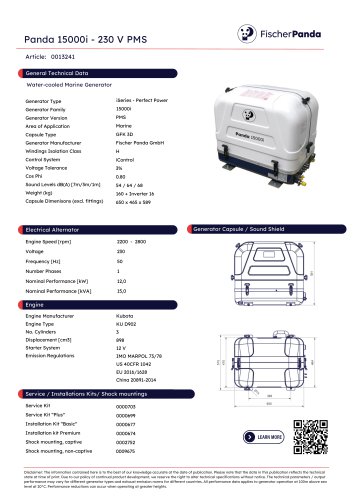

  6. Panda 15000i
    Panda 15000i

    1  Page

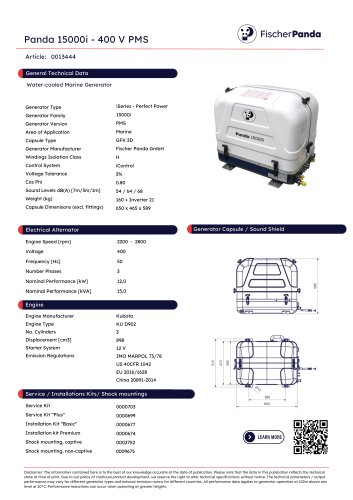

  7. Panda 15000i 400 V
    Panda 15000i 400 V

    1  Page

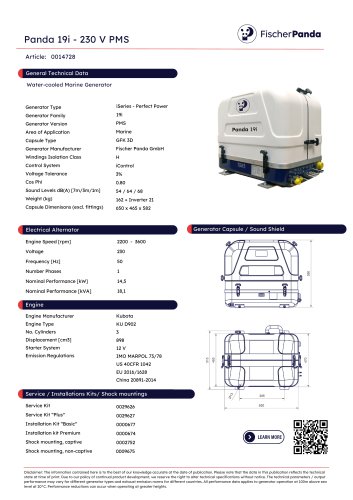

  8. Panda 19i
    Panda 19i

    1  Page

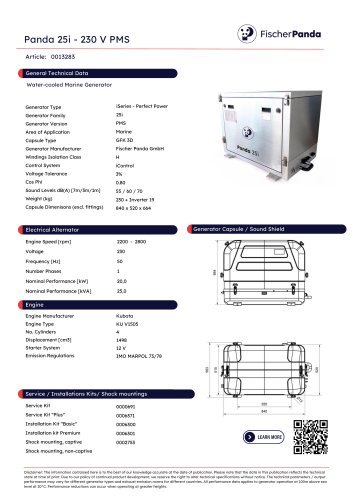

  9. Panda 25i
    Panda 25i

    1  Page

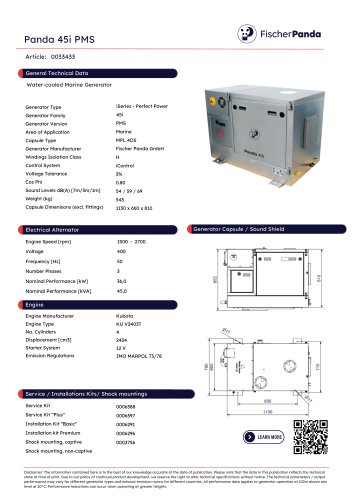

  10. Panda 45i
    Panda 45i

    1  Page

  11. AGT4000 12 V
    AGT4000 12 V

    1  Page

  12. AGT4000 24 V
    AGT4000 24 V

    1  Page

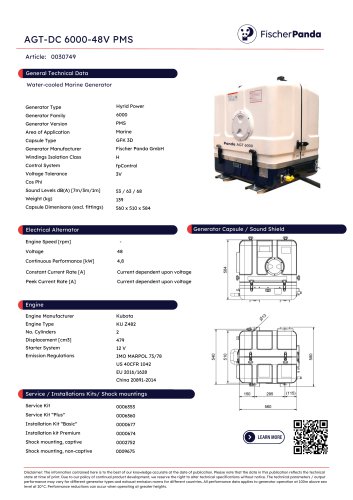

  13. AGT 6000 48 V
    AGT 6000 48 V

    1  Page

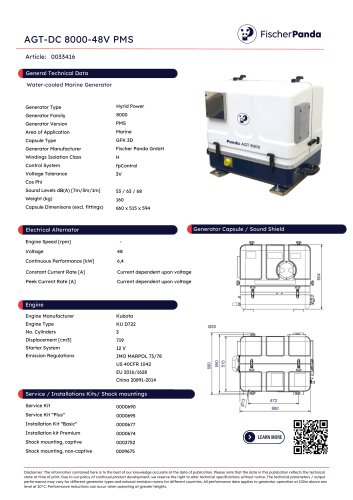

  14. AGT 8000 48 V
    AGT 8000 48 V

    1  Page

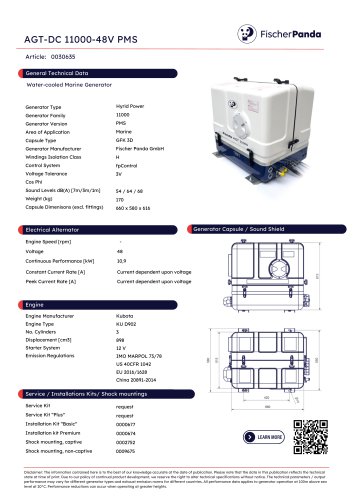

  15. AGT 11000 48 V
    AGT 11000 48 V

    1  Page

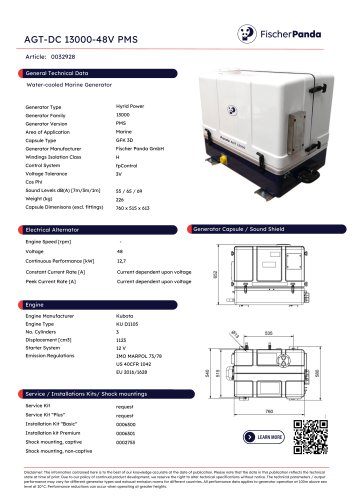

  16. AGT 13000 48 V
    AGT 13000 48 V

    1  Page

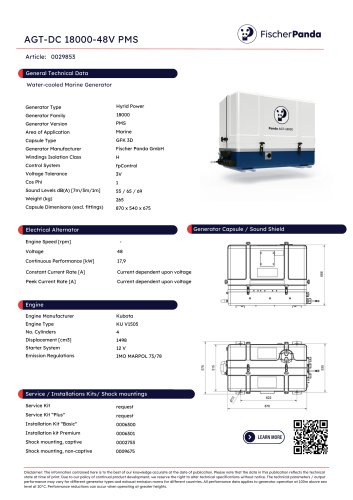

  17. AGT 18000 48 V
    AGT 18000 48 V

    1  Page

  18. Fischer Panda Variable-Speed Hybrid DC Generators
    Fischer Panda Variable-Speed Hybrid DC Generators

    4  Pages

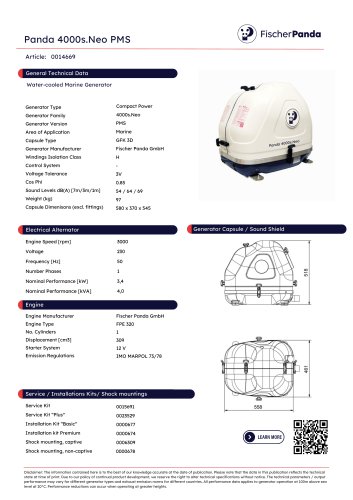

  19. Panda 4000s.Neo
    Panda 4000s.Neo

    1  Page

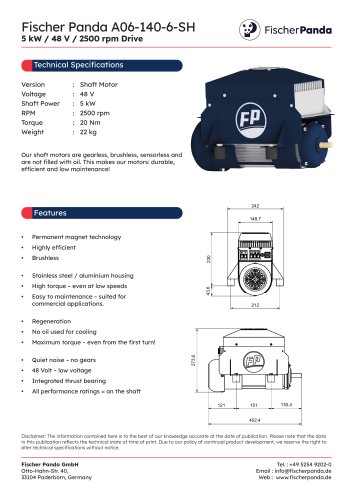

  20. 5 kW Shaft E-Motor 48 V (2500 rpm)
    5 kW Shaft E-Motor 48 V (2500 rpm)

    1  Page

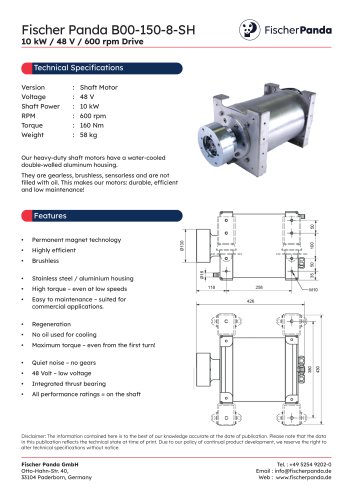

  21. 10 kW Shaft E-Motor 48 V (600 rpm)
    10 kW Shaft E-Motor 48 V (600 rpm)

    1  Page

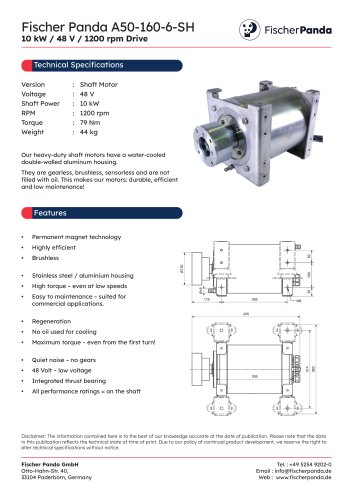

  22. 10 kW Shaft E-Motor 48 V (1200 rpm)
    10 kW Shaft E-Motor 48 V (1200 rpm)

    1  Page

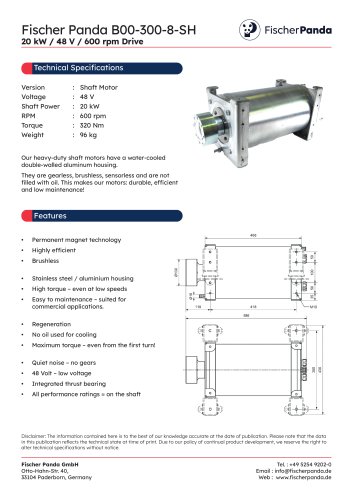

  23. 20 kW Shaft E-Motor 48 V (600 rpm)
    20 kW Shaft E-Motor 48 V (600 rpm)

    1  Page

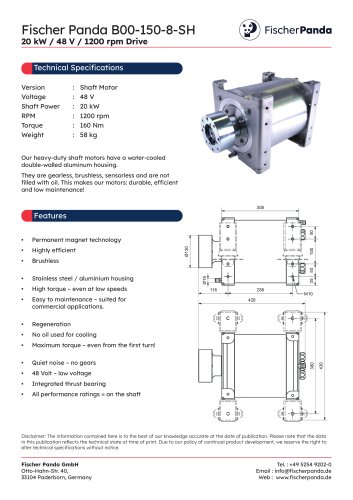

  24. 20 kW Shaft E-Motor 48 V (1200 rpm)
    20 kW Shaft E-Motor 48 V (1200 rpm)

    1  Page

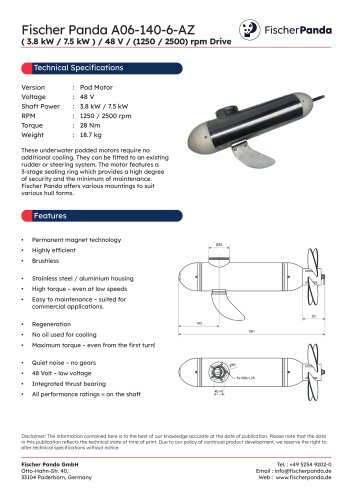

  25. 3,7 kW - 7,5 kW Pod E-Motor 48 V (1250 / 2500 rpm)
    3,7 kW - 7,5 kW Pod E-Motor 48 V (1250 / 2500 rpm)

    1  Page

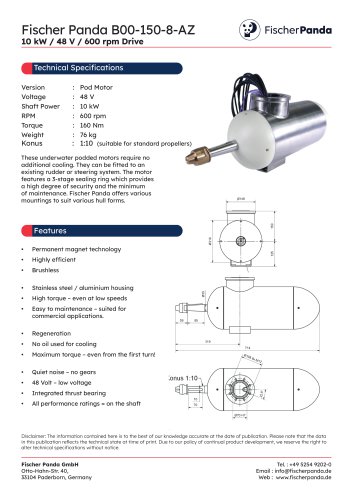

  26. 10 kW Pod E-Motor 48 V (600 rpm)
    10 kW Pod E-Motor 48 V (600 rpm)

    1  Page

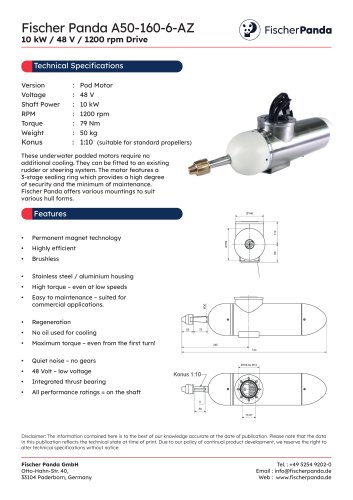

  27. 10 kW Pod E-Motor 48 V (1200 rpm)
    10 kW Pod E-Motor 48 V (1200 rpm)

    1  Page

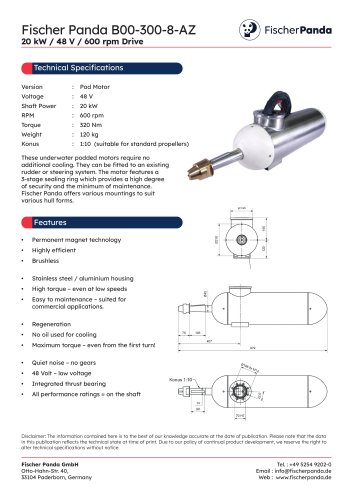

  28. 20 kW Pod E-Motor 48 V (600 rpm)
    20 kW Pod E-Motor 48 V (600 rpm)

    1  Page

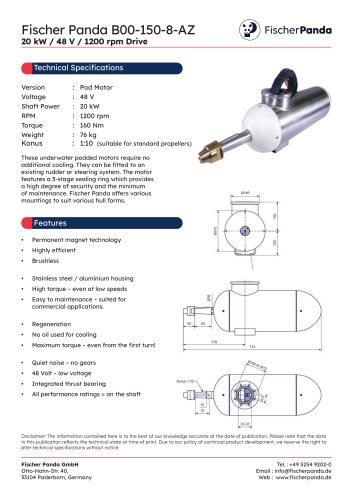

  29. 20 kW Pod E-Motor 48 V (1200 rpm)
