Hybrid-VS DC Generatoren VS45

Hybrid-VS DC Generatoren VS45
1 / 1 PageView full catalog

Hybrid-VS DC Generatoren VS45

Product catalog summary
Disclaimer: The document provides technical information accurate at the time of publication, with a note that specifications may change due to ongoing product development. Performance data is based on operation at 100m above sea level and 20°C, with potential reductions at higher altitudes.
General Technical Data: The document details the specifications of the Panda AGT-VS 45 generator, a marine application generator manufactured by Fischer Panda GmbH. It features a Hybrid-VS capsule type and uses a control system called fpControl. The generator has a voltage tolerance of 0.8 Cos Phi and sound levels measured at 54/59/69 dB(A) at distances of 7m, 3m, and 1m respectively. The generator's weight is specified as 595 kg, with dimensions of 1313 x 800 x 892 mm excluding fittings.
Engine Specifications: The engine is manufactured by Hatz, model 4H50TIC, with four cylinders and a displacement of 1952 cm3. It operates with a 12 V starter system and complies with emission regulations including IMO MARPOL 73/78, US 40CFR 1042, and EU 2016/1628.
Performance and Installation: The generator operates at engine speeds between 1200 and 3000 rpm, with a charging voltage and maximum current of 300-500 A. It has a nominal performance of 45 kW and includes an integrated hybrid charger. The generator is water-cooled, suitable for marine environments.
Service and Installation Kits: Various service and installation kits are available, including Service Kit (0002757), Service Kit “Plus” (0023180), Installation Kit “Basic” (0023179), and Installation Kit Premium (0035035). Shock mountings are available in captive (0035033) and non-captive forms.
See more

Catalog excerpts

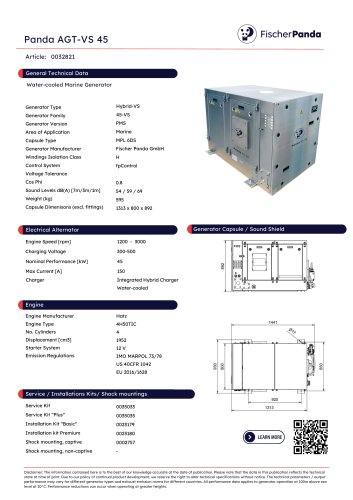

Hybrid-VS DC Generatoren VS45-1

Panda AGT-VS 45 Article: 0032821 General Technical Data Water-cooled Marine Generator Generator Type Generator Family Generator Version Capsule Type Generator Manufacturer Fischer Panda GmbH Windings Isolation Class Control System Capsule Dimenisons (excl. fittings) Generator Capsule / Sound Shield Engine Electrical Alternator Engine Speed [rpm] Charging Voltage Integrated Hybrid Charger Water-cooled Engine Engine Manufacturer Engine Type Starter System Emission Regulations Service / Installations Kits/ Shock mountings Service Kit Shock mounting, captive Shock mounting, non-captive Disclaimer: The information contained here is to the best of our knowledge accurate at the date of publication. Please note that the data in this publication reflects the technical state at time of print. Due to our policy of continual product development, we reserve the right to alter technical specifications without notice. The technical parameters / output performance may vary for different generator types and exhaust emission norms for different countries. All performance data applies to generator operation at 100m above sea level at 20°C. Performance reductions can occur when operating at greater he

 Open the catalog to page 1
