Product catalog summary
Product Description: Gas Powered Horn
Main Specifications and Performances:
  • Sound Pressure Level: 116 dB(A) at 1 meter
  • Frequency: 590 Hz
  • Vapour Pressure: 4 Bar at 20°C
  • Operating Temperature: Less than 40°C
  • Storage Temperature: Less than 50°C
  • Corrosion Resistance: Greater than 200 hours (salt spray test)
  • Weight: 300 grams
  • Flash Point: Flammable
  • Explosive Properties: Minimum 1.8%, Maximum 9.5%
  • Main Materials: ABS, Tin
  • Main Applications: Marine emergency
Packaging:
  • Clam shell dimensions: 160 x 250 x 80 mm
  • Master carton contains 20 pieces
Manufacturing Standards:
  • ISO/TS 16949
  • ISO 9001
  • ISO 14001
  • QS 9000
Conformity to Standards: TE/BS for product and packaging
Additional Specifications: Pneumatic connection details not specified
Revision Date: February 2011
See more

Catalog excerpts

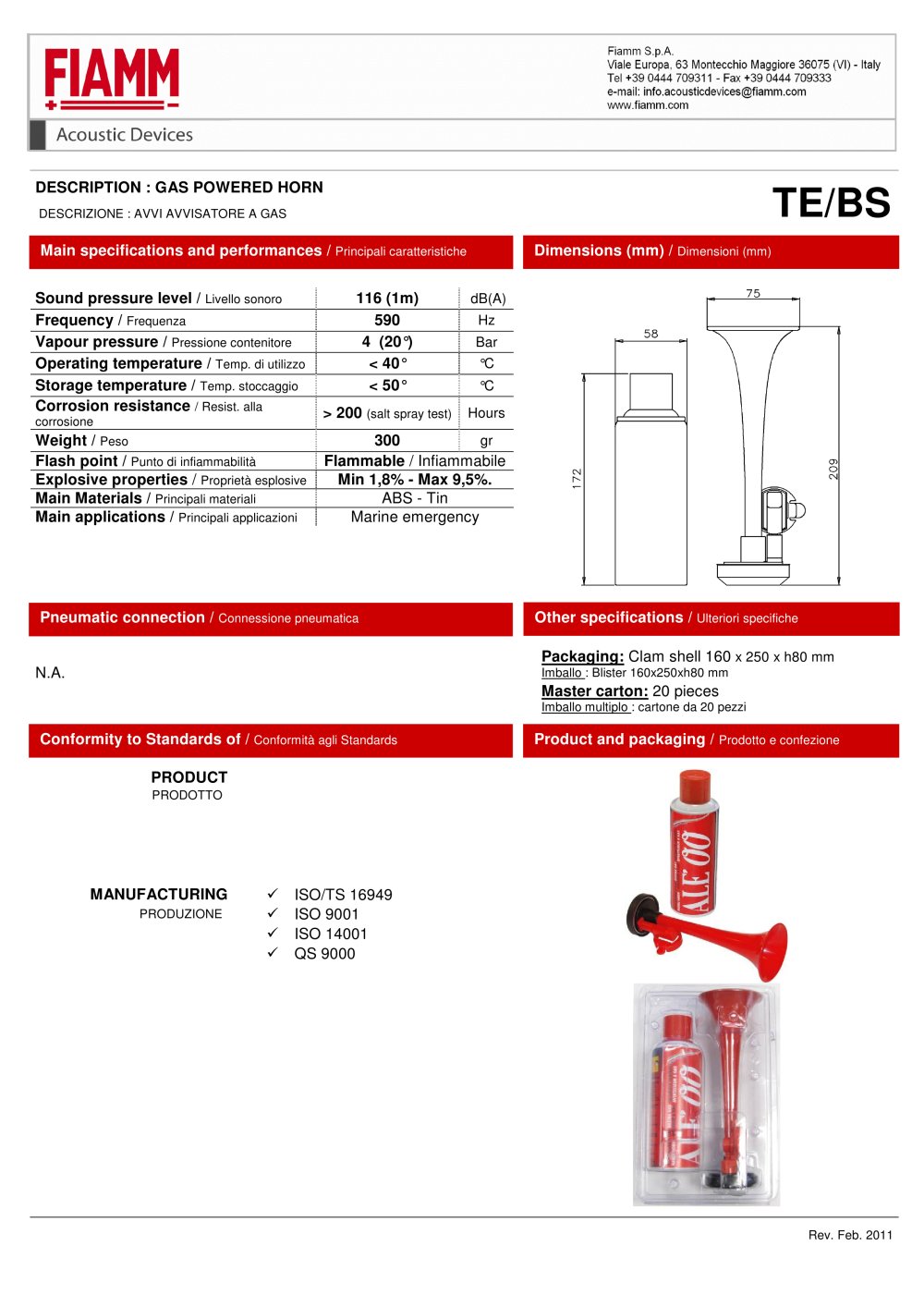

tebs_sti_0-1

DESCRIPTION : GAS POWERED HORN TE/BS DESCRIZIONE : AVVI AVVISATORE A GAS Dimensions (mm) / Dimensioni (mm) Main specifications and performances / Principali caratteristiche Sound pressure level / Livello sonoro Frequency / Frequenza Vapour pressure / Pressione contenitore Operating temperature / Temp. di utilizzo Storage temperature / Temp. stoccaggio Corrosion resistance / Resist. alla corrosione Weight / Peso Flash point / Punto di infiammabilità Explosive properties / Proprietà esplosive Main Materials / Principali materiali Main applications / Principali applicazioni 116 (1m) 590 4 (20° ) < 40° < 50° dB(A) > 200 (salt spray test) Hours Hz Bar ° C ° C gr 300 Flammable / Infiammabile Min 1,8% - Max 9,5%. ABS - Tin Marine emergency Pneumatic connection / Connessione pneumatica Other specifications / Ulteriori specifiche Packaging: Clam shell 160 x 250 x h80 mm N.A. Imballo : Blister 160x250xh80 mm Master carton: 20 pieces Imballo multiplo : cartone da 20 pezzi Conformity to Standards of / Conformità agli Standards Product and packaging / Prodotto e confezione PRODUCT PRODOTTO MANUFACTURING PRODUZIONE ISO/TS 16949 ISO 9001 ISO 14001 QS 9000 Rev. Feb. 2011

 Open the catalog to page 1
