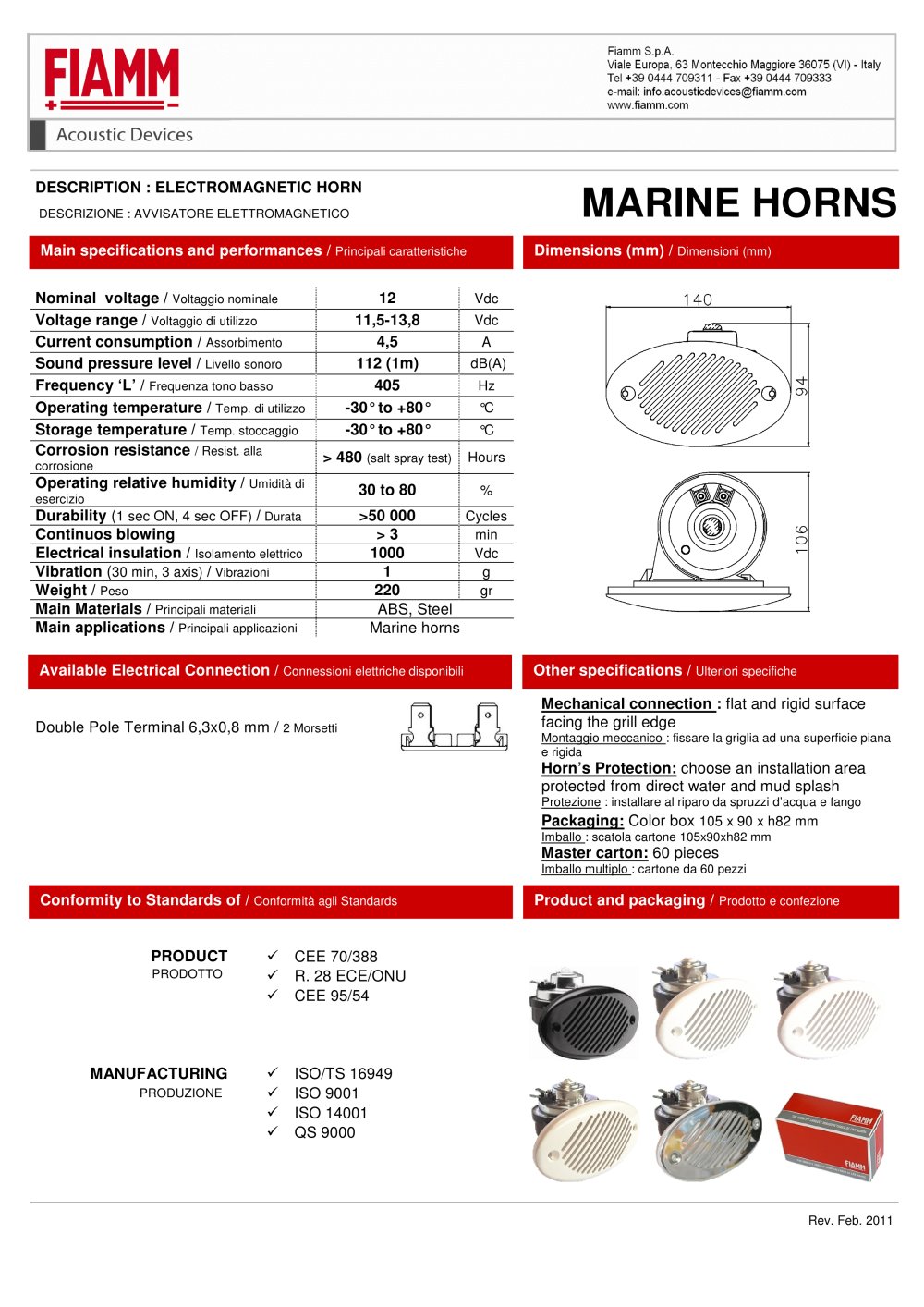

DESCRIPTION : ELECTROMAGNETIC HORN MARINE HORNS DESCRIZIONE : AVVISATORE ELETTROMAGNETICO Dimensions (mm) / Dimensioni (mm) Main specifications and performances / Principali caratteristiche Nominal voltage / Voltaggio nominale Voltage range / Voltaggio di utilizzo Current consumption / Assorbimento Sound pressure level / Livello sonoro Frequency ‘L’ / Frequenza tono basso Operating temperature / Temp. di utilizzo Storage temperature / Temp. stoccaggio Corrosion resistance / Resist. alla corrosione 12 11,5-13,8 4,5 112 (1m) 405 -30° to +80° -30° to +80° dB(A) > 480 (salt spray test) Hours 30 to 80 % Operating relative humidity / Umidità di esercizio Durability (1 sec ON, 4 sec OFF) / Durata Continuos blowing Electrical insulation / Isolamento elettrico Vibration (30 min, 3 axis) / Vibrazioni Weight / Peso Main Materials / Principali materiali Main applications / Principali applicazioni Vdc Vdc A Hz ° C ° C Cycles >50 000 min >3 Vdc 1000 g 1 gr 220 ABS, Steel Marine horns Available Electrical Connection / Connessioni elettriche disponibili Double Pole Terminal 6,3x0,8 mm / 2 Morsetti Other specifications / Ulteriori specifiche Mechanical connection : flat and rigid surface facing the grill edge Montaggio meccanico : fissare la griglia ad una superficie piana e rigida Horn’s Protection: choose an installation area protected from direct water and mud splash Protezione : installare al riparo da spruzzi d’acqua e fango Packaging: Color box 105 x 90 x h82 mm Imballo : scatola cartone 105x90xh82 mm Master carton: 60 pieces Imballo multiplo : cartone da 60 pezzi Conformity to Standards of / Conformità agli Standards PRODUCT PRODOTTO MANUFACTURING PRODUZIONE Product and packaging / Prodotto e confezione CEE 70/388 R. 28 ECE/ONU CEE 95/54 ISO/TS 16949 ISO 9001 ISO 14001 QS 9000 Rev. Feb. 2011
