Manufacturable Length (ClearOpening)... Hollow profile frame: 50 kg/pes Z shaped profile frame: 4 2 kg/pes TC Underseeretariat Certifieate Bureau Veritas Türk Loydu

Assembling of Class C 'Iype Door to Panel B- B Section Clear Opening Hole in Panel= Clear Opening + Please check whether panels out correct measurement. Screw on doorframe with/from assembly hole to counterframe by providing tightly connection between doorframe and counter frame. Please check again door leaf is working in good conditions or not. Assembling Rules Check before doorframes set square. Measureframe middle and check whether same with below and upper parts. Please check again distance between door leaf and frame. Put door frame to hole in panel. Fasten door leaf and check it is working...

Assembling ofClass C 'Iype Door to Bulkhead A-A Section Clear Opening Hole in Bulkhead = Clear Opening + 60mm Assembling Rules Please check whether bulkhead out correct measurement. Check steel surfaces whether are in the same plane or not. Spot weld theframe where both long sides middle parts. Measure frame middle and check whether same with below and upper parts. Check before doorframes set square. Fasten door leaf and check it is working good conditions or not. Put doorframe to hole in bulkhead. Spot weldframe to bulkhead where the frames hinged side below and upper parts. Please check distance...

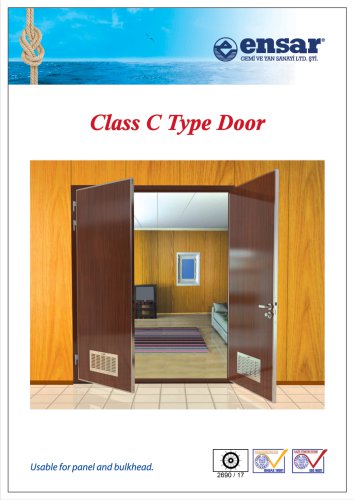

Advantages of Class C Type Door Fast and easy assembling. Handles and rosettes are completelystainless stee/. Plentyof co/or choice. Door leaf supported strong skelton. Standard length manufacturing. Available to produce required dimensions. Producible with kick out panel. PVC surface are covered with a protective film against dirtyand straching. Door surface would be stainless steel, painted or covered PVC. Producible with ventilation gril/.

Assembled to bulkhead with Zshaped profile frame. Door frames coated with electrostatic dry powder painting. Assembled to panel with hollow profile frame. Locks are protected inside with box shaped steel. No hanging down with three hinges. The lines ofdoor leaf ends surrounded stainless steel "U" shaped profile. Hinges areas are supported from inside ofdoor frame. istasyon Mahallesi 1495/2 Sokak No:01 Gebze/Kocaeli Tel: +90 (262) 7421212 (pbx) [email protected]
