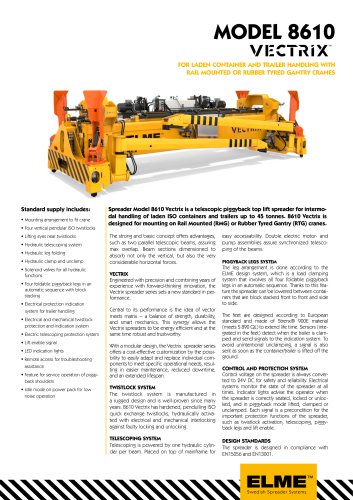

MODEL 8610 FOR LADEN CONTAINER AND TRAILER HANDLING WITH RAIL MOUNTED OR RUBBER TYRED GANTRY CRANES Standard supply includes: . Mounting arrangement to fit crane . Four vertical pendular ISO twistlocks . Lifting eyes near twistlocks . Hydraulic telescoping system . Hydraulic leg folding . Hydraulic clamp and unclamp . Solenoid valves for all hydraulic functions . Four foldable piggyback legs in an automatic sequence with block stacking . Electrical protection indication system for trailer handling . Electrical and mechanical twistlock protection and indication system . Electric telescoping protection system . Lift enable signal . LED indication lights . Remote access for troubleshooting assistance . Feature for service operation of piggyback shoulders . Idle mode on power pack for low noise operation Spreader Model 8610 Vectrix is a telescopic piggyback top lift spreader for intermodal handling of laden ISO containers and trailers up to 45 tonnes. 8610 Vectrix is designed for mounting on Rail Mounted (RMG) or Rubber Tyred Gantry (RTG) cranes. The strong and basic concept offers advantages, such as two parallel telescopic beams, assuring max overlap. Beam sections dimensioned to absorb not only the vertical, but also the very considerable horizontal forces. VECTRIX Engineered with precision and combining years of experience with forward-thinking innovation, the Vectrix spreader series sets a new standard in performance. Central to its performance is the idea of vector meets matrix − a balance of strength, durability, and smart mechanics. This synergy allows the Vectrix spreaders to be energy efficient and at the same time robust and trustworthy. With a modular design, the Vectrix spreader series offers a cost-effective customization by the possibility to easily adapt and replace individual components to meet specific operational needs, resulting in easier maintenance, reduced downtime, and an extended lifespan. easy accessability. Double electric motor- and pump assemblies assure synchronized telescoping of the beams. PIGGYBACK LEGS SYSTEM The leg arrangement is done according to the ELME design system, which is a load clamping system that involves all four foldable piggyback legs in an automatic sequence. Thanks to this feature the spreader can be lowered between containers that are block stacked front to front and side to side. The feet are designed according to European standard and made of Strenx® 900E material (meets S 890 QL) to extend life time. Sensors (integrated in the feet) detect when the trailer is clamped and send signals to the indication system. To avoid unintentional unclamping, a signal is also sent as soon as the container/trailer is lifted off the ground. TWISTLOCK SYSTEM The twistlock system is manufactured in a rugged design and is well-proven since many years. 8610 Vectrix has hardened, pendulling ISO quick exchange twistlocks, hydraulically activated with electrical and mechanical interlocking against faulty locking and unlocking. CONTROL AND PROTECTION SYSTEM Control voltage on the spreader is always converted to 24V DC for safety and reliability. Electrical systems monitor the state of the spreader at all times. Indicator lights advise the operator when the spreader is correctly seated, locked or unlocked, and in piggyback mode lifted, clamped or unclamped. Each signal is a precondition for the important protection functions of the spreader, such as twistlock activation, telescoping, piggyback legs and lift enable. TELESCOPING SYSTEM Telescoping is powered by one hydraulic cylinder per beam. Placed on top of mainframe for DESIGN STANDARDS The spreader is designed in compliance with EN15056 and EN13001.

TECHNICAL SPECIFICATIONS Type of lifting system Four twistlocks or four piggyback legs Normal and block stacking 11 500 kg without extra equipment Lifting capacity (SWL), twistlocks and piggyback 45 tonnes ± 10% eccentric load Lifting capacity (SWL), lifting eyes Telescopic positions Telescoping speed from 20ft-40ft Legs clamping distance, min / max Legs clamping force Legs centre distance Legs unfold Legs fold Hydraulics, operating pressure up to Hydraulics, flow Hydraulics, tank volume Power supply Electrical motors Electric - control voltage Corrosion class Easy access electrical cabinet....
